Cuts and bevels simultaneously
Can follow the ovality of the pipe
Aluminium frame
Can bevel very hard materials

Contact the seller

Technical parameters

Description

Accessories

Technical parameters

Electric version

Table

Model	Clamping range	Radial stroke	Feed per rotation	Motor power	RPM	Voltage	Weight
E-CLAP 01-03	33.4—108 mm	25 mm	0.083 mm	1200 W	33 rpm	230 V / 50 Hz	18 kg
E-CLAP 02-06	50—165 mm	35 mm	0.083 mm	1200 W	21 rpm	230 V / 50 Hz	22 kg
E-CLAP 03-08	67—220 mm	50 mm	0.083 mm	1200 W	16 rpm	230 V / 50 Hz	26 kg
E-CLAP 06-12	152—325 mm	60 mm	0.083 mm	1200 W	12 rpm	230 V / 50 Hz	44 kg
E-CLAP 10-16	254—410 mm	60 mm	0.083 mm	2200 W	14 rpm	230 V / 50 Hz	57 kg
E-CLAP 14-20	338—510 mm	60 mm	0.083 mm	2200 W	11 rpm	230 V / 50 Hz	69 kg
E-CLAP 18-24	443—615 mm	60 mm	0.083 mm	2200 W	11 rpm	230 V / 50 Hz	74 kg
E-CLAP 24-30	596—768 mm	60 mm	0.083 mm	2200 W	10 rpm	230 V / 50 Hz	79 kg
E-CLAP 30-36	757—937 mm	60 mm	0.083 mm	2400 W	11 rpm	230 V / 50 Hz	94 kg
E-CLAP 36-43	895—1095 mm	60 mm	0.083 mm	2400 W	10 rpm	230 V / 50 Hz	180 kg

Pneumatic version

Model	Clamping Range	Radial Stroke	RPM	Motor Power	Air Consumption	Working Air Pressure	Max. Torque	Weight
P-CLAP 01-03	33.4—108 mm	25 mm	48 rpm	0.8 kW	1000 l/min	6–8 bar	47 Nm (6 bar)	18 kg
P-CLAP 02-06	50—165 mm	35 mm	31 rpm	0.7 kW	1300 l/min	6–8 bar	58 Nm (6 bar)	22 kg
P-CLAP 03-08	67—220 mm	50 mm	25 rpm	1.3 kW	1300 l/min	6–8 bar	120 Nm (6 bar)	26 kg
P-CLAP 06-12	152—325 mm	60 mm	24 rpm	1.3 kW	1300 l/min	6–8 bar	158 Nm (6 bar)	44 kg
P-CLAP 10-16	254—410 mm	60 mm	15 rpm	3.1 kW	2800 l/min	6–8 bar	520 Nm (6 bar)	57 kg
P-CLAP 14-20	338—510 mm	60 mm	13 rpm	3.1 kW	2800 l/min	6–8 bar	622 Nm (6 bar)	69 kg
P-CLAP 18-24	443—615 mm	60 mm	14 rpm	3.1 kW	2800 l/min	6–8 bar	600 Nm (6 bar)	74 kg
P-CLAP 24-30	596—768 mm	60 mm	11 rpm	3.1 kW	2800 l/min	6–8 bar	722 Nm (6 bar)	79 kg
P-CLAP 30-36	757—937 mm	60 mm	13 rpm	3.1 kW	2800 l/min	6–8 bar	613 Nm (6 bar)	94 kg
P-CLAP 36-43	895—1095 mm	60 mm	11 rpm	3.1 kW	2800 l/min	6–8 bar	704 Nm (6 bar)	180 kg

Hydraulic version

Model	Clamping Range	Radial Stroke	RPM	Feed per Rotation	Motor Power	Oil Flow	Working Oil Pressure	Max. Torque	Weight
H-CLAP 01-03	33.4—108 mm	25 mm	48 rpm	0.083 mm	1.6 kW	30 l/min	130 bar	47 Nm	18 kg
H-CLAP 02-06	50—165 mm	35 mm	51 rpm	0.083 mm	1.6 kW	30 l/min	130 bar	58 Nm	22 kg
H-CLAP 03-08	67—220 mm	50 mm	31 rpm	0.083 mm	3 kW	30 l/min	130 bar	120 Nm	26 kg
H-CLAP 06-12	152—325 mm	60 mm	24 rpm	0.083 mm	3 kW	30 l/min	130 bar	158 Nm	44 kg
H-CLAP 10-16	254—410 mm	60 mm	15 rpm	0.083 mm	3 kW	30 l/min	130 bar	520 Nm	57 kg
H-CLAP 14-20	338—510 mm	60 mm	13 rpm	0.083 mm	3 kW	30 l/min	130 bar	622 Nm	69 kg
H-CLAP 18-24	443—615 mm	60 mm	14 rpm	0.083 mm	3 kW	30 l/min	130 bar	600 Nm	74 kg
H-CLAP 24-30	596—768 mm	60 mm	11 rpm	0.083 mm	3 kW	30 l/min	130 bar	722 Nm	79 kg
H-CLAP 30-36	757—937 mm	60 mm	13 rpm	0.083 mm	3 kW	30 l/min	130 bar	613 Nm	94 kg
H-CLAP 36-43	895—1095 mm	60 mm	11 rpm	0.083 mm	3 kW	30 l/min	130 bar	704 Nm	180 kg

LITERING

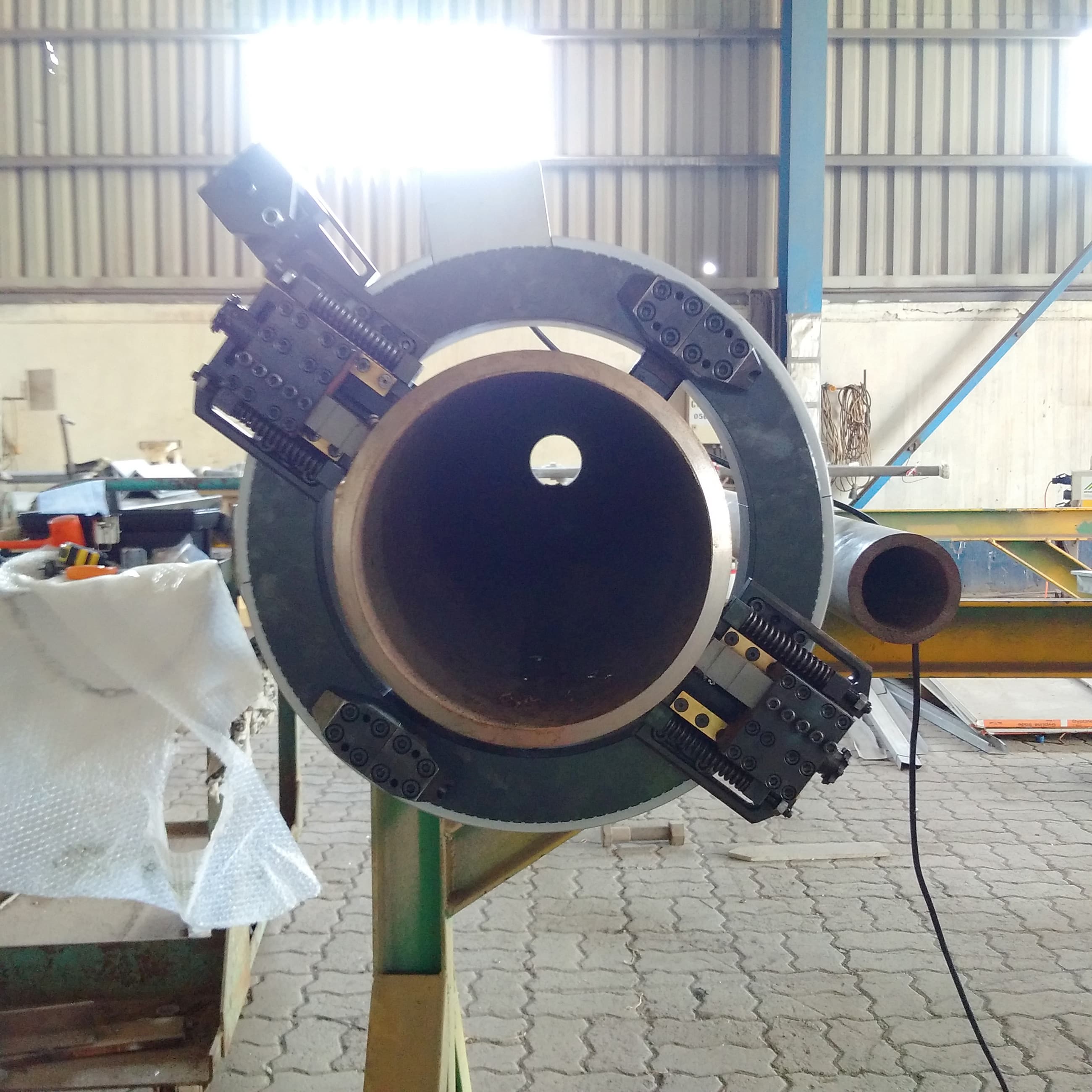

The LITERING is a lightweight cutting and bevelling machine which, like all other machines in the "bevelling and cutting" range, is clamped on pipes.

It can cut and then bevel pipes with diameters from 23 to 937 mm. In the case of pipe wall thicknesses up to 25 mm, both operations can be carried out simultaneously using combination knives.

Thanks to the aluminium frame body, it has a significantly reduced weight while maintaining sufficient rigidity for machining pipes with common wall thicknesses.

A great advantage of the circular frame concept is the possibility of mounting the machine on the line (the frame can be divided into two C segments).

In confined spaces, the motor can be rotated by 90° using a corner adapter (special accessory).

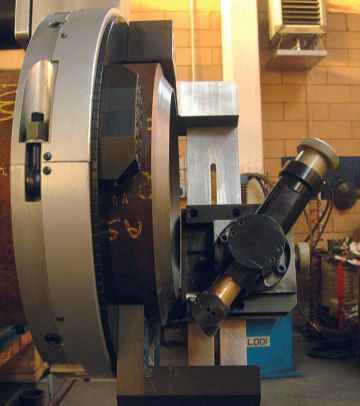

The cross arm (special accessory) increases the rigidity of the frame and allows the beveling of pipes with greater wall thickness or longer internal ramps.

The LITERING can also be equipped with copying knife holders (so-called dancers), which allow bevels and tubes with significant ovality to be made.

Depending on the size, LITERING is available with electric, pneumatic or hydraulic drive.
