PNEU
MILLGRIP
without pipe diameter limitation
mechanical cutting
precise cutting
wall thickness up to 45 mm
highly stable
Technical parameters
Clamping range: | 406—3048 mm |
|---|---|
Orbital shift rate: | 214 mm/min |
Motor power: | 3100 W |
Cutting speed: | 220 m/min |
Air consumption: | 2800 l/min |
Air working pressure: | 6 bar |
Cutting disc (Ø): | 160 mm |
Max. machinable thickness: | 45 mm |
Weight: | 120 kg |
Cutting speed - idling: | 312 - 450 rpm |
MILLGRIP

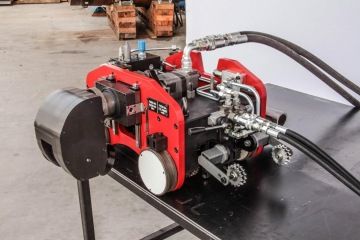

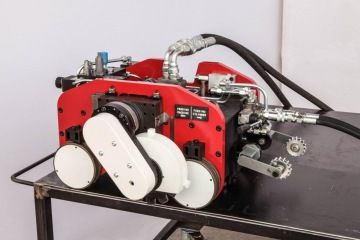

MILLGRIP introduces a new generation of chain-driven beveling and cutting machines. With cold cutting, MILLGRIP produces perfectly clean and smooth cuts without hardening of the material on pipes up to 45 mm thick.

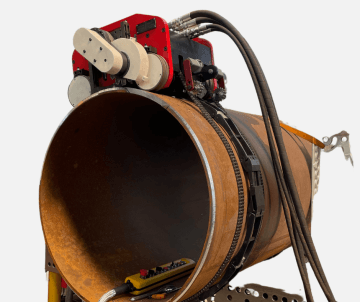

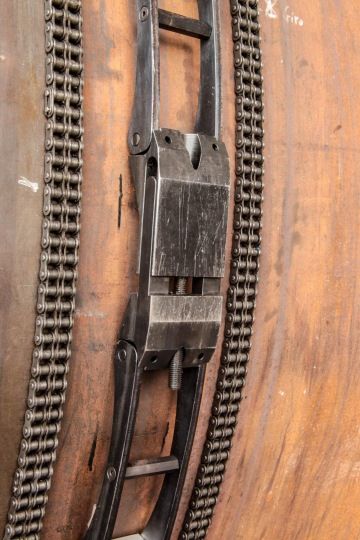

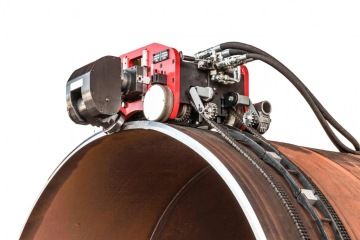

Thanks to the unique combination of a chain drive and four rubber wheels, the cutting unit moves stably around the circumference of the pipe and cuts it. MILLGRIP is able to cut pipes with diameters from 406.4 to 3 048 mm in this way.
OPTIONAL ACCESSORIES
carbide insert for pipe cutting
milling head for pipe bevels
carbide insert for pipe bevelling
extension of the guide chain
AlternativE produCTS
LITERING
➜ 10 models according to size
➜ Cuts and bevels simultaneously
➜ Can follow the ovality of the pipe - deviations, unevenness
➜ Aluminium frame
➜ Can bevel very hard materials
SOLIDRING
➜ Large range
➜ Cuts and bevels simultaneously
➜ Can follow the ovality of the pipe
➜ Strong steel frame
➜ Can cut and bevel any material
XYANT
➜ For large diameter pipes
➜ Very high performance
➜ Unlimited wall thickness
➜ For all bevel types
