HYDRO
XYANT
for large diameter pipes
very high performance
unlimited wall thickness
for all bevel types
Technical parameters
Model: | XYANT 60 - 72 | XYANT 72 - 84 | XYANT 84 - 96 |
|---|---|---|---|
Clamping range: | 1524—1828 mm | 1828—2133 mm | 2133—2438 mm |
Radial shift: | 70 mm | 70 mm | 70 mm |
RPM: | |||
Depth of cut/rev: | 0.2 mm/rev | 0.2 mm/rev | 0.2 mm/rev |
Motor power: | 25000 W | 25000 W | 25000 W |
Oil flow: | 60 l/min | 60 l/min | 60 l/min |
Oil working flow | 120 bar | 120 bar | 120 bar |
Weight: | 1550 kg | 1750 kg | 1930 kg |
XYANT

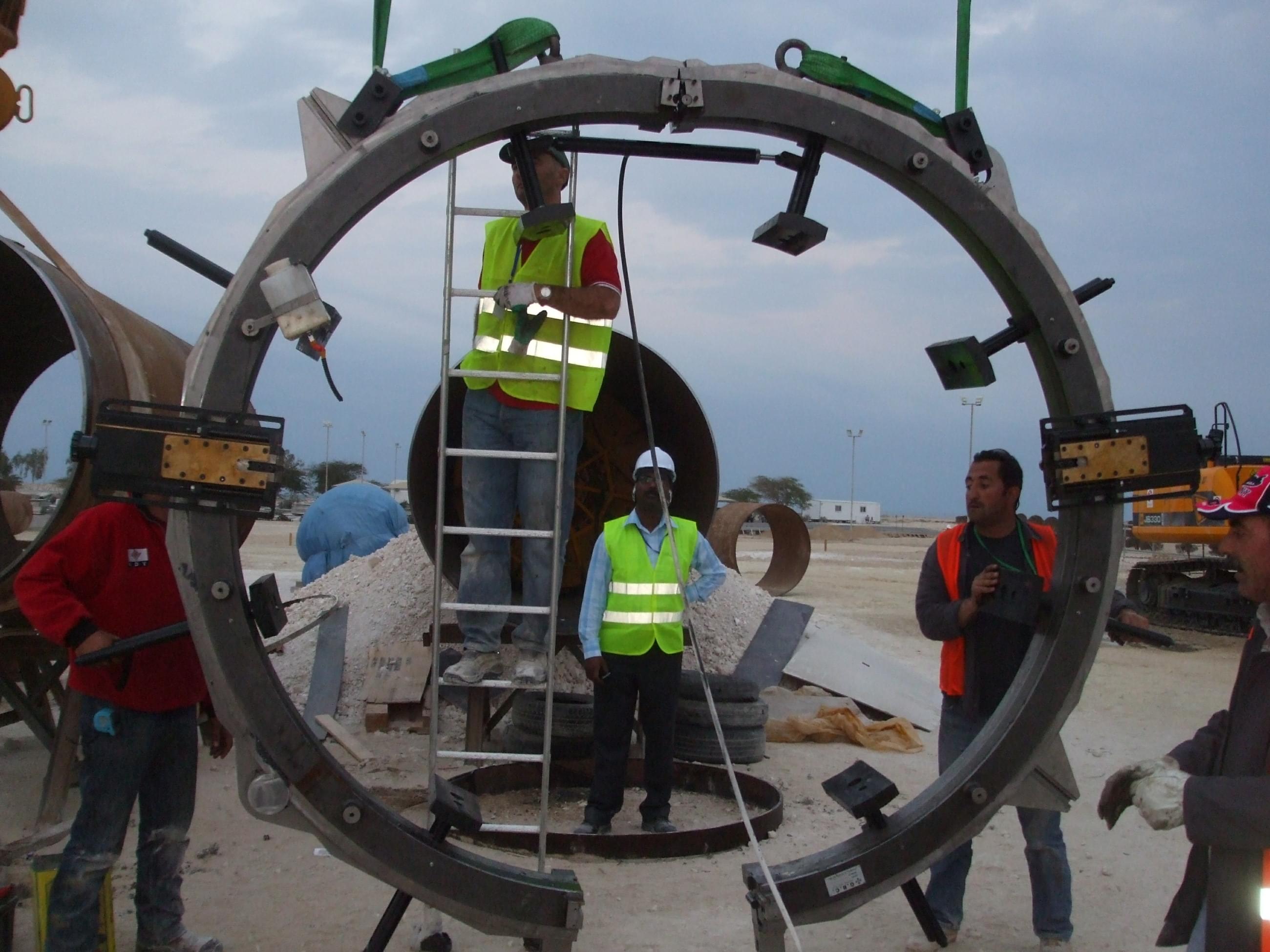

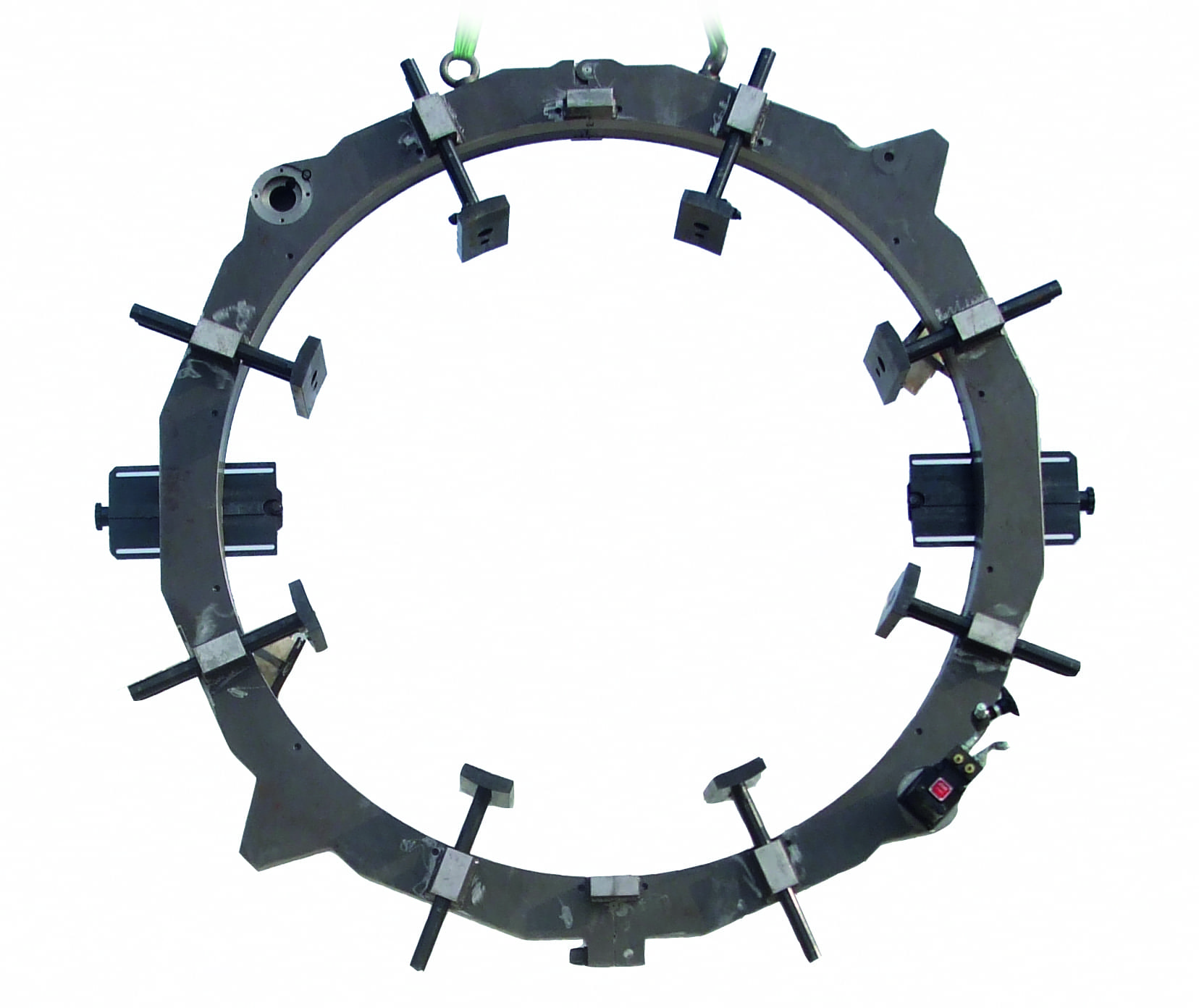

XYANT is the largest hydraulically driven beveller in the "cutting and bevelling" category. It is capable of cutting and beveling pipes with diameters from 1 524 to 2 438 mm. It is clamped to the pipe from the outside, just like the other machines in this series.
XYANT is capable of cutting and beveling pipes of any thickness. If the pipe thickness is less than 25 mm, cutting and beveling can be performed simultaneously using a combination knife.
The XYANT is equipped with two tool holders which, thanks to a spring, follow the surface of the pipe and thus compensate for any ovality.
With special accessories, this machine can be used to prepare for almost any welding operation.
XYANT is equipped with a hydraulic drive.
