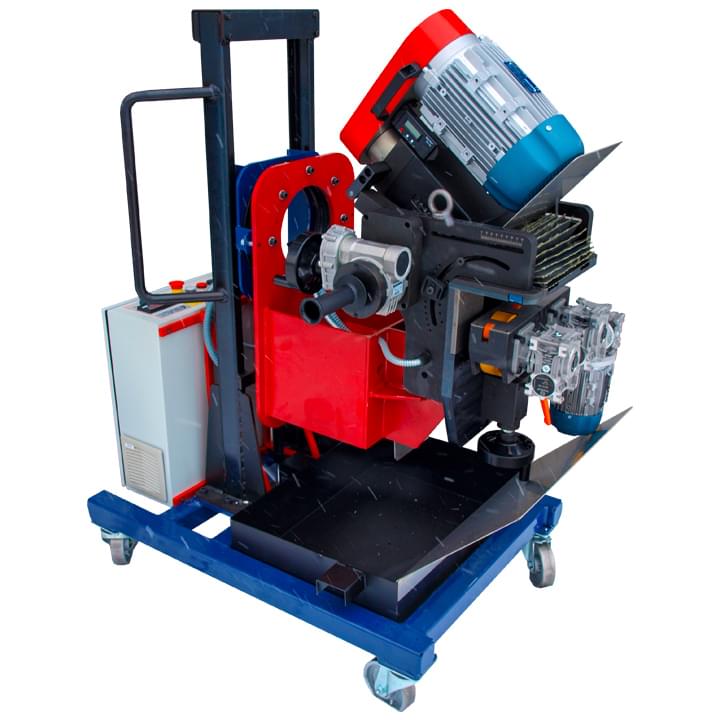

ULTRAMILL ROTO

  • Mobile versatile machine with exceptional performance

  • Bevelling of even very hard alloys including Hardox and Duplex

  • Adjustable for beveling both top and bottom sides

  • Beveling at any angle, including J-bevel

  • Automatic feeding system

  • Smooth speed control of the tool

  • Smooth feed rate control

Technical parameters

Maximum bevel width:

80 mm

Bevelling angle:

0°–90°

Plate thickness:

6—120 mm

Bevelling speed:

0—1,5 m/min

Motor Power:

4 kW

Motor idle speed:

300—1500 rpm

Voltage:

400 V/50 Hz

Tooling:

80 mm diameter milling heas - 9 inserts

Net weight of the machine:

340 kg

ULTRAMILL ROTO

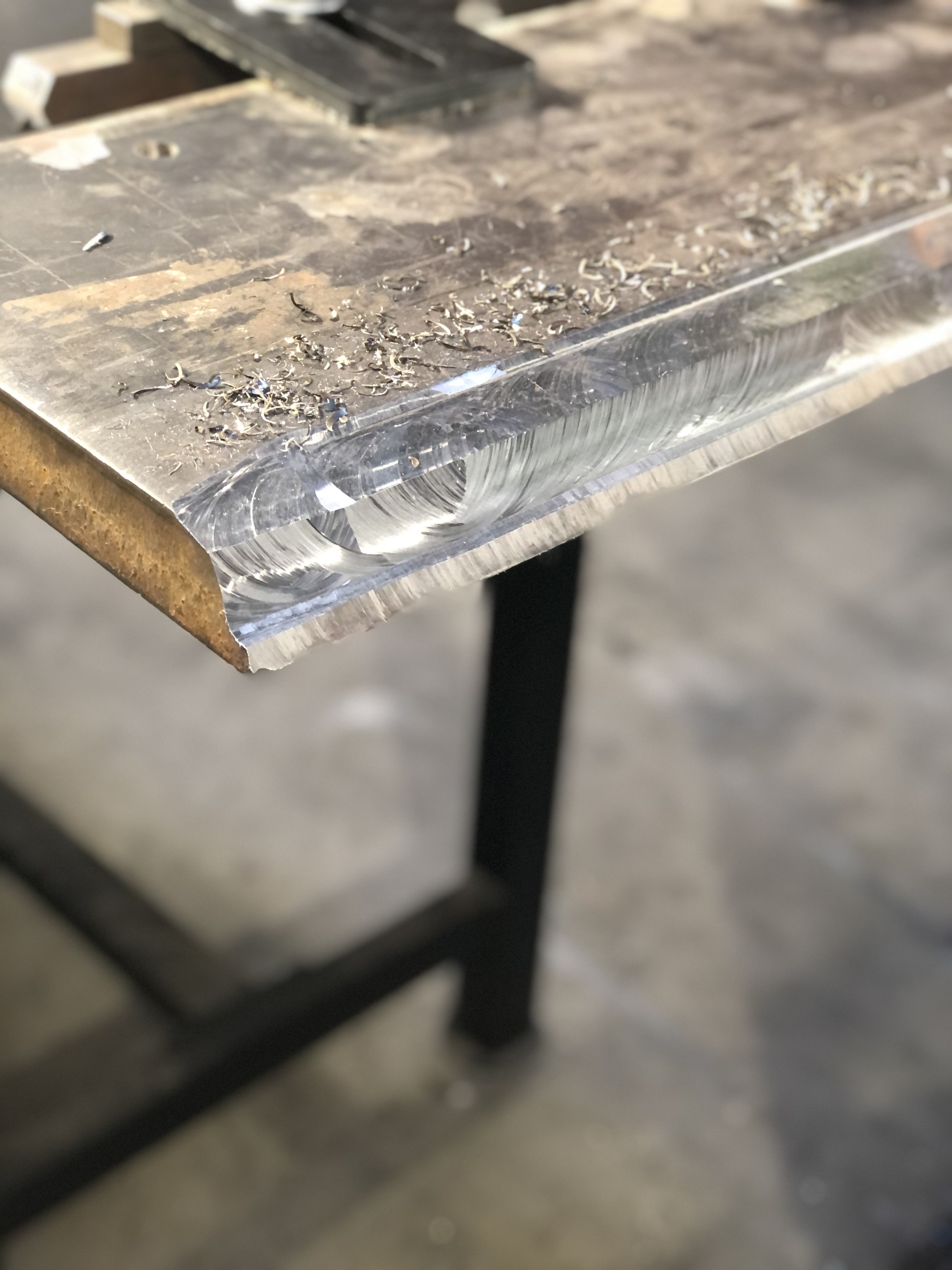

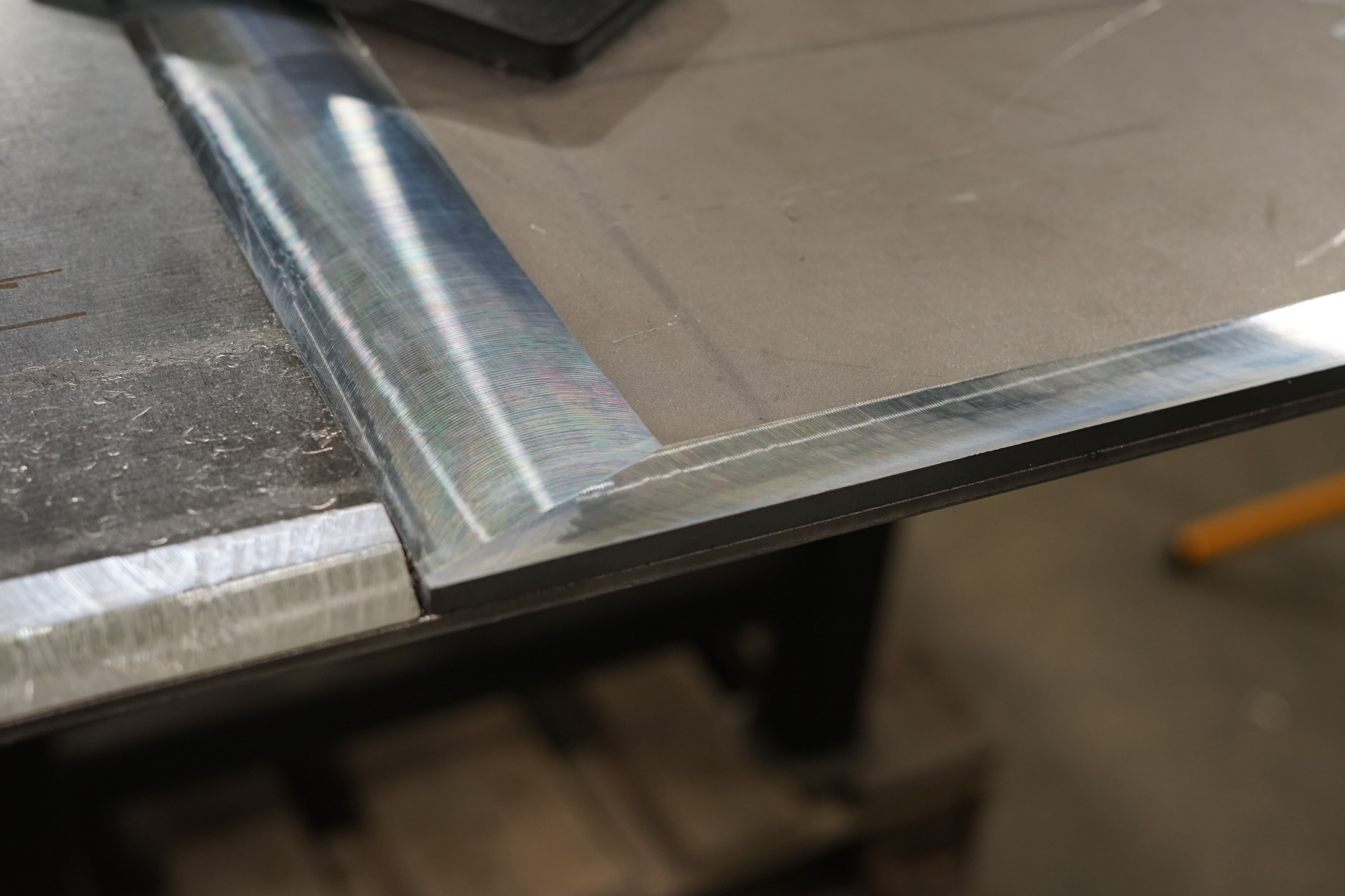

Versatile and extremely powerful plate beveling machine equipped with its own feed system and the ability to bevel both the upper and lower sides of the plate. The ULTRAMILL ROTO features a high-speed rotary milling cutter fitted with nine carbide inserts, capable of beveling not only ordinary steels but also the hardest materials, including Hardox, Weldox, Inconel, and titanium.

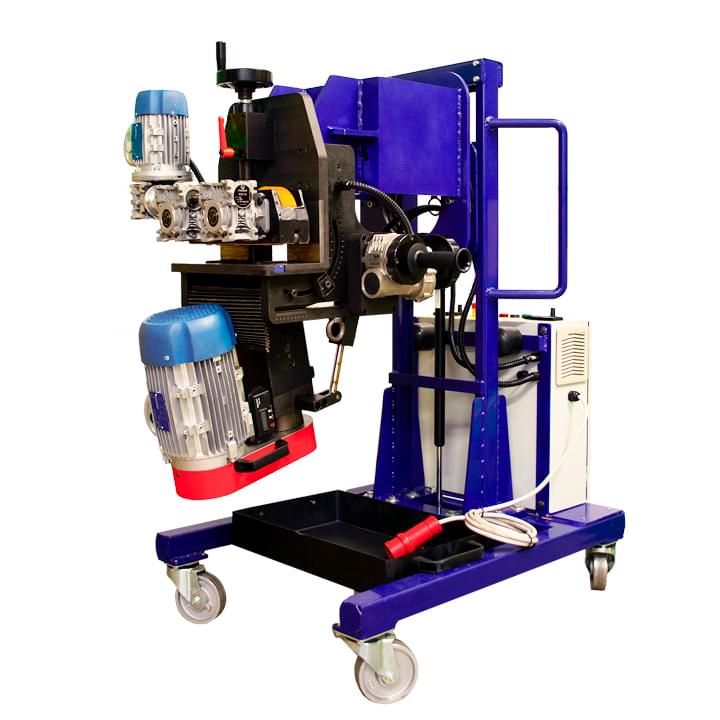

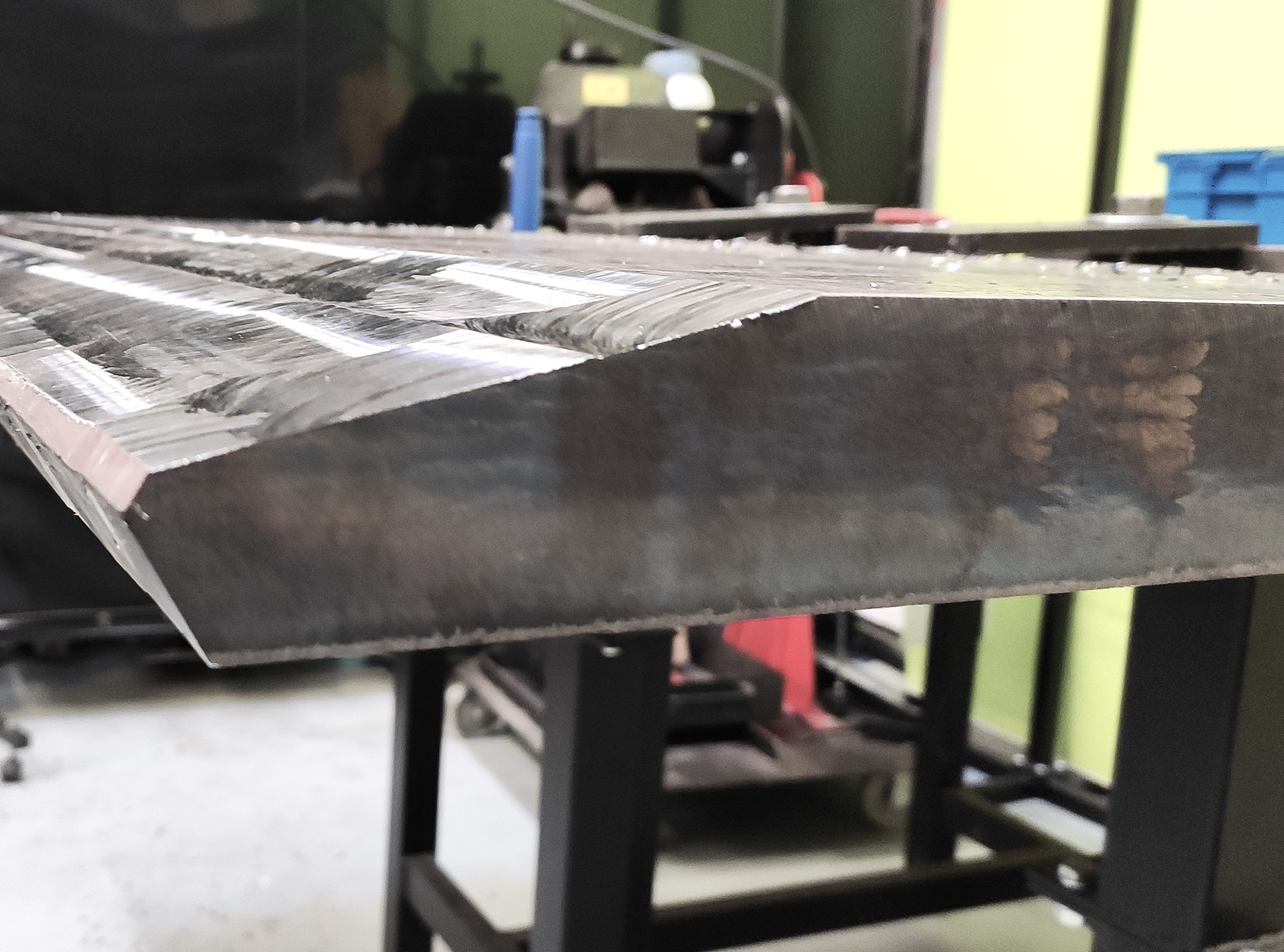

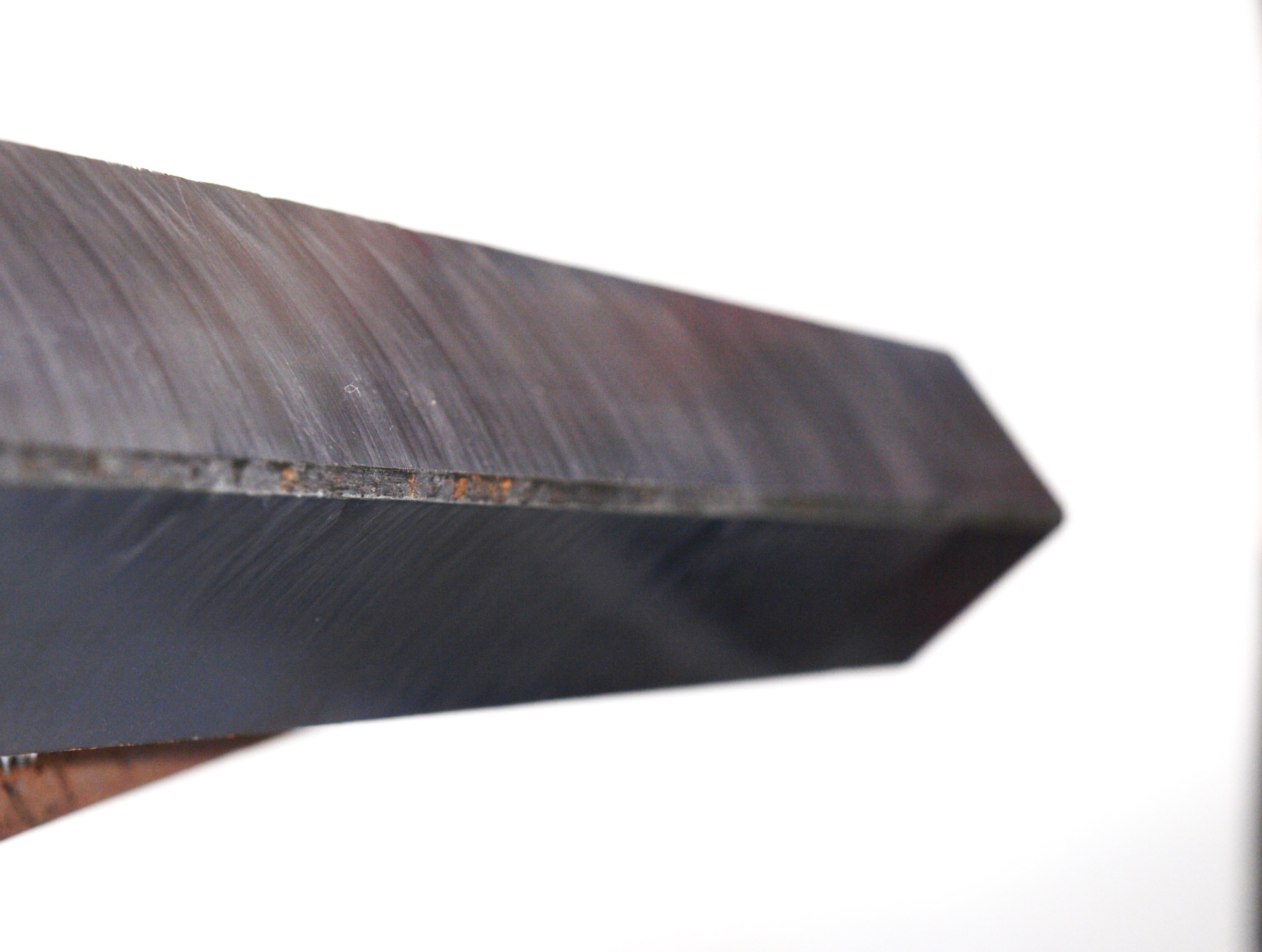

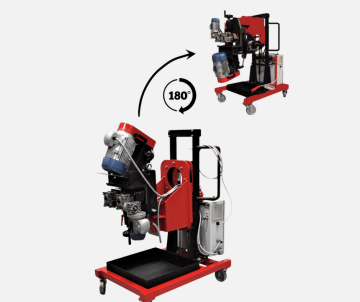

The ULTRAMILL ROTO is designed primarily for applications that require beveling on both the top and bottom sides of the plate. Thanks to its rotating system, the entire machining unit can be rotated to create bevels for X and K weld preparations without the need to handle or flip the material. The machine can process plates from 6 to 120 mm in thickness, with a maximum bevel width of 80 mm. The bevel angle is easily adjustable from 0° to 90° by tilting the entire milling unit.

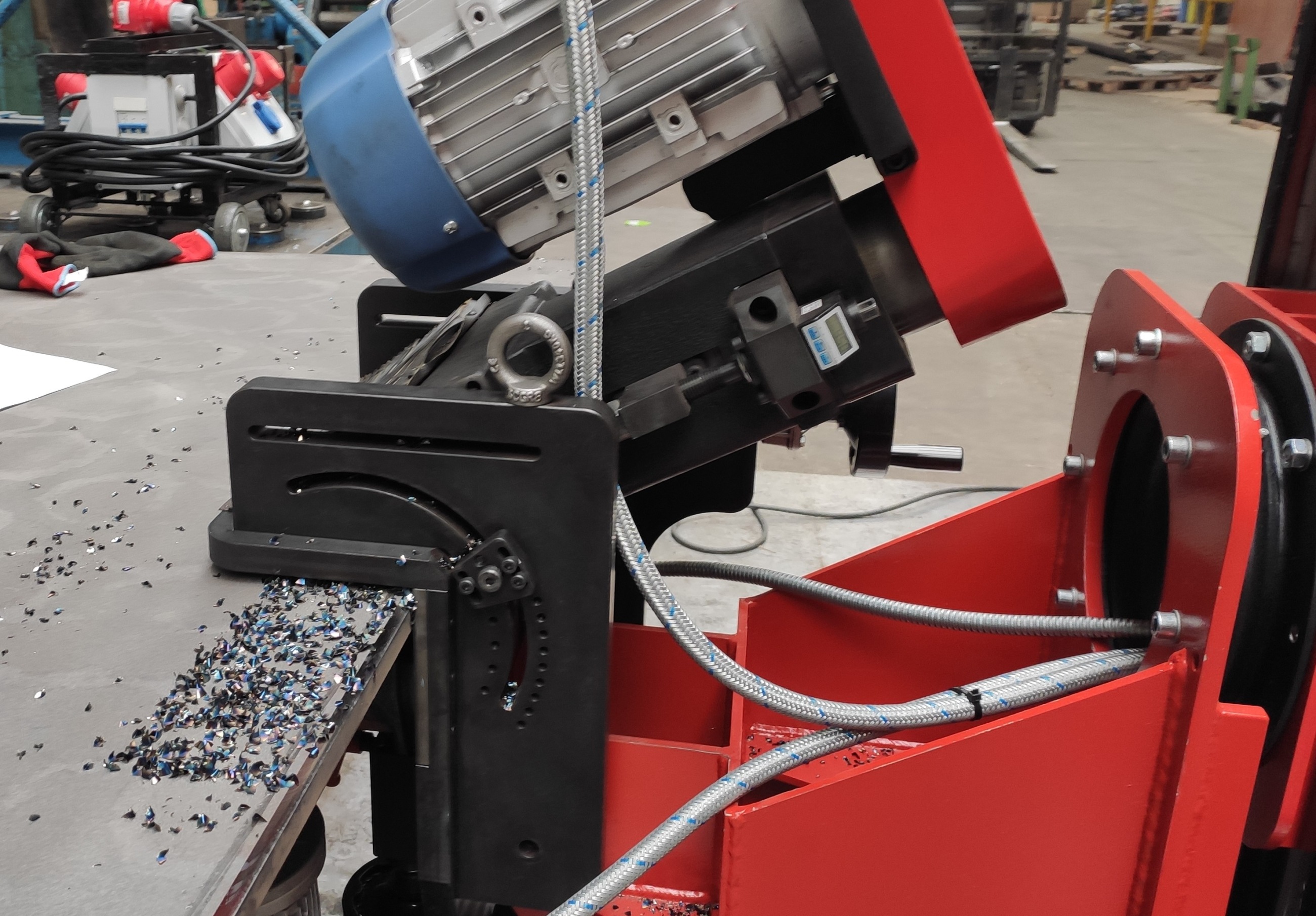

The ULTRAMILL ROTO is ideal for beveling straight edges, facing, and milling off surface layers. It can also bevel certain curved edges, particularly those with larger radii, such as concave shapes. Additionally, it can create a chamfered edge at a 30° angle. The machine moves smoothly along the plate at an adjustable speed via two powered drive wheels.

Thanks to the height adjustment system with gas struts, the machine automatically adapts to the plate's height as it travels, ensuring a consistent working plane. It is also equipped with a sensor that automatically stops the milling cutter rotation at the end of the plate.

For easy operation, the ULTRAMILL ROTO is fitted with a control panel.

Optional Accessories

  • Portable table with a ball track

  • Roller supports

  • Magnetic chip collector
