ELEKTRO • PNEU • HYDRO

TOPTORQ

  • High torque

  • For challenging work

  • Fast

  • Large range

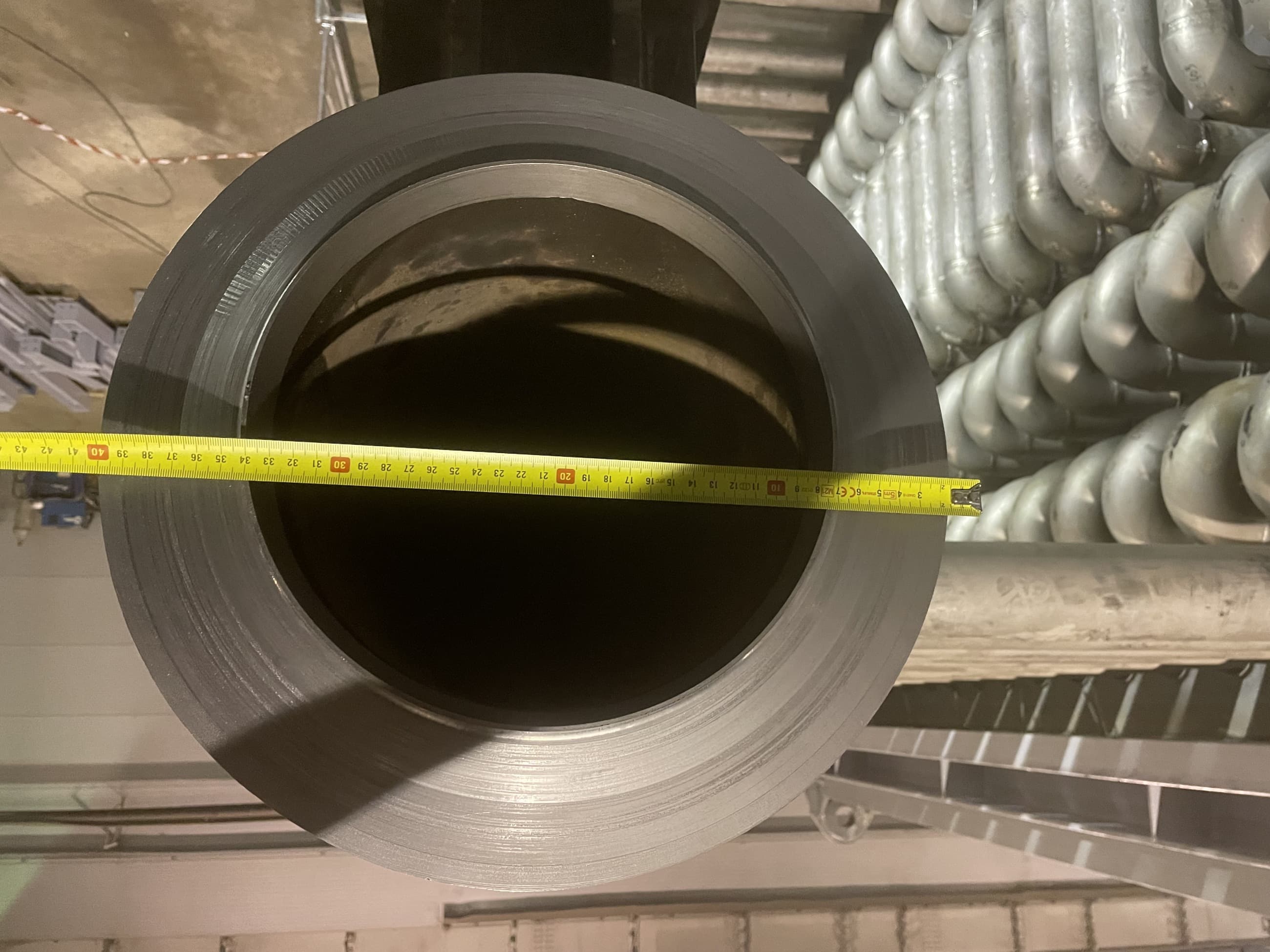

  • Bevels pipes with very thick walls

Technical parameters

Electric version

Inner diameter of the pipe:

180—504 mm

Diameter of the plate:

550 mm

Lift:

50 mm

Head speed:

18 rpm

Motor Power:

2400 W

Voltage:

230 V/50 Hz

Max. noise level:

75 dB

Weight:

245 kg

Pneumatic version

Inner diameter of the pipe:

180—504 mm

Diameter of the plate:

550 mm

Lift:

50 mm

Head speed:

11 rpm

Motor Power:

2940 W

Air consumption:

2690 l/min

Air pressure:

6 Bar

Connection:

3/4"

Max. noise level:

75 dB

Weight:

245 kg

Hydraulic version

Inner diameter of the pipe:

180—504 mm

Diameter of the plate

550 mm

Lift:

50 mm

Head speed:

15 rpm

Motor Power:

5000 W

Oil flow:

30 l/min

Oil pressure:

100 Bar

Max. noise level:

75 dB

Weight:

245 kg

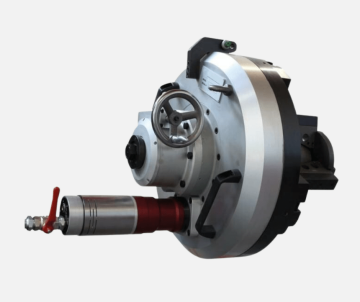

TOPTORQ

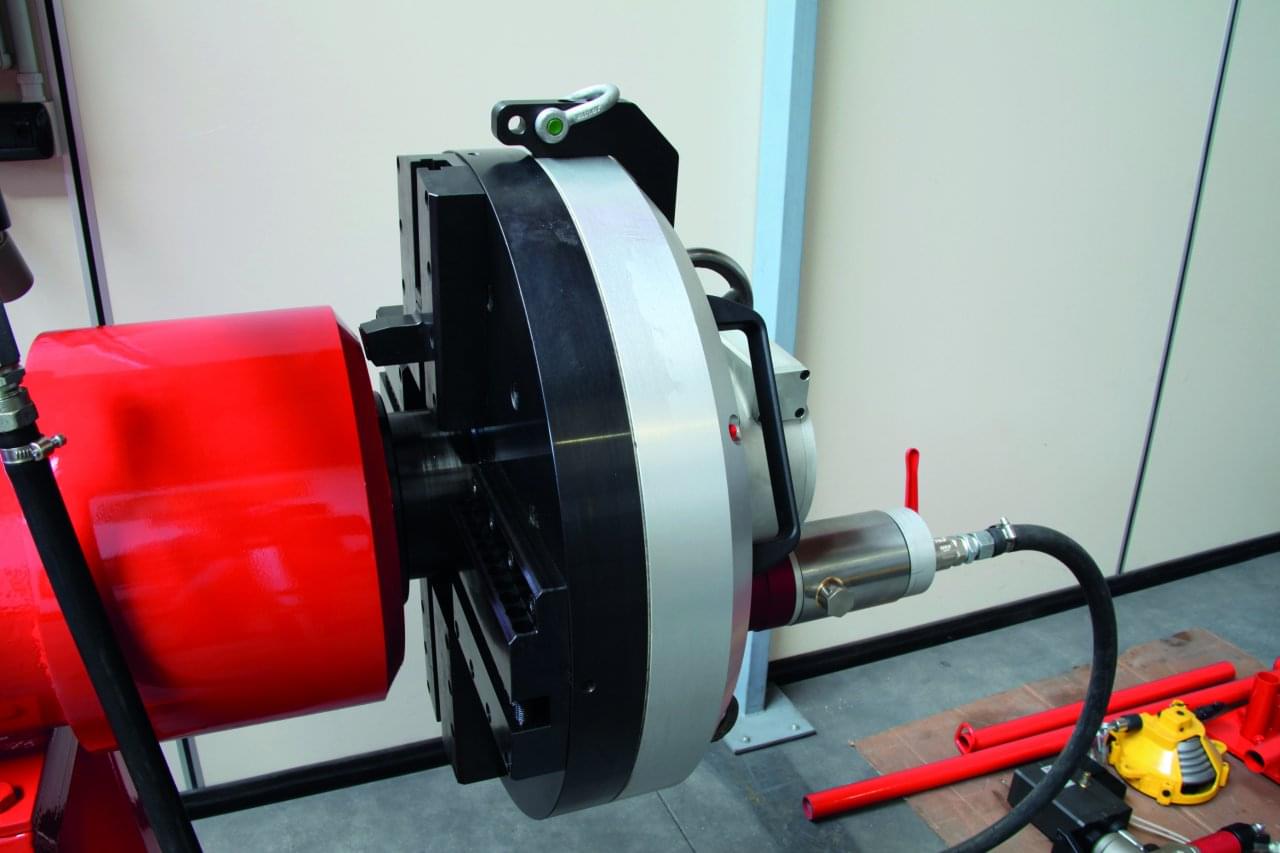

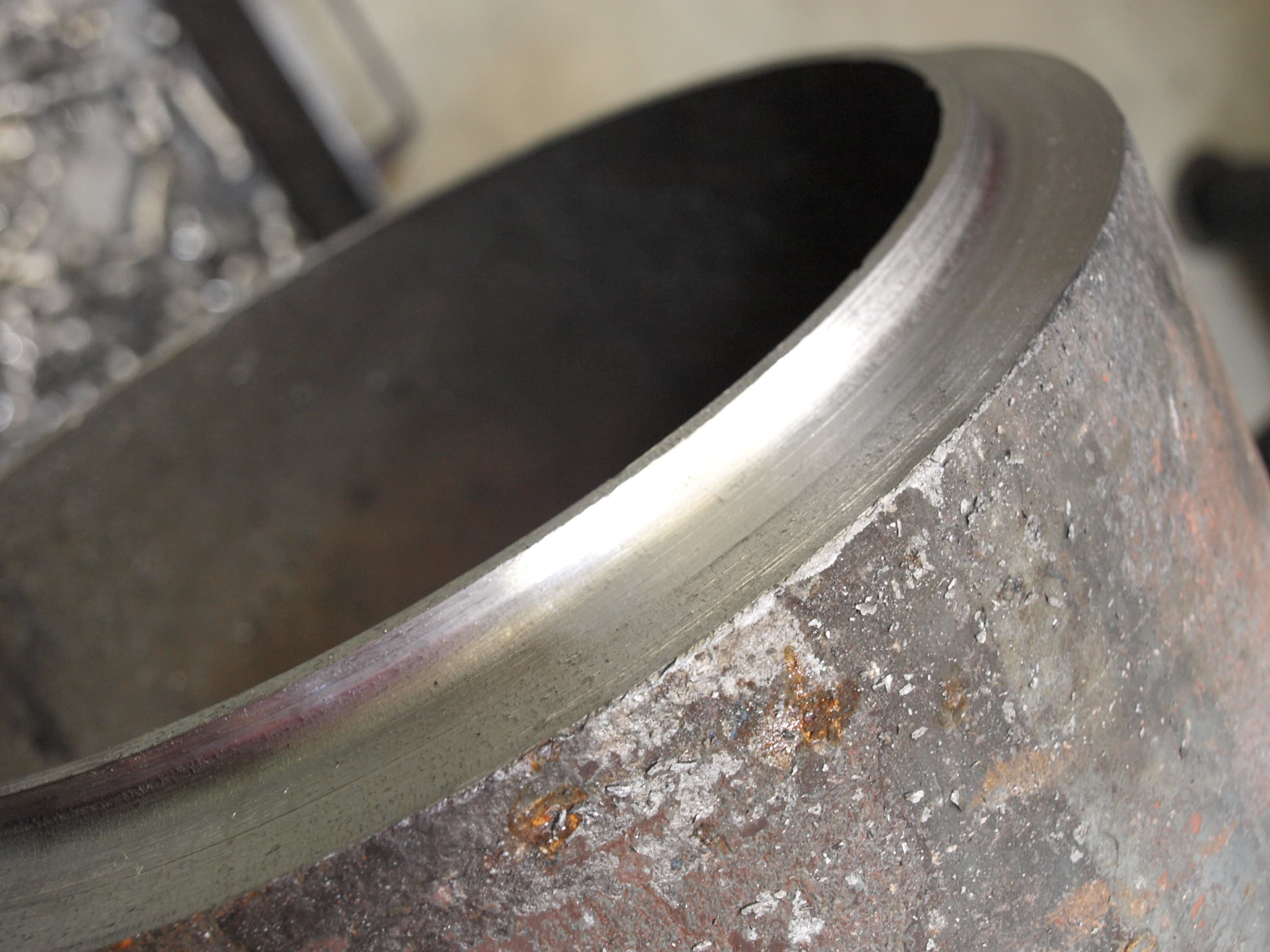

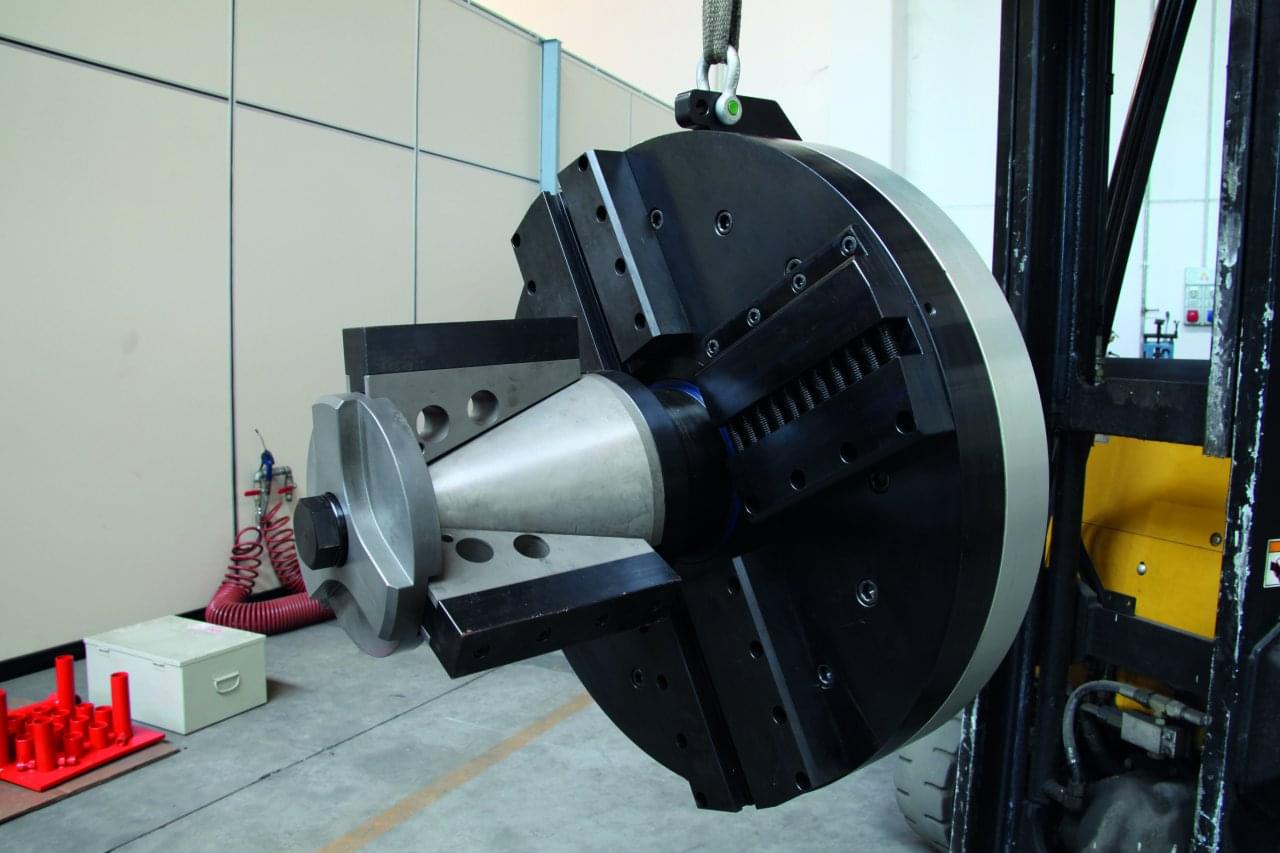

TOPTORQ is an extremely strong chamfering machine with internal clamping and axial feed. It is designed for chamfering pipes with diameters from 180 to 504 mm (up to 590 mm in case of using an extended shaft), where thanks to the blade system it can simultaneously perform chamfering of the outer and inner edge and alignment of the face.

A special feed-in system allows very fine and precise feed by means of a geared steering wheel.

For most common operations such as tulip and compound bevels and boring, the blades are available as standard stock. For special applications, blades can be made to customer requirements.

The TOPTORQ beveling machine is available with pneumatic or hydraulic propulsion.

Optional accessories

  • possibility to extend the working range of the machine up to 630 mm

  • quick-release insert holders (face and angle)

  • hydraulic central unit for hydraulic variant

  • bevelling blade 37,5°

  • frontal blade

Alternative products

ULTRATORQ

ULTRATORQ

➜ ID 465-937 mm (extendable up to 1016 mm)
➜ For all types of materials
➜ Semi-automated clamping system
➜ Can bevel oval tubes


PLOHMAX

PLOHMAX

➜ ID 94.5-318.5 mm (extension up to 418 mm)
➜ For very hard materials
➜ Fast and strong
➜ Ideal for the petroleum and chemical industries


LITERING

LITERING

➜ 10 models according to size
➜ Cuts and bevels simultaneously
➜ Can follow the ovality of the pipe - deviations, unevenness
➜ Aluminium frame
➜ Can bevel very hard materials
