PNEU • HYDRO
ULTRATORQ
Maximum range 937 mm
Suitable for all kinds of materials
Fast and effective
Semi-automated clamping system
Suitable for oval tubes
Technical parameters
Inner diameter of the pipe: | 465—937 mm |
|---|---|
Lift: | 100 mm |
Head speed: | 6 rpm |
Motor Power: | 3100 W |
Air consumption: | 2800 l/min |
Air pressure: | 6 Bar |
Connection: | 3/4" |
Max. noise level: | 75 dB |
Weight: | 870 kg |
Inner diameter of the pipe: | 465—937 mm |
|---|---|
Lift: | 100 mm |
Head speed: | 14 rpm |
Motor Power: | 9500 W |
Oil flow: | 64 l/min |
Oil pressure: | 140 Bar |
Max. noise level: | 75 dB |
Weight: | 870 kg |
ULTRATORQ

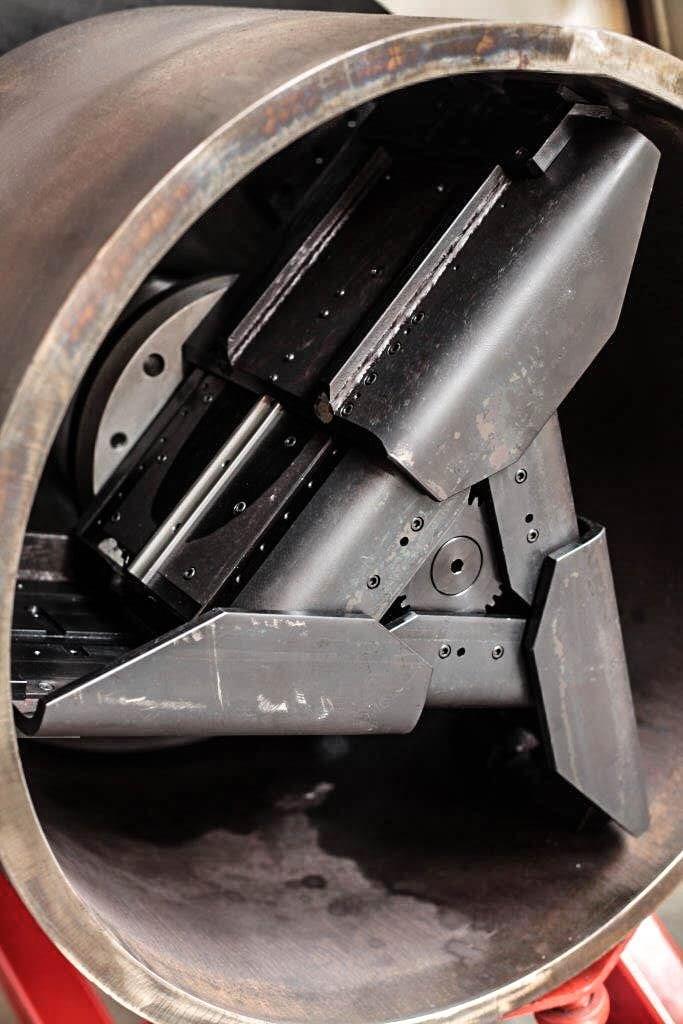

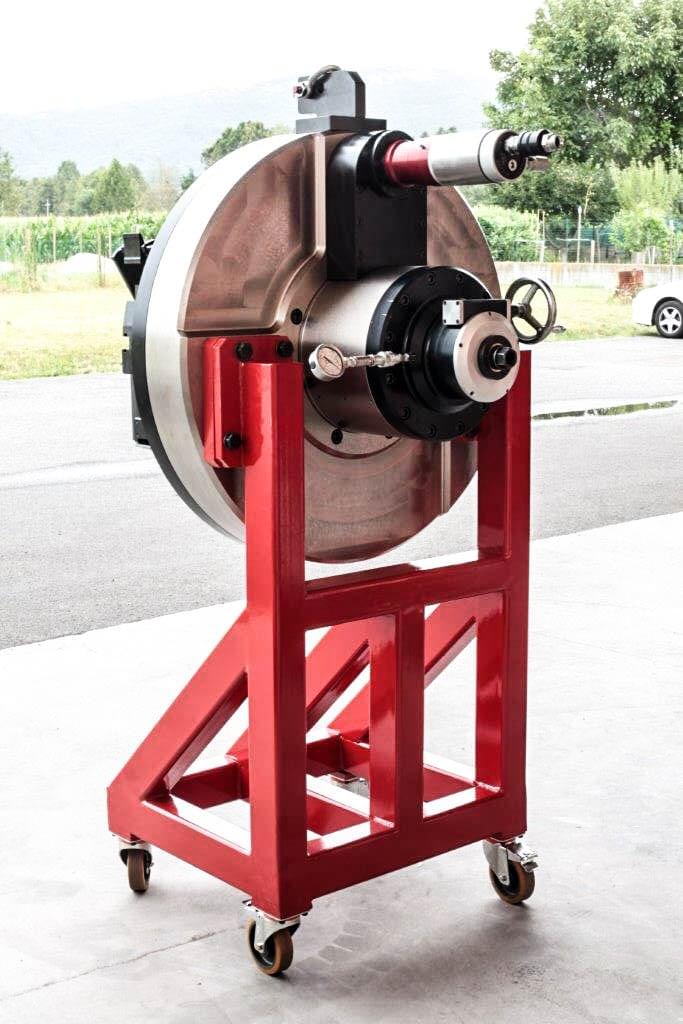

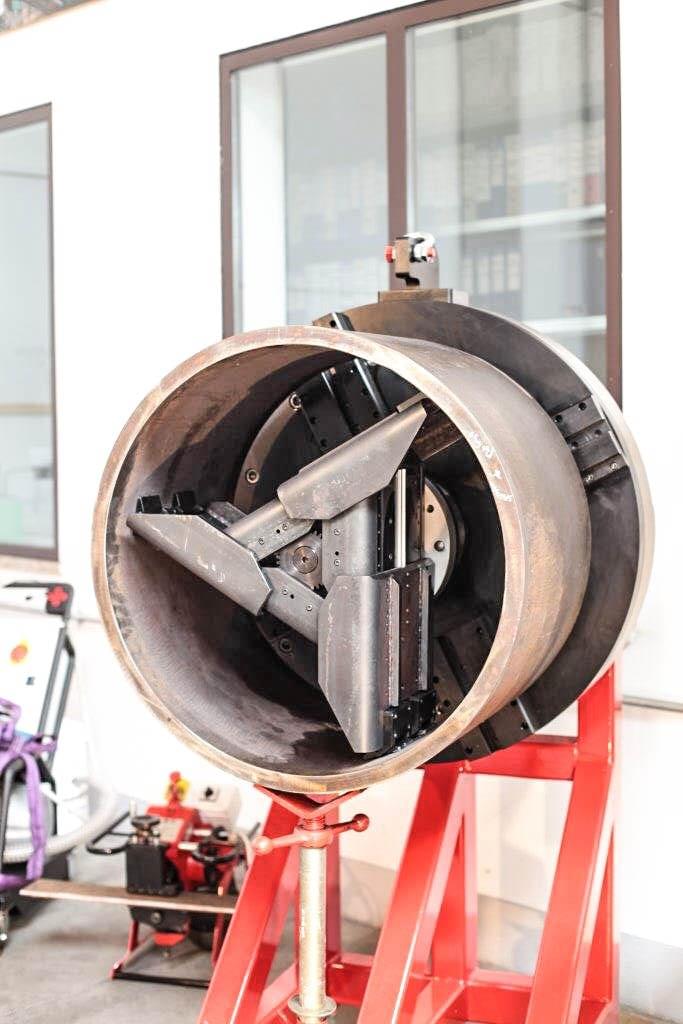

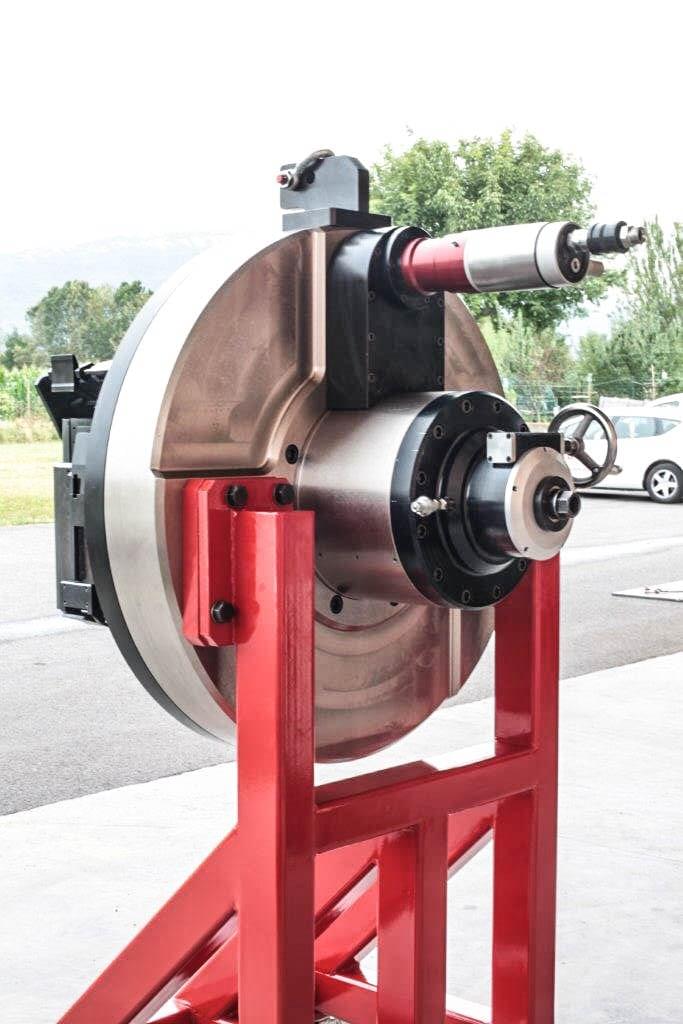

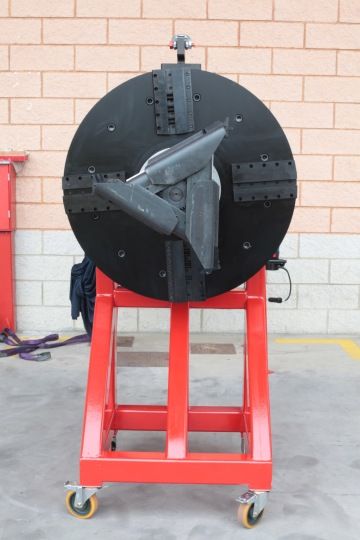

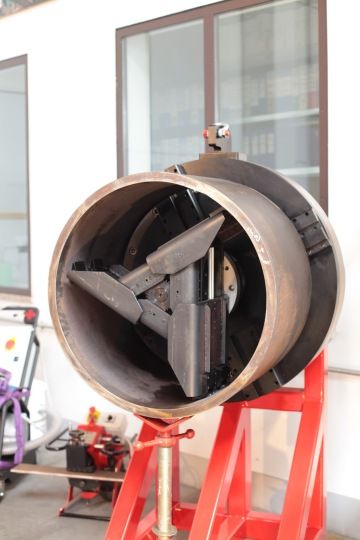

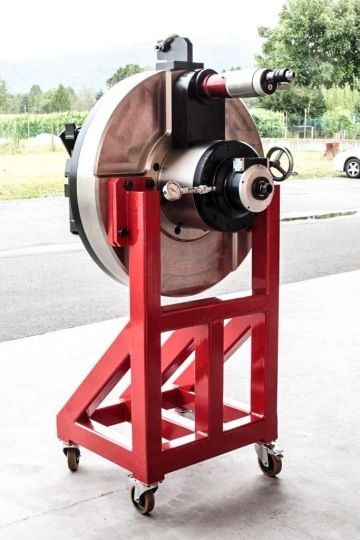

The ULTRATORQ is the latest and most powerful in the line of tube bevelers. It takes advantage of all the benefits of internal clamping bevelers, yet is capable of beveling pipe up to 937 mm in diameter! Like all the other bevelers in this range, it can perform both internal and external beveling and face alignment simultaneously.
The ULTRATORQ can perform the same operations as the smaller bevelers in this series and, thanks to a special cutter, it can also bevel oval pipes or pipes with uneven surfaces. Cutters for most common operations including tulip bevels are available as standard from stock. In case of special requirements or operations, knives can be produced exactly to customer's specifications.
The ULTRATORQ beveling machine is available with pneumatic or hydraulic propulsion.
Optional accessories
quick-release insert holders (face and angle)
hydraulic control unit for hydraulic variant
bevelling blade 37,5°
frontal blade
knife for tulip bevel
