PLOHMAX
Efficient
Fast
Smooth bevelled surface
Bevels hard materials
Use in the petroleum and chemical industries
Technical parameters
Inner diameter of the pipe: | 94.5—318.5 mm |
|---|---|
Diameter of the plate: | 330 mm |
Lift: | 50 mm |
Head speed: | 17 rpm |
Motor Power: | 2200 W |
Voltage: | 230 V/50 Hz |
Max. noise level: | 75 dB |
Weight: | 80 kg |
Inner diameter of the pipe: | 94.5—318.5 mm |
|---|---|
Diameter of the plate: | 330 mm |
Lift: | 50 mm |
Head speed: | 19 rpm |
Motor Power: | 2200 W |
Air consumption: | 2000 l/min |
Air pressure: | 6 Bar |
Connection: | 3/4" |
Max. noise level: | 75 dB |
Weight: | 80 kg |
Inner diameter of the pipe: | 94.5—318.5 mm |
|---|---|
Diameter of the plate: | 330 mm |
Lift: | 50 mm |
Head speed: | 18 rpm |
Motor Power: | 5000 W |
Oil flow: | 30 l/min |
Oil pressure: | 100 Bar |
Max. noise level: | 75 dB |
Weight: | 80 kg |
PLOHMAX

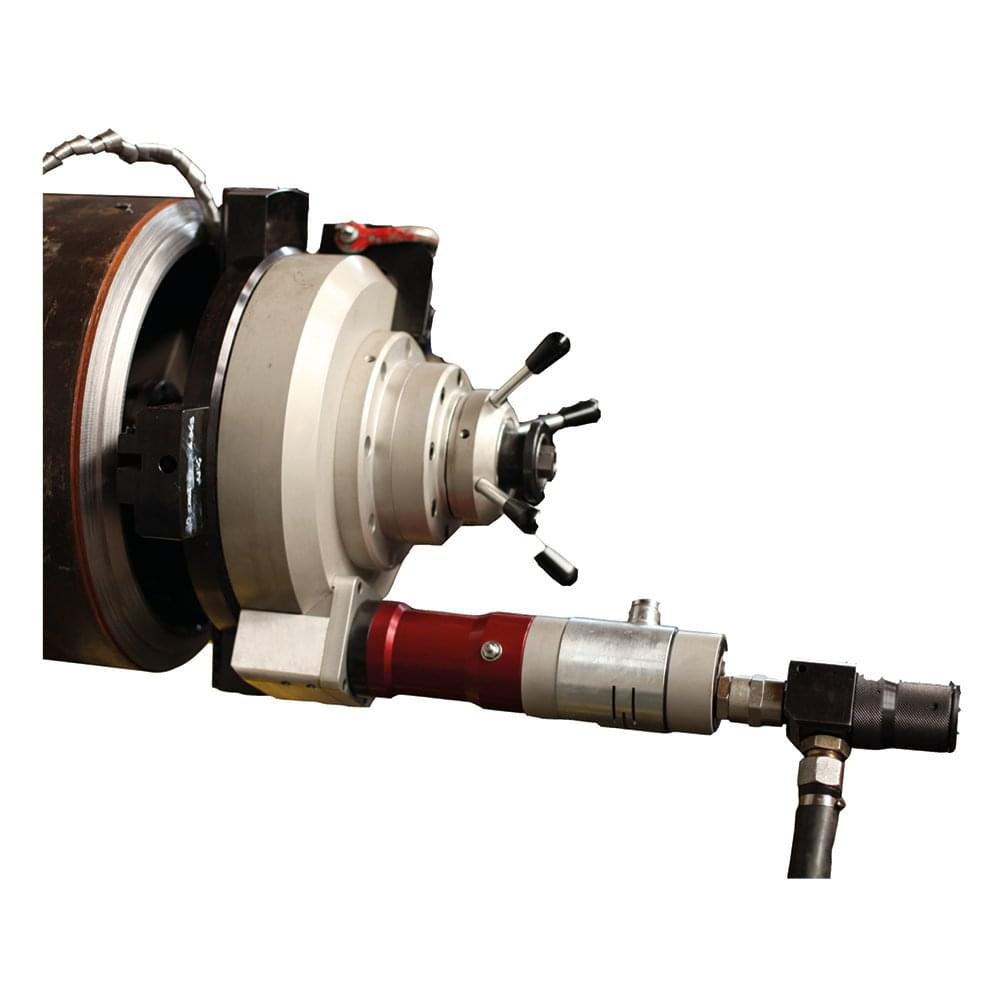

PLOHMAX is an extremely powerful beveling machine that allows to work on extreme wall thicknesses and special materials. This model is most commonly used in the energy and chemical industries.

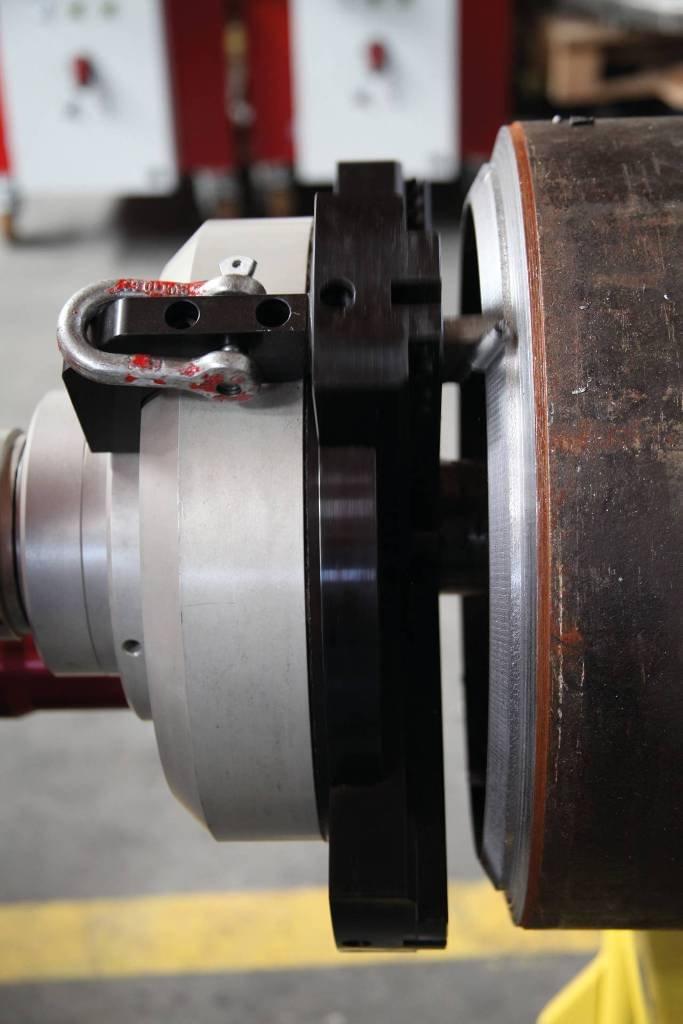

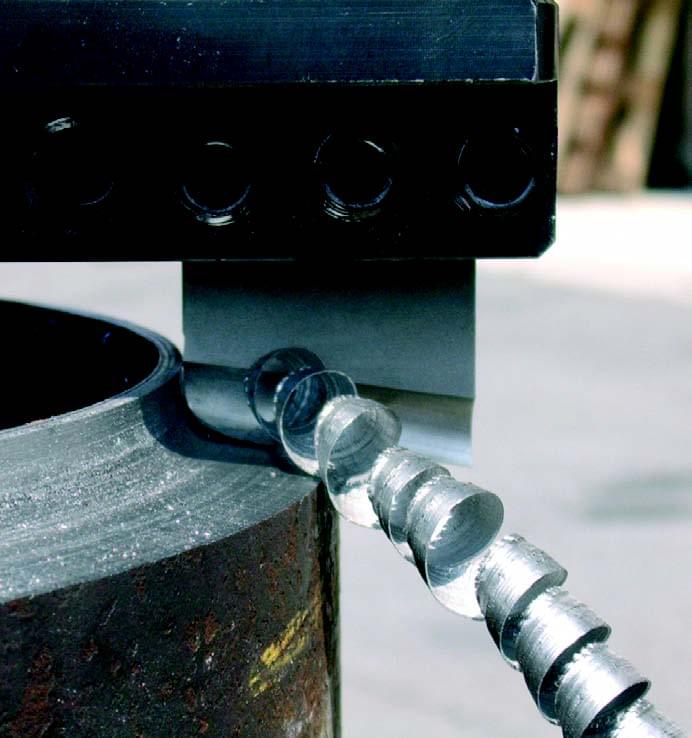

The machine is clamped into the pipe by means of three needle jaws ranging from 94.5 mm to 318.5 mm. The clamping range can be extended up to 426 mm if required. Both external and internal bevels and face alignment can be performed in one step. Tulip bevels, compound bevels, tube wall calibration and more can be performed depending on the selected blades.
For most common operations, knives are available in stock as standard; if special requirements are needed, custom knives can be manufactured. The PLOHMAX beveling machine is available with electric, pneumatic or hydraulic propulsion.
Optional accessories
Possibility to extend the working range of the machine up to 426 mm
Quick-release insert holders (face and angle)
Hydraulic control unit for hydraulic variant
Bevelling blade 37,5°
Frontal blade
