ELEKTRO • PNEU • PNEU + AUTOLOCK
SHAVEDGER
The strongest light beveling machine
Large range
Bevels various materials
Forehead alignment, external, internal bevel
Handles multiple bevel types in one step
Technical parameters
Inner diameter of the pipe: | 49—207 mm |
|---|---|
Head diameter: | 220 mm |
Lift: | 40 mm |
Head speed: | 28 rpm |
Motor Power: | 1900 W |
Voltage: | 230 V/50 Hz |
Max. noise level: | 75 dB |
Weight: | 25 kg |
Inner diameter of the pipe: | 49—207 mm |
|---|---|
Head diameter: | 220 mm |
Lift: | 40 mm |
Head speed: | 44 rpm |
Motor Power: | 1300 W |
Air consumption: | 1800 l/min |
Air pressure: | 6-8 Bar |
Connection: | 3/4" |
Max. noise level: | 75 dB |
Weight: | 24 kg |
SHAVEDGER

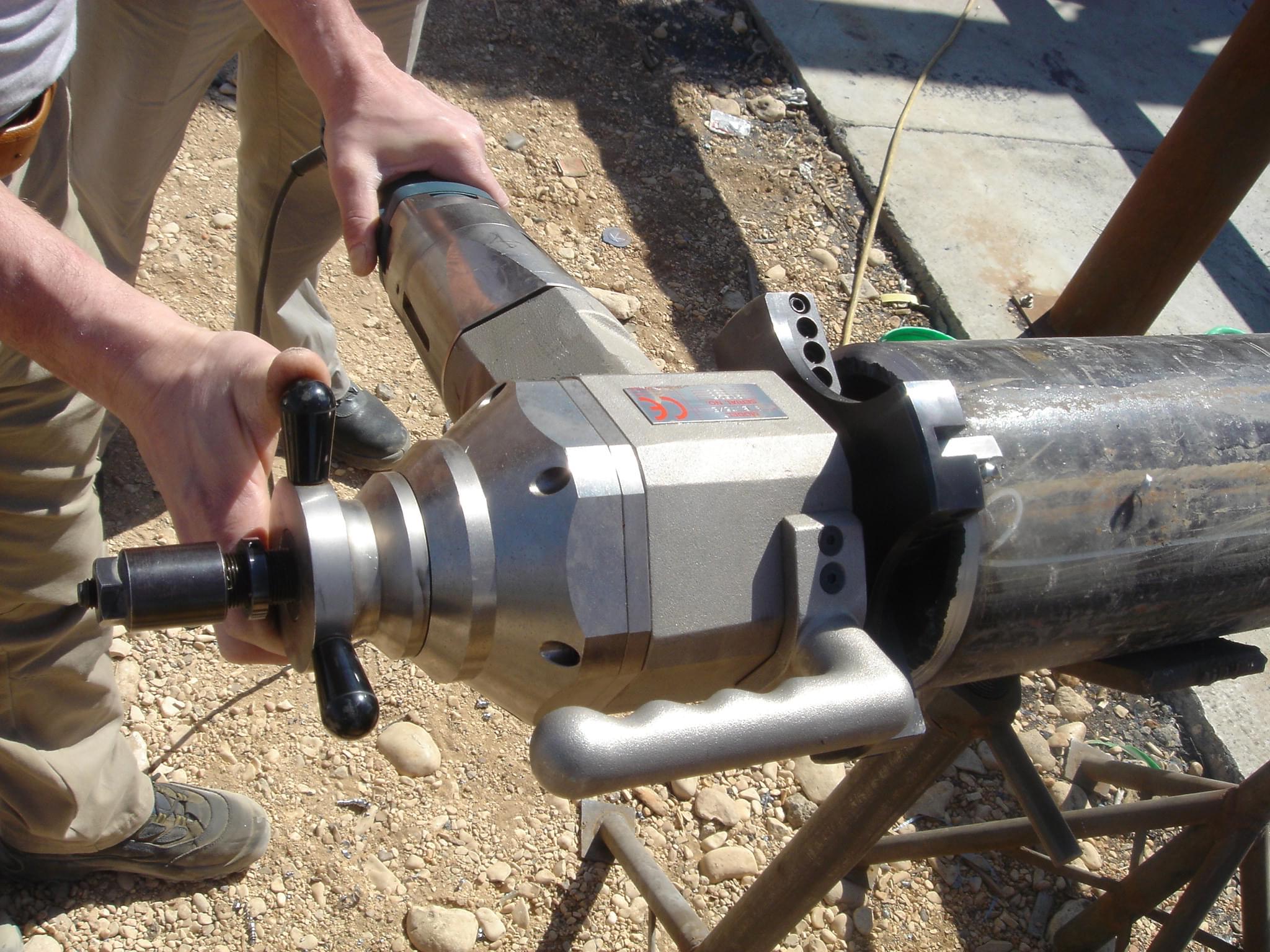

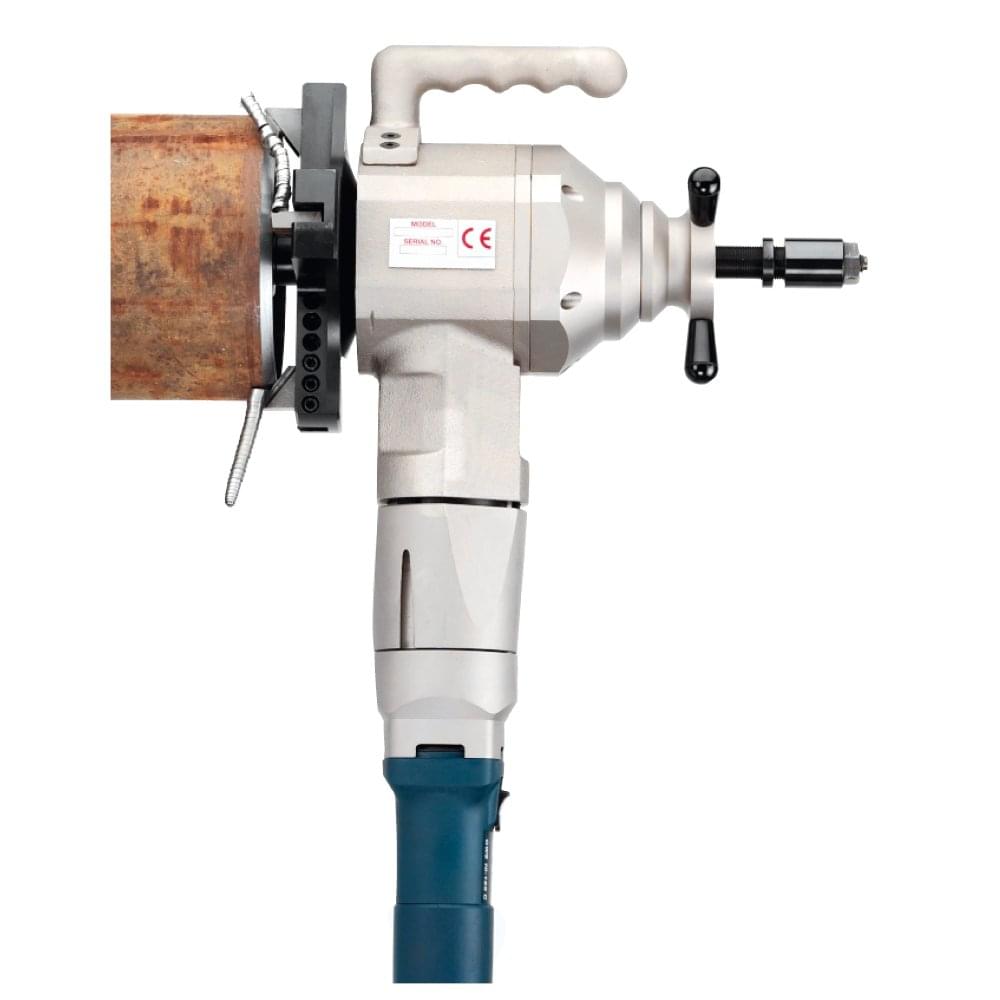

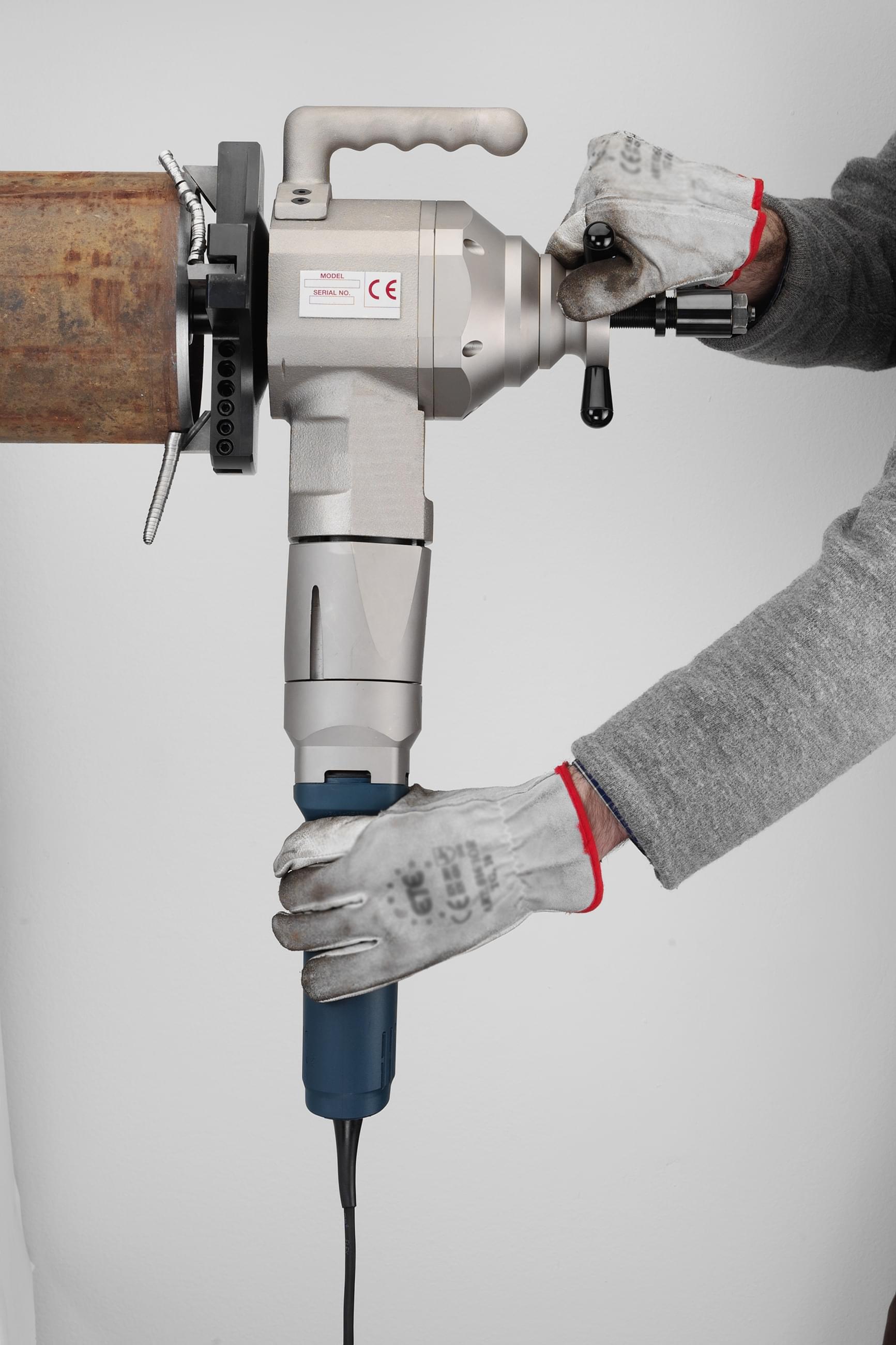

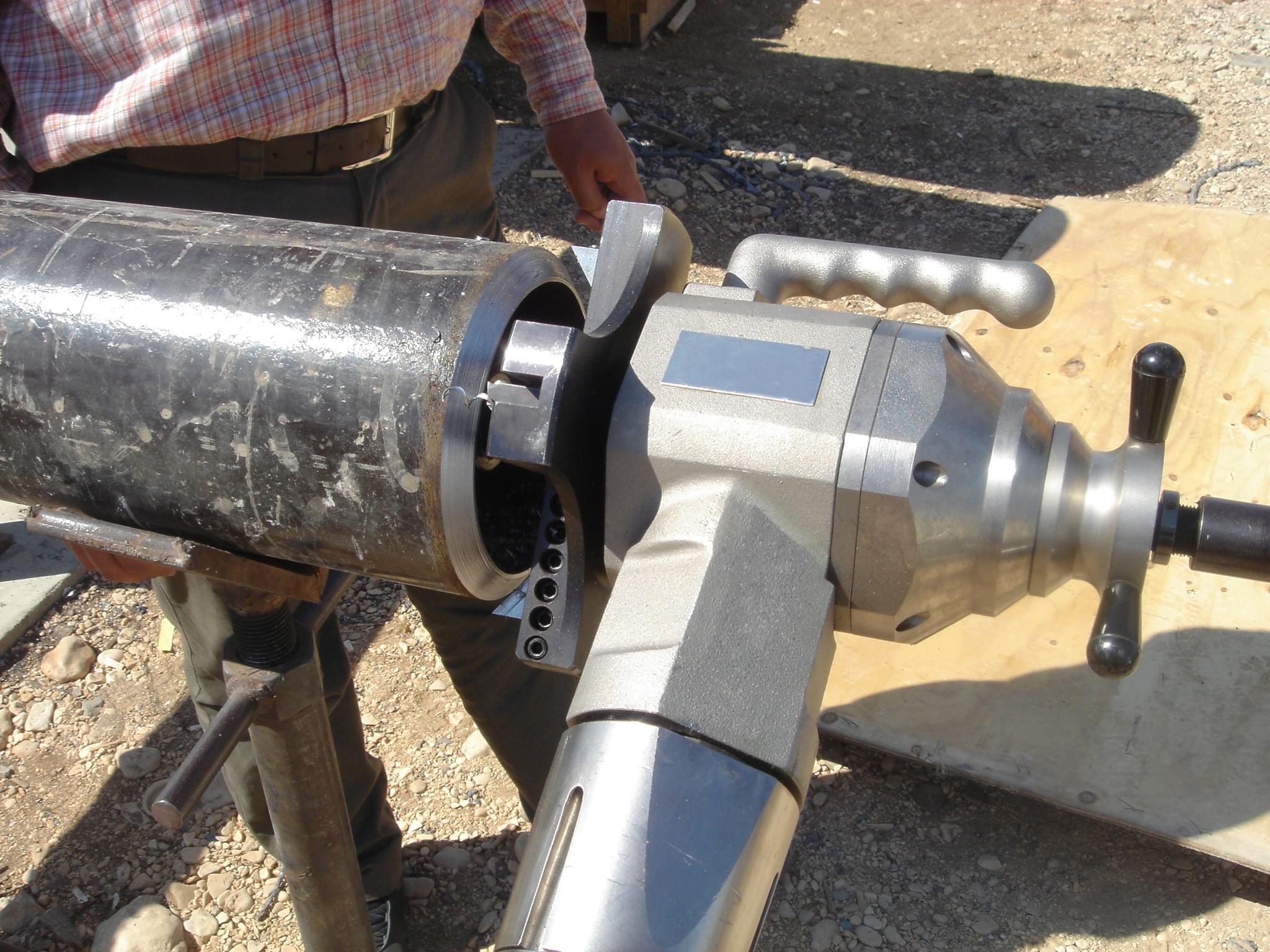

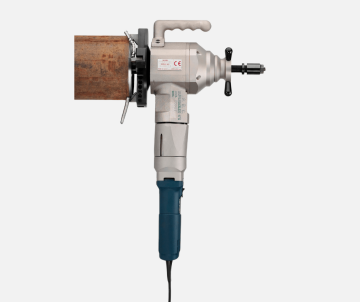

The SHAVEDGER is our most powerful hand-held beveling machine, which can easily be used to bevel even pipes with thick walls. Depending on the size of the bevel and the type of material, most bevels can be made in one or two steps.
Up to four differently shaped blades can be clamped in the SHAVEDGER beveling machine, which makes it possible to perform almost all types of bevels. Thanks to its robust gears and reinforced clamping shaft, the machine is particularly suitable for beveling thick-walled pipes with a diameter of 49 to 203 mm. As multiple knives can be clamped at the same time, external and internal beveling and face alignment can be performed simultaneously.
The SHAVEDGER beveling machine is available with electric or pneumatic propulsion. The pneumatic version can also be retrofitted with an automatic pneumatic clamping system. As an optional accessory, an arc shaft can be ordered for clamping into the pipe elbow.
Optional Accessories
Curved shaft for clamping knees with a range of 46 to 207mm
Pneumatic quick release
Bevelling blade at 37.5°
Frontal blade
Calibration knife for internal bevel
