ELEKTRO • PNEU • PNEU + AUTOLOCK
RAX
Versatile, robust, and highly powerful
Internal clamping 28-76 mm (extension 20-30 mm)
High working speed
Technical parameters
Inner diameter of the pipe: | 28—76 mm |
|---|---|
Head diameter: | 80 mm |
Lift: | 40 mm |
Head speed: | 75 rpm |
Motor Power: | 800 W |
Voltage: | 230 V/50 Hz |
Max. noise level: | 75 dB |
Weight: | 9 kg |
Inner diameter of the pipe: | 28—76 mm |
|---|---|
Head diameter: | 80 mm |
Lift: | 40 mm |
Head speed: | 110 rpm |
Motor Power: | 510 W |
Air consumption: | 950 l/min |
Air pressure: | 6 Bar |
Connection: | 1/2" |
Max. noise level: | 75 dB |
Weight: | 8 kg |
RAX

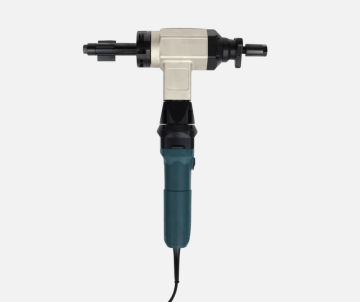

RAX is a pipe bevelling machine with an internal diameter ranging from 28 to 76 mm. It features internal clamping, allowing for simultaneous external and internal beveling and face alignment. The lower limit of the standard clamping diameter can be reduced to 20 mm using a reduced clamping shaft.
RAX is a versatile, robust, and high-performance bevelling machine suitable for various industries, particularly in the energy sector.

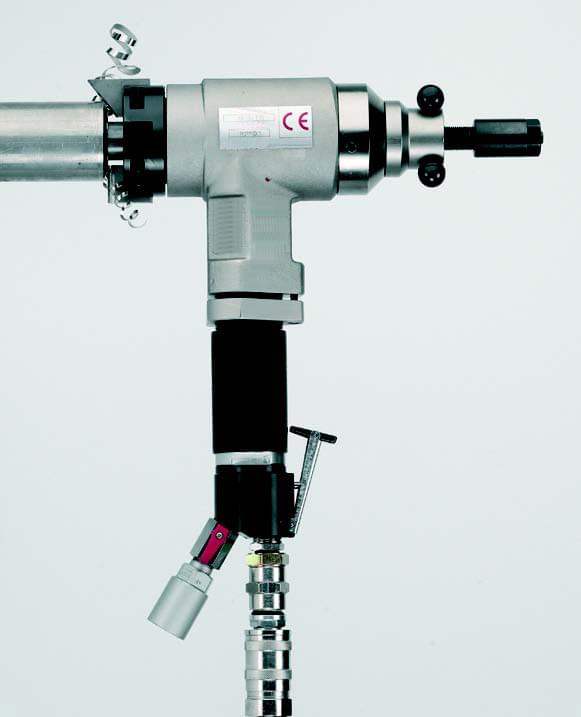

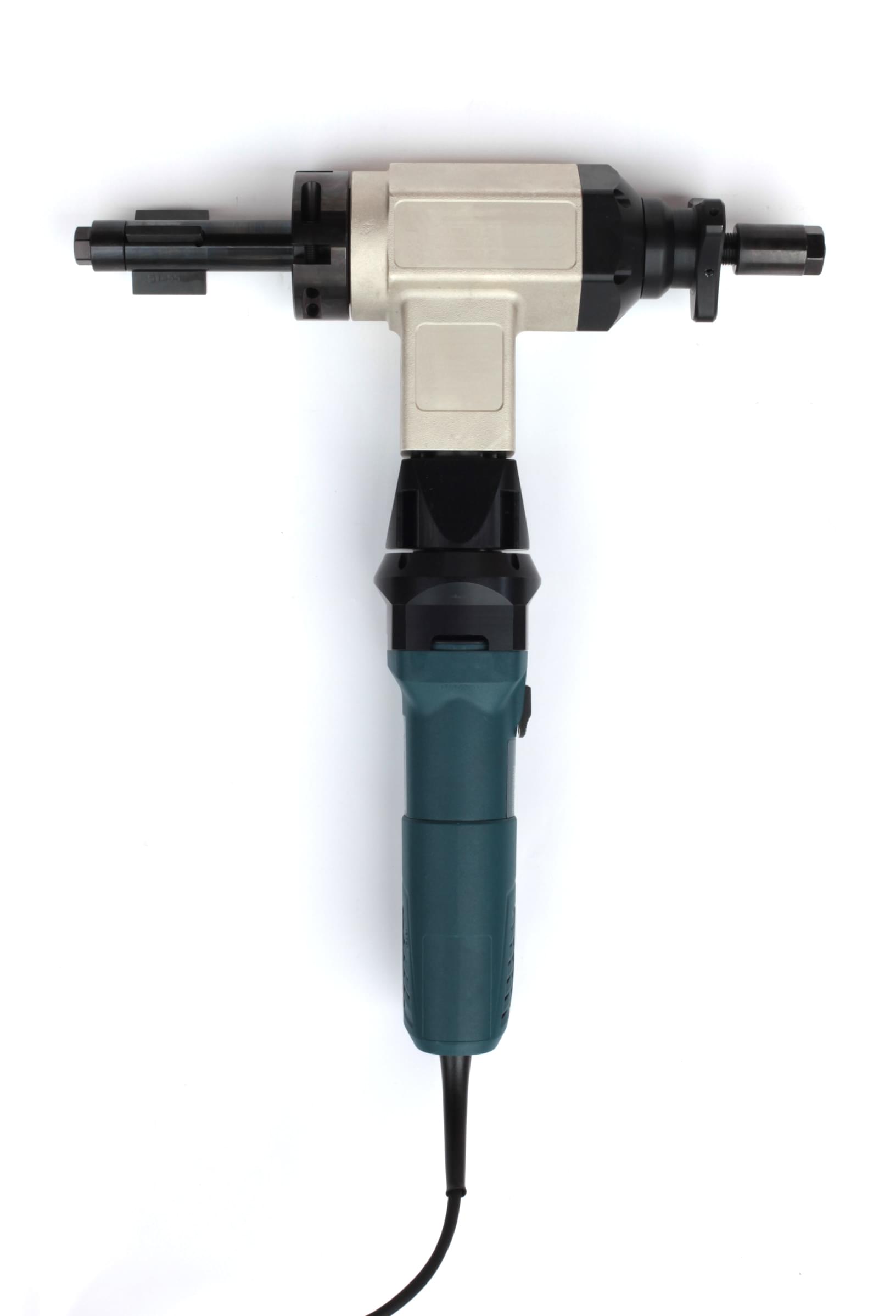

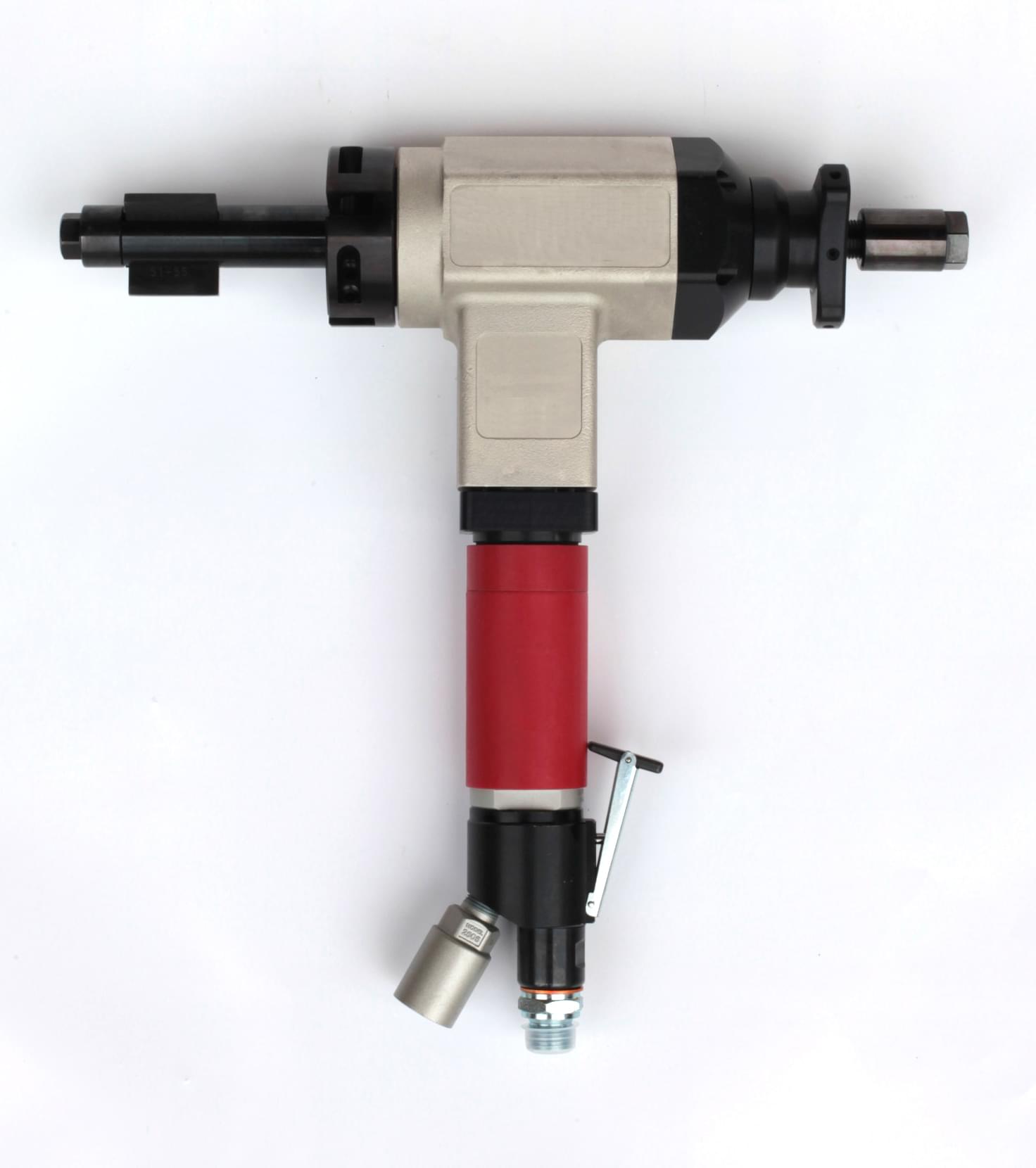

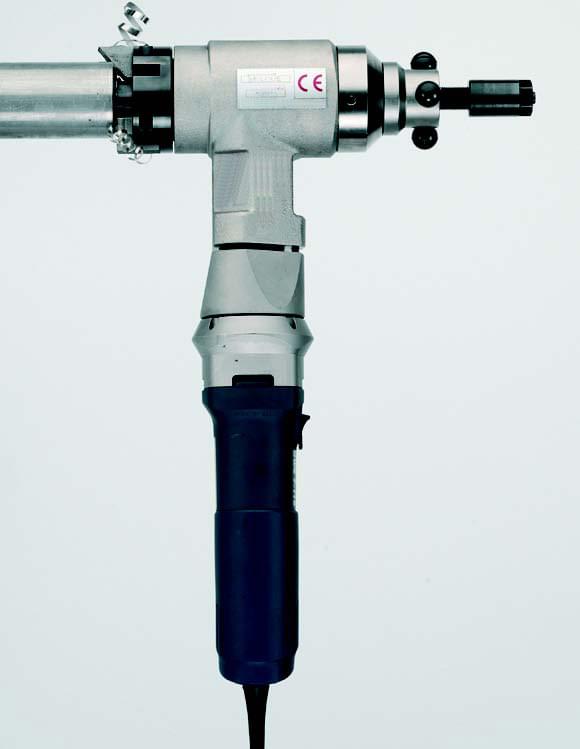

RAX is available with pneumatic or electric drive options. The pneumatic version can be equipped with an automatic clamping system as an additional accessory.
Optional Accessories
Reduced clamping shaft with a range of 20 to 30 mm

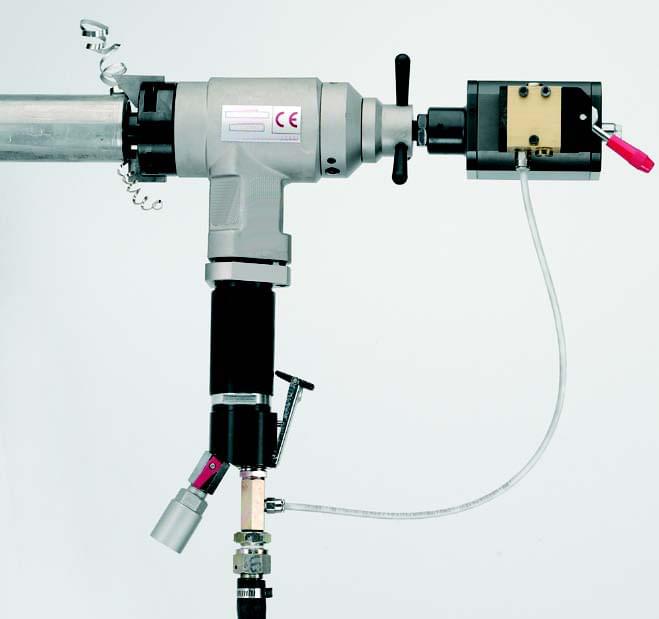

Pneumatic quick clamping
