ELEKTRO • PNEU • PNEU + AUTOLOCK
4PACT
Wide clamping range
Lightweight and versatile
Unlimited wall thickness
Two clamping shafts - covering multiple pipe sizes
Fast and smooth beveling
Technical parameters
Inner diameter of the pipe: | 23—108 mm |
|---|---|
Head diameter: | 115 mm |
Lift: | 40 mm |
Head speed: | 74 rpm |
Motor Power: | 1300 W |
Voltage: | 230 V/50 Hz |
Max. noise level: | 75 dB |
Weight: | 10 kg |
Inner diameter of the pipe: | 23—108 mm |
|---|---|
Head diameter: | 115 mm |
Lift: | 40 mm |
Head speed: | 87 rpm |
Motor Power: | 800 W |
Air consumption: | 1000 l/min |
Air pressure: | 6-8 Bar |
Connection: | 1/2" |
Max. noise level: | 75 dB |
Weight: | 9 kg |
4PACT

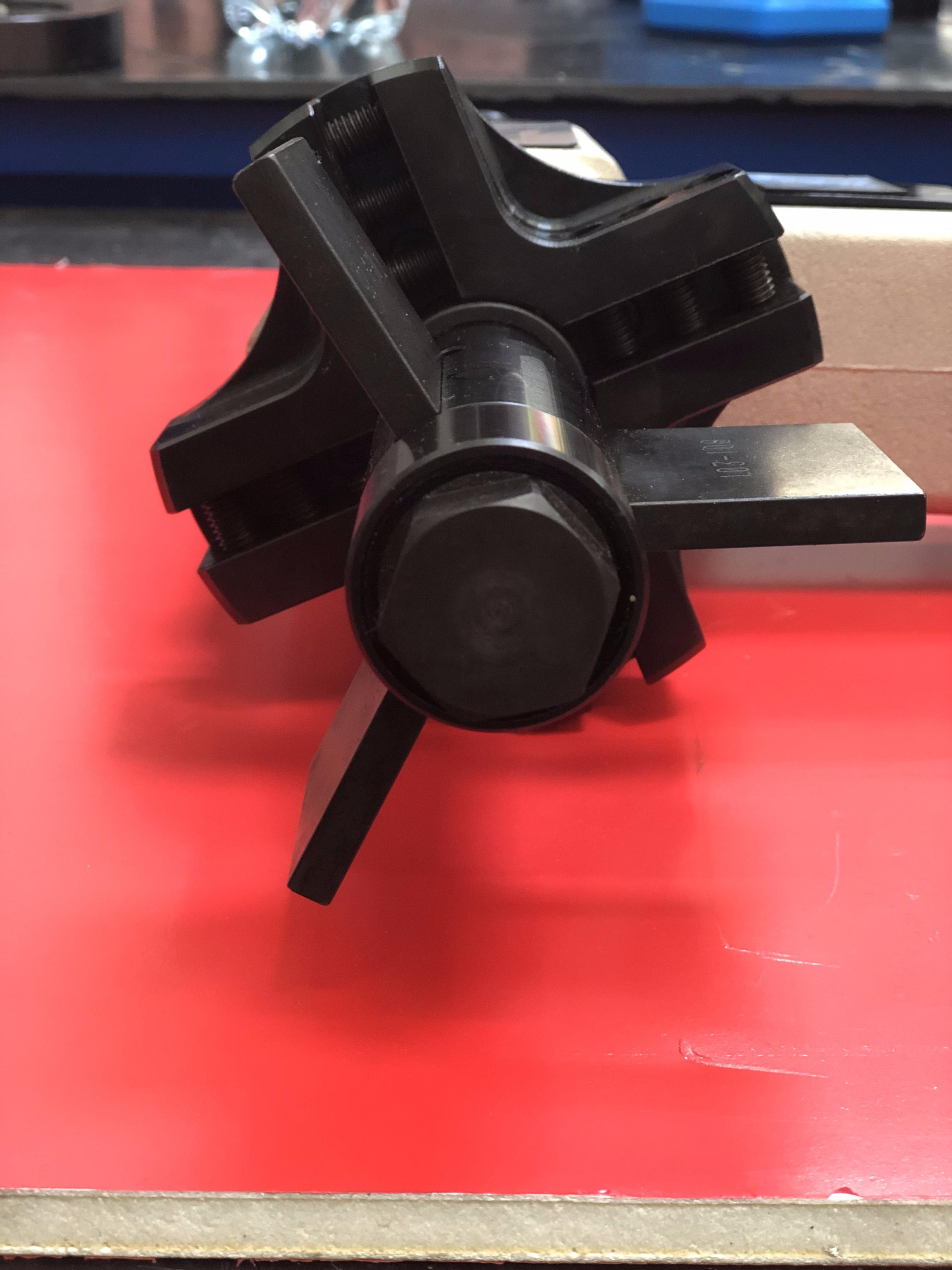

4PACT is a pipe bevelling machine designed for internal diameters ranging from 23 to 108 mm. Its greatest advantage lies in its exceptional working range, which is unusually large for its class. It is lightweight and easy to operate. The machine clamps onto the pipe from the inside using three clamping jaws.
4PACT can simultaneously perform internal and external beveling and face alignment by allowing the attachment of multiple differently shaped blades at once. Changing the beveling angle is easily achieved by swapping the blades. Blades for nearly any operation, such as compound bevel, J-bevel, wall thickness calibration, and more, are available. 4PACT is a versatile machine with a flattened body of 80 mm.

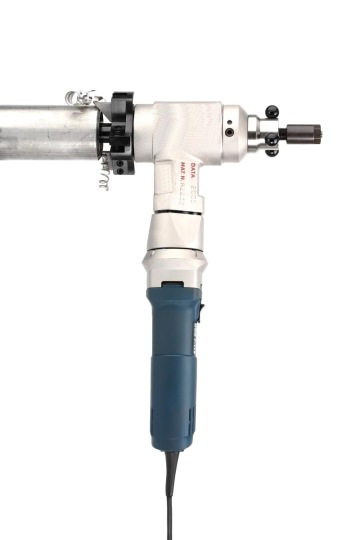

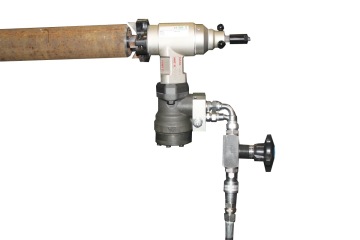

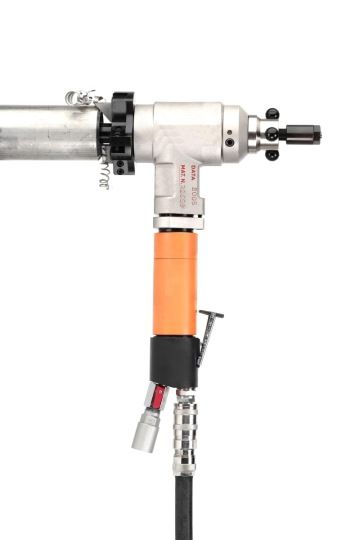

The main advantage of 4PACT compared to the REX model is the inclusion of two clamping shafts as part of the standard package. With the ability to change the shaft, the machine covers a wider range of pipe sizes that it can bevel. The machine is available in both pneumatic and electric versions, and automatic clamping can be added to the pneumatic version.
optional accessories
Reduced head diameter of 80 mm
Pneumatic quick clamping
Alternative products
RAX
➜ ID 20-76 mm (extention 23-30 mm)
➜ Robust, and powerful
➜ High working speed
4PACT AUTO
➜ ID 23-108 mm
➜ Wide clamping range
➜ Two shafts
➜ Designed for beveling steam boilers
➜ Automatic operation
