VEERIO

Ideal for precision machining of small parts

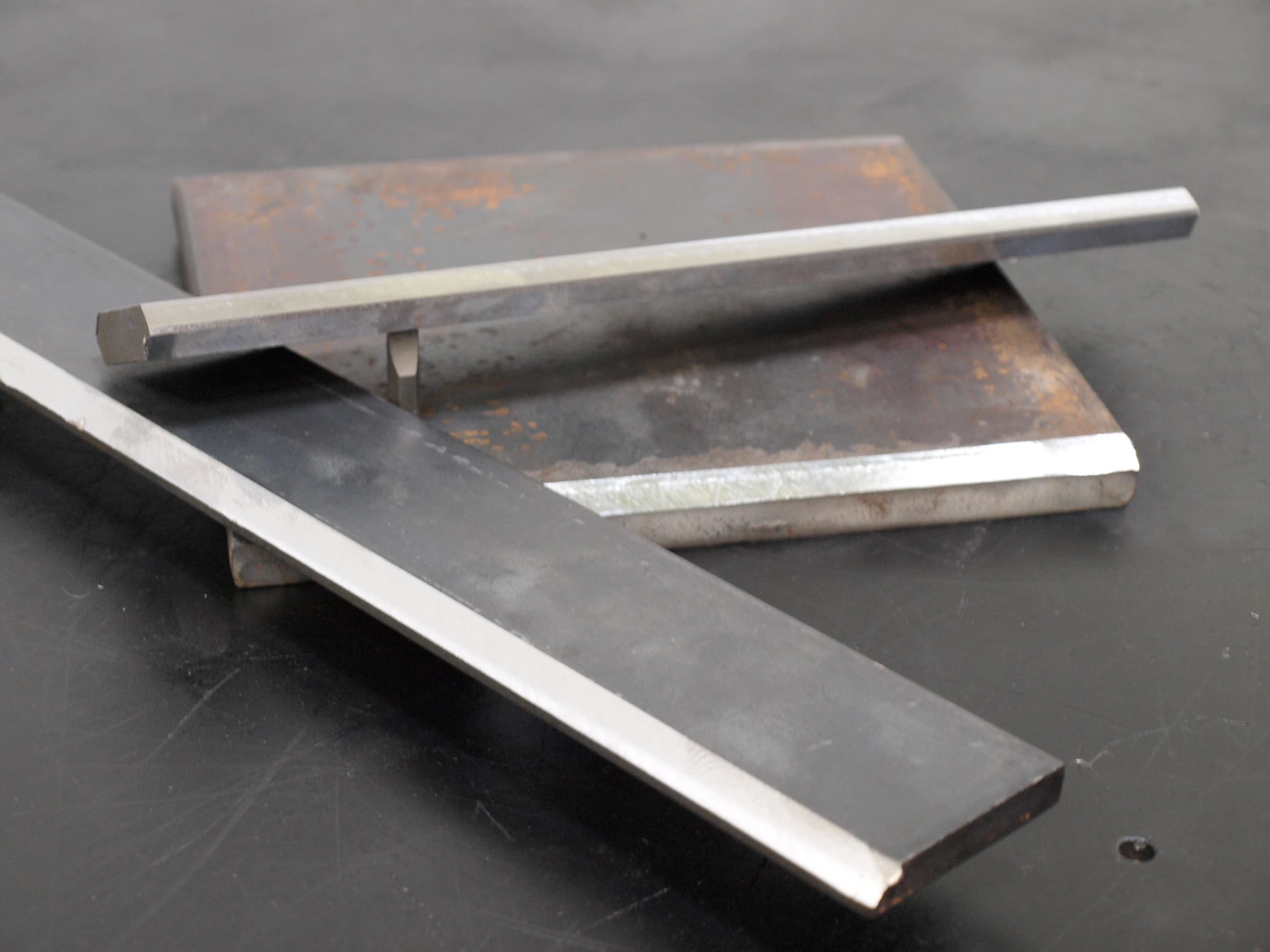

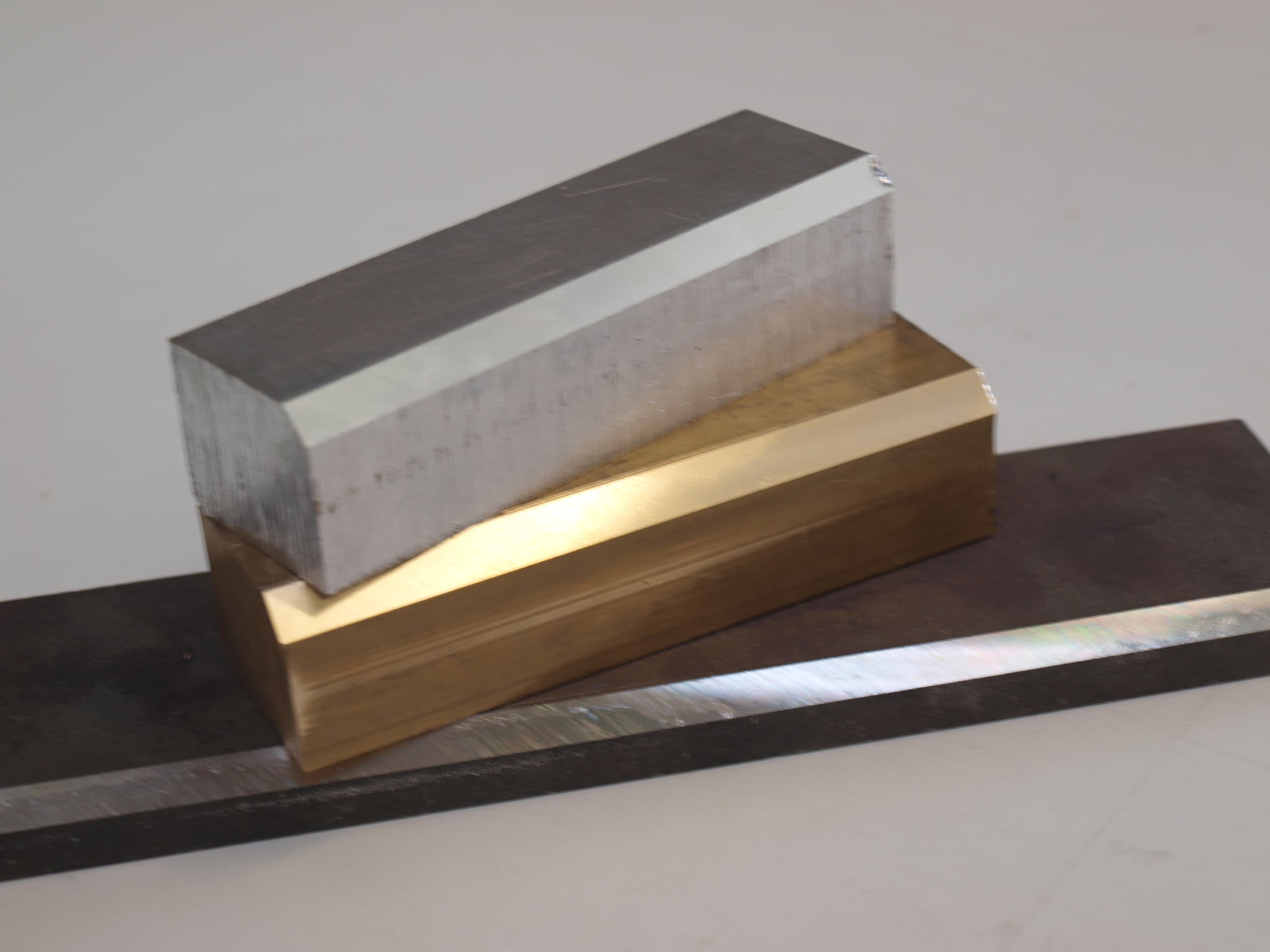

Suitable for processing a wide range of materials
Infinitely variable speed control
Optional automatic material feeding system available
Can be converted into an INCURV bevelling machine

Technical parameters

Maximum bevel width:	10 mm
Bevelling angle:	45°
Plate thickness:	unlimited
Motor Power:	750 W

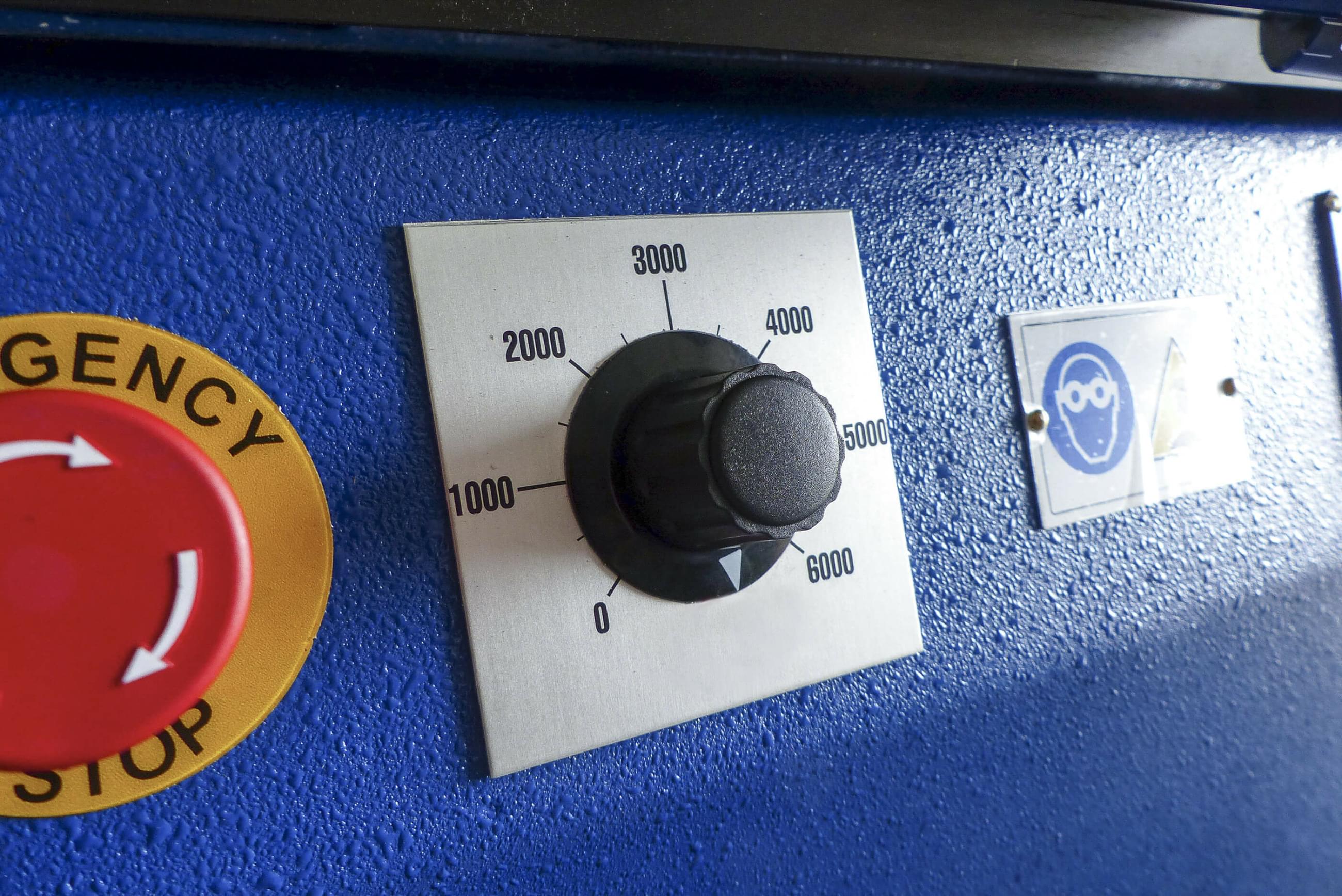

Milling head speed (without load):	0—6000 rpm
Voltage:	230 V / 50 Hz
Tooling:	Face milling cutter – 7 replaceable inserts
Net weight of the machine:	57 kg

VEERIO

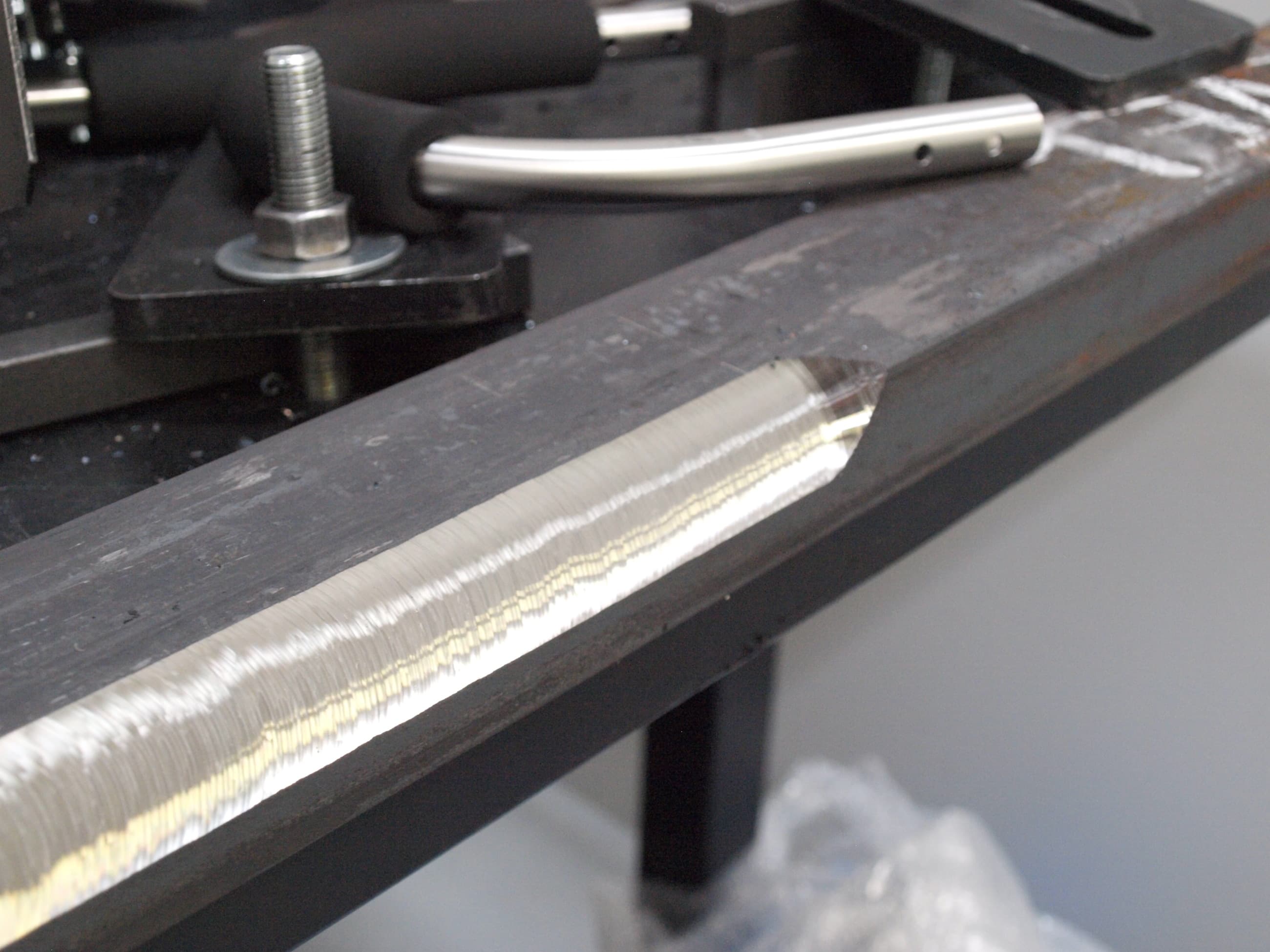

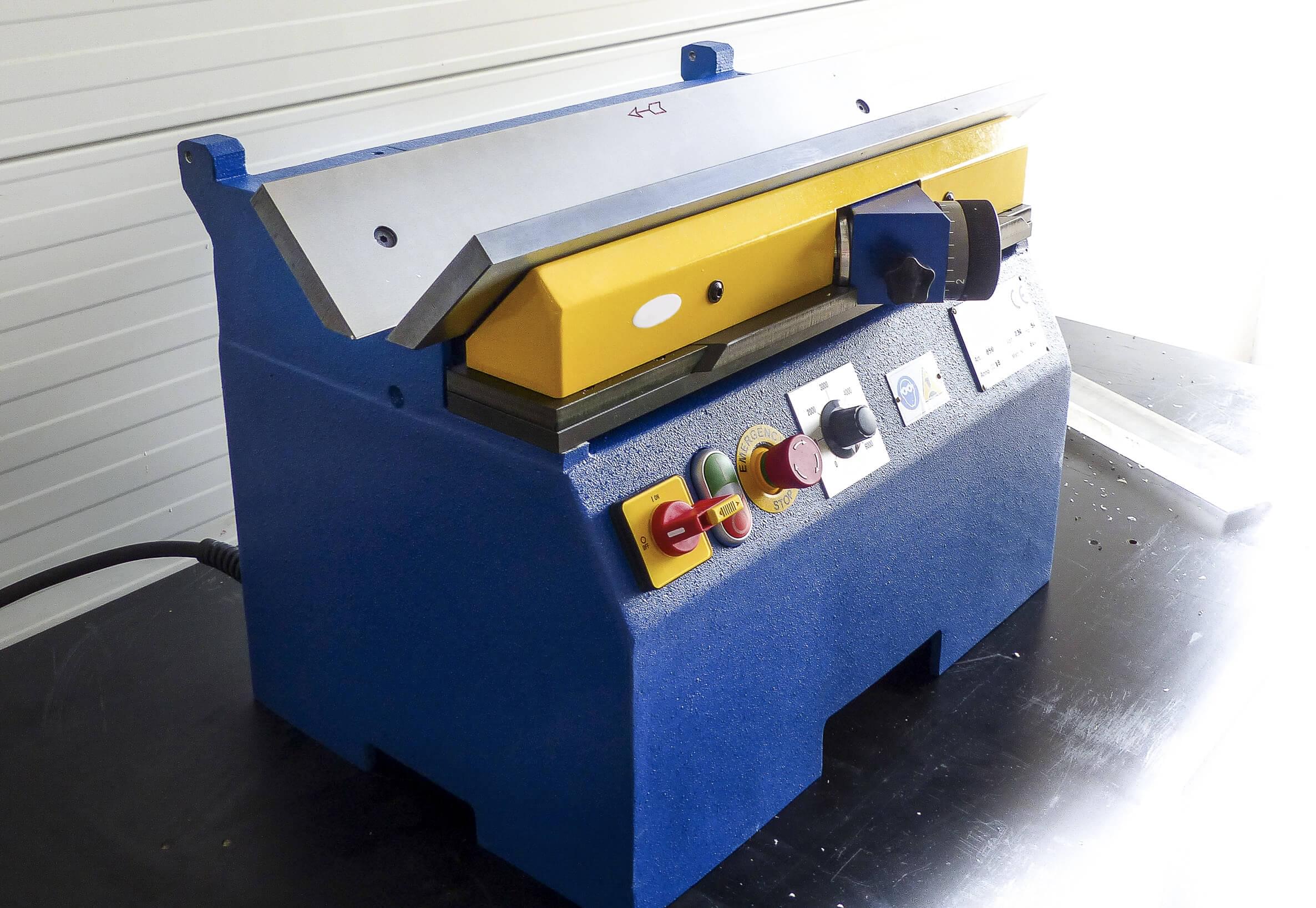

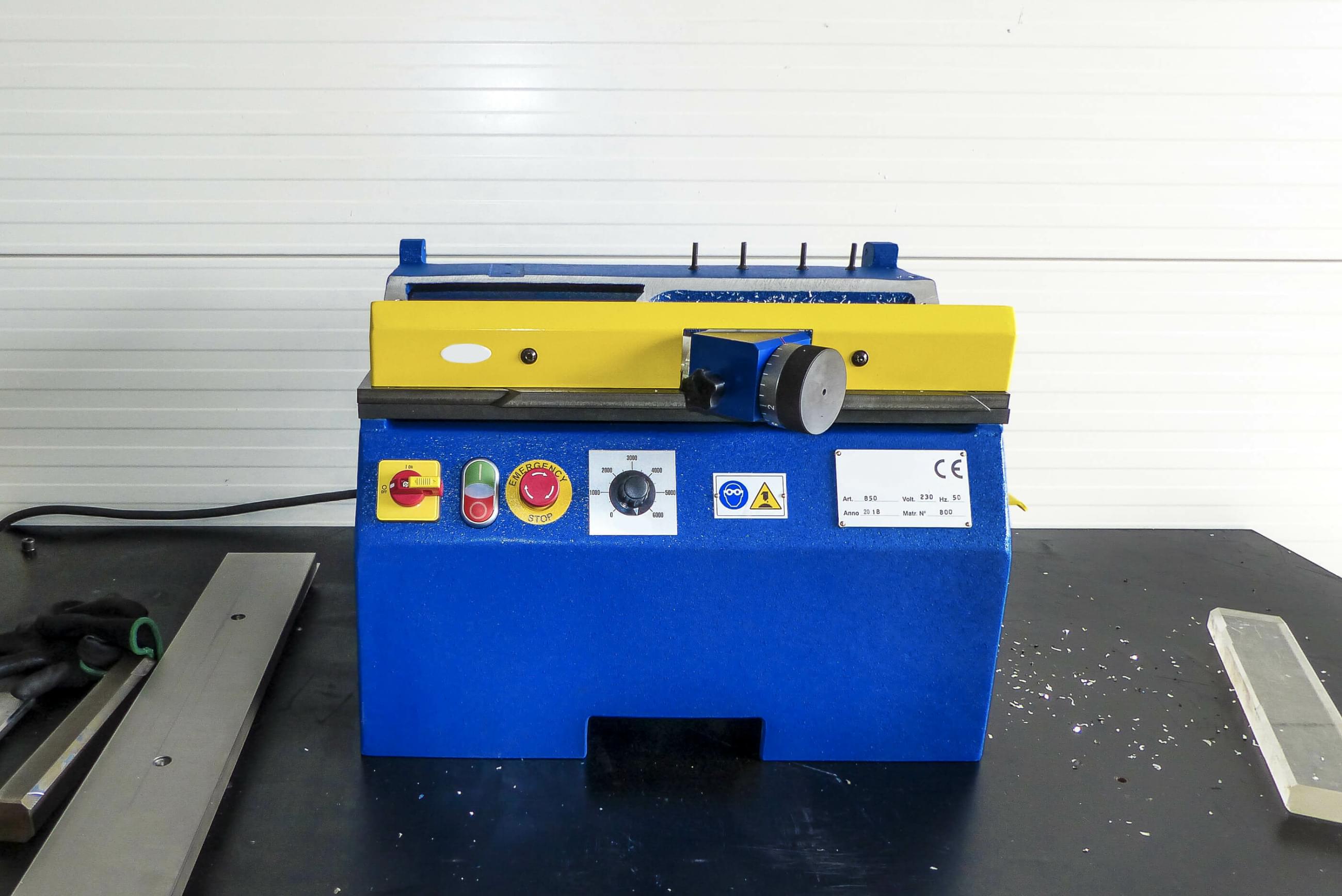

The VEERIO tabletop beveling machine is designed for beveling straight edges of smaller parts. It operates using a front-facing rotary cutter equipped with 7 four-sided inserts, allowing for beveling up to 10 mm in width at a 45° angle. The V-shaped guide ensures precise material guidance during the beveling process.

The machine features adjustable bevel size and smooth speed control for the cutter, ranging from 0 to 6,000 RPM. This allows for the processing of various materials without the need to change the inserts. Additionally, an automatic feeding system is available as optional equipment.
