RADIMAX
Universal handheld beveling machine
Easy operation and low weight
Equipped with electric speed control
Bevels straight and shaped edges of sheets
Can also be used on pipes and cutouts (holes)

Technical parameters
Maximum bevel width: | 16 mm |
---|---|
Bevelling angle: | 22.5°, 30°, 37.5°, 45°, 55°, 60° - special milling head is required for each angle |
Plate thickness: | from 1,5 mm |
Radius: | R2, R3, R4, R5 |
Motor Power: | 2200 W |
Speed of the milling head (without load): | 1800—5850 rpm |
Voltage: | 230 V/50 Hz |
Bevelling method: | milling head - 5 replaceable inserts |
Net weight of the machine: | 10 kg |
RADIMAX
Handheld lightweight machine for creating bevels before welding metal materials. It operates by milling with a rotary head equipped with cutting inserts. It can be used on any straight or shaped edge of sheets, profiles, and pipes. With adjustable speeds, this machine can be used on a variety of metals, from stainless steel and mild steel to aluminum. The resulting bevel is smooth on most materials, eliminating the need for additional finishing work.
Using a special head and radius inserts, it is possible to machine edges with a radius ranging from R2 to R5.
The machine is supplied with a chosen milling head fully equipped with cutting inserts. Each bevel angle requires a different milling head and the corresponding radius of the cutting insert.
Optional Accessories

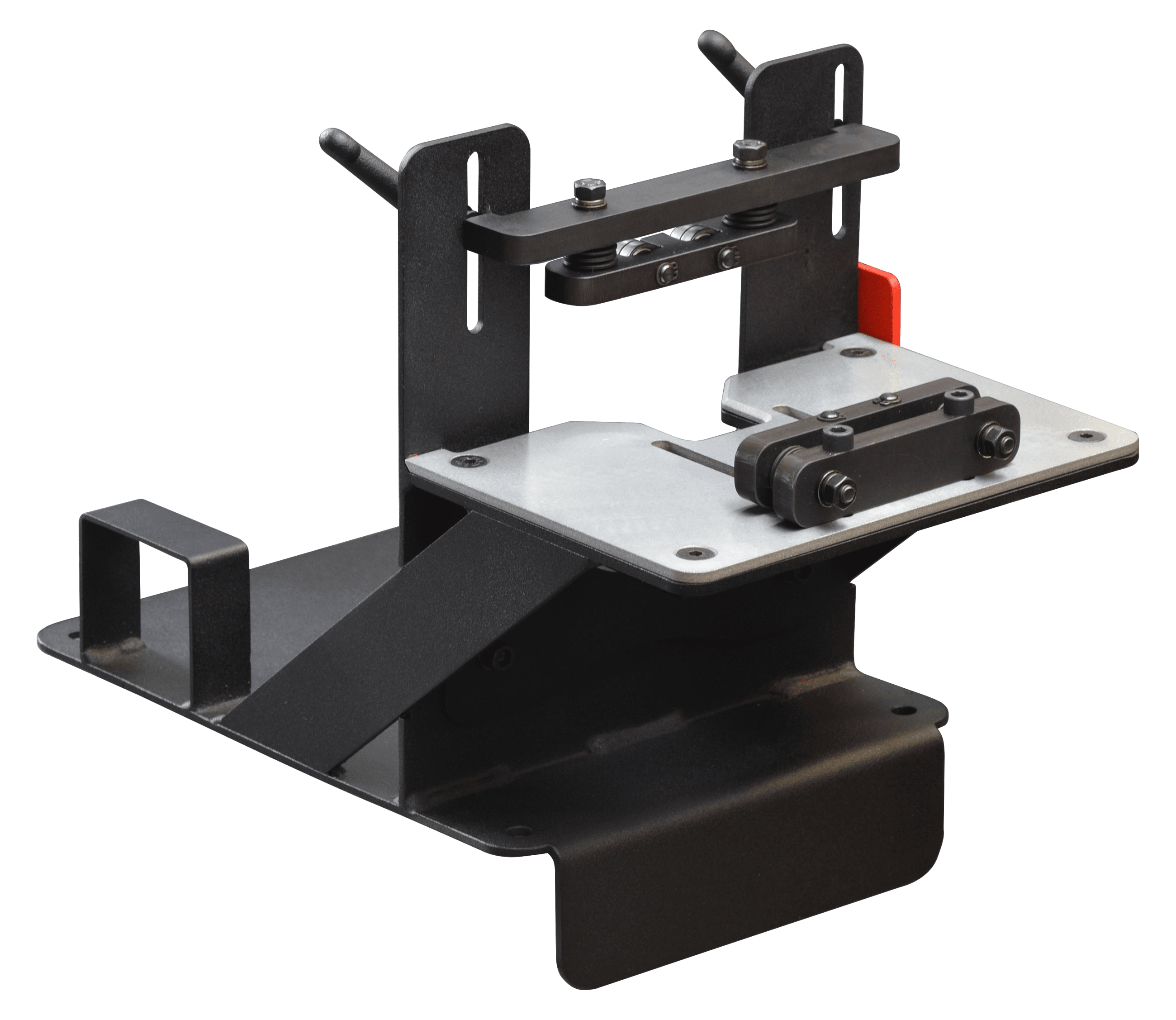

Work table for stationary beveling
Milling head for beveling (5 inserts)
Milling head for radius (4 inserts)
