FEADER
High power output
Edge rounding capability
Automatic feeding system
Suitable for machining small parts
Technical parameters
Maximum bevel width: | 8 mm |
|---|---|
Bevelling angle: | 15°- 45° |
Radius: | R3; R4; R5 |
Motor Power: | 2200 W |
Speed of the milling head (without load): | 1400—2800 rpm |
Voltage: | 400 V/50 Hz, 3-phase |
Machining method: | rotary cutter - 10 replaceable inserts |
Net weight of the machine: | 170 kg |
FEADER

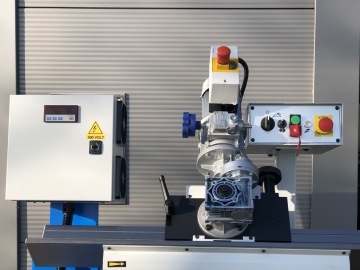

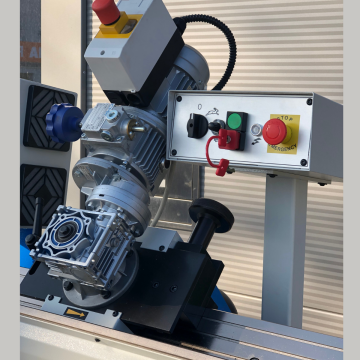

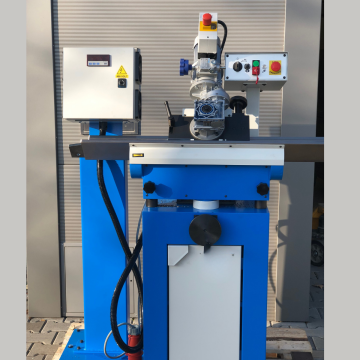

FEADER is a bevelling machine suitable for bevelling strips or quickly and easily beveling a large quantity of smaller parts. Beveling is facilitated by V-shaped guiding rulers and an automatic feeding system that can automatically feed the beveled material along the milling head. Bevels with a width of up to 8 mm can be performed at angles ranging from 15 to 45 degrees.
Optional accessories
Automatic feeding system
Carbide inserts standard
Carbide inserts for radius
