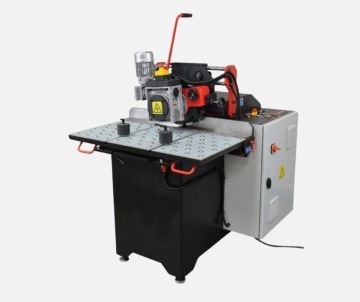

BENCHMILL | Stationary plate beveller
Bevelling of plates and pipes Ø 50–150 mm

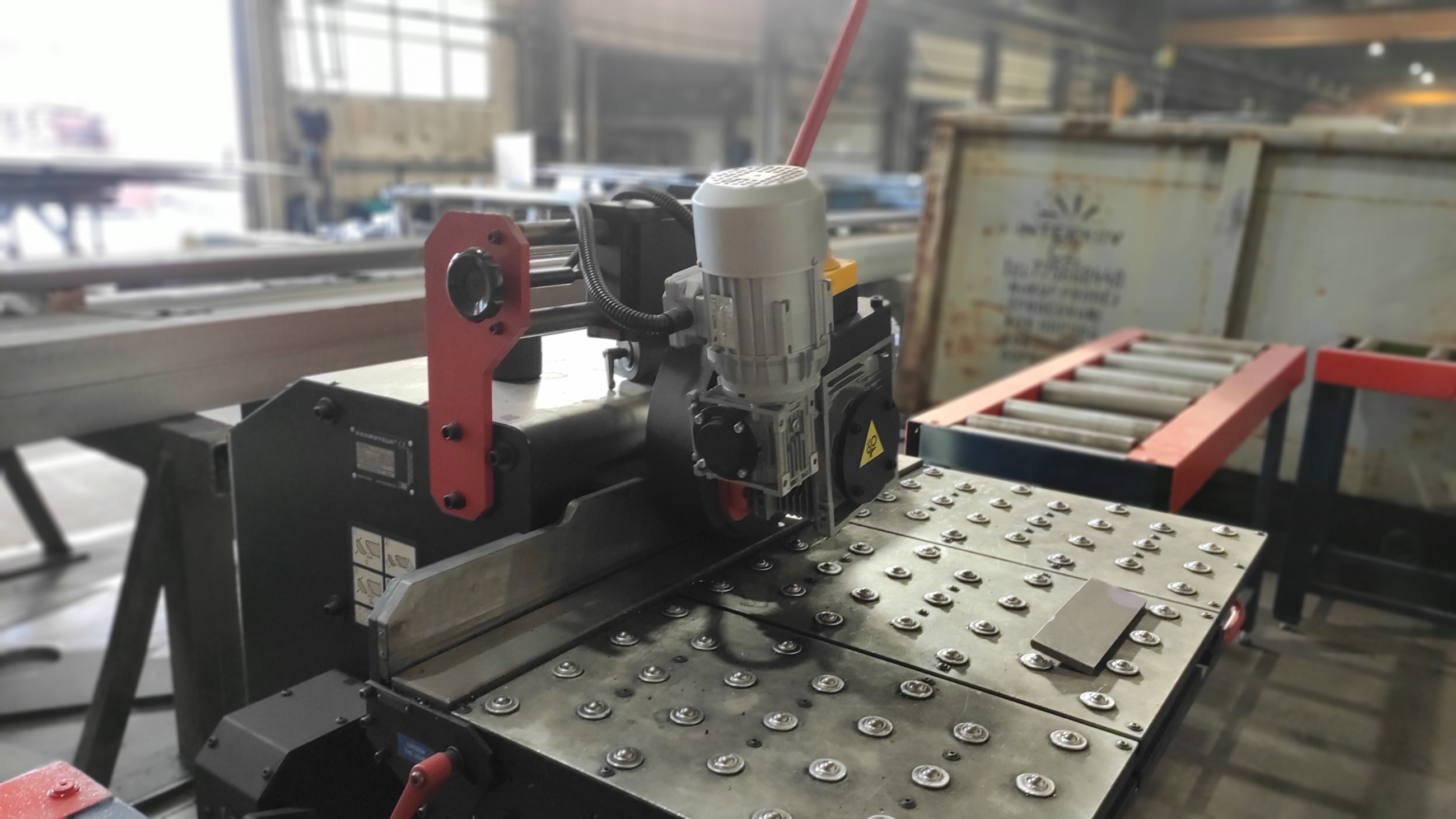

Ball transfer table for easy handling
Easy bevel width adjustment
Variable speed and feed
Precise 3D roller guidance
Easy access to milling head and inserts
Overload protection
Optional accessories available
Ideal for long and narrow parts (from 30 mm)
Technical parameters
Maximum bevel width: | 30 mm |
|---|---|
Bevelling angle: | 15°–60° |
Plate thickness: | 3–100 mm (min. part size: 50 × 150 mm) |
Machining speed: | 3.3 m/min |
Radius: | R2, R3 |
Motor power: | 7500 W |
Milling head speed (no load): | 500–2920 rpm |
Voltage: | 400 V / 50 Hz |
Net weight: | 850 kg |

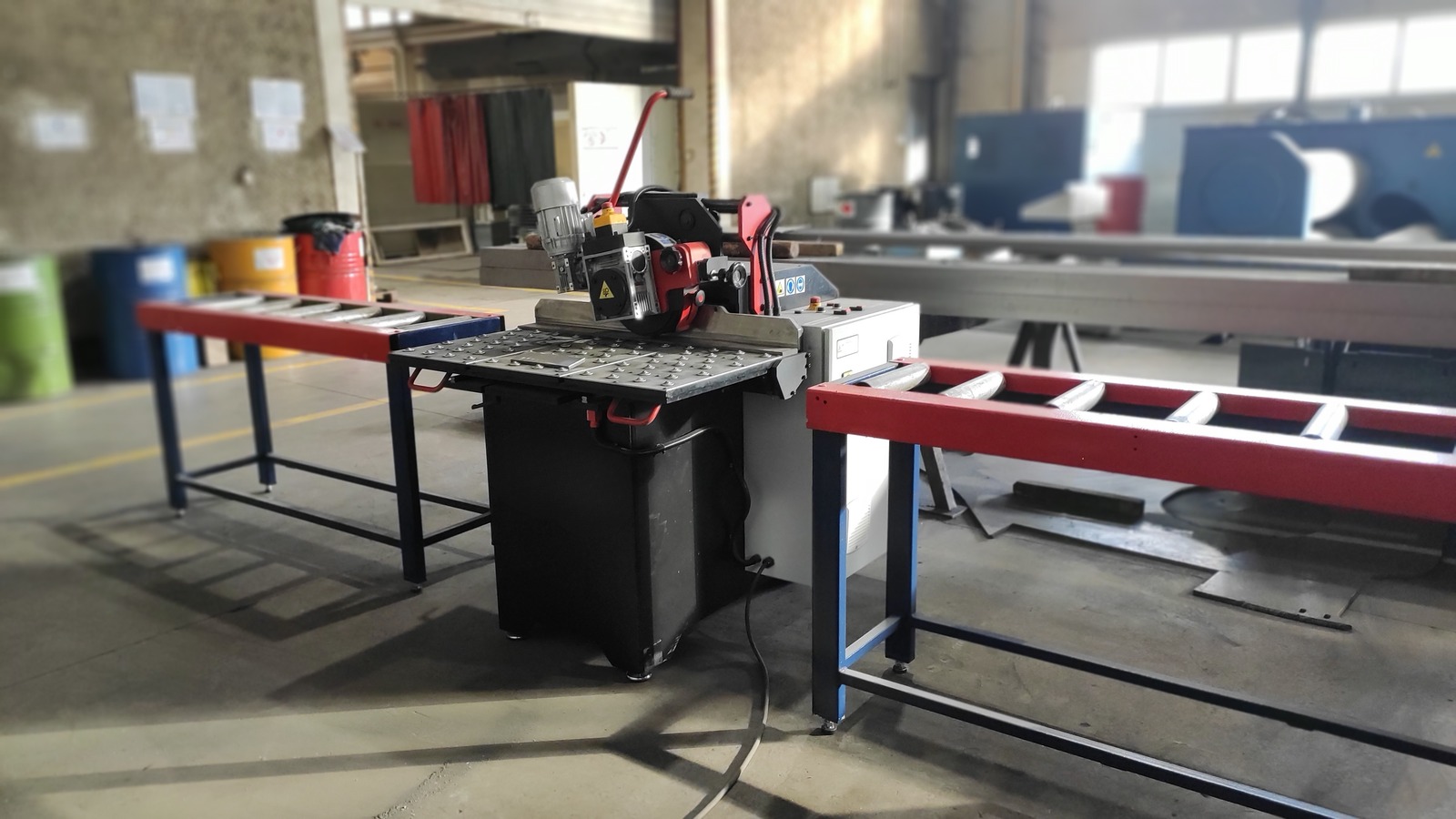

BENCHMILL
A stationary bevelling machine designed for machining straight edges on workpieces of various sizes. Its modern design and innovative features improve workflow efficiency. The bevel angle can be adjusted from 15° to 60°, with a maximum bevel width of 30 mm. Variable speed and feed control ensure optimal performance. The machine is suitable for various types of steel as well as aluminium alloys.
The high-speed rotary milling head is equipped with 10 inserts. Easy access to the milling head and cutting inserts ensures quick maintenance. The machine can process workpieces up to 100 mm in thickness. A ball transfer table allows for easy handling of the material. The machine is also capable of bevelling pipes with an outer diameter of 50–150 mm.
