ELEKTRO • PNEU
SLIMGRIP
Possibility to work in membrane walls
Calibration even for very small internal diameters
Can bevel edges on solid tubes
Suitable for work in cramped spaces
Light weight
Technical parameters
Outer diameter of the pipe: | 10,3—73 mm |
|---|---|
Head diameter: | 75 mm |
Lift: | 30 mm |
Idle speed: | 113 rpm |
Motor Power: | 900 W |
Voltage: | 110/220 V |
Max. noise level: | 75 dB |
Weight: | 16 kgs |
Outer diameter of the pipe: | 10,3—73 mm |
|---|---|
Head diameter: | 75 mm |
Lift: | 30 mm |
Idle speed: | 133 rpm |
Motor Power: | 800 W |
Air consumption: | 1000 l/min |
Air pressure: | 6-8 Bar |
Connection: | 1/2" |
Max. noise level: | 75 dB |
Weight: | 15 kg |
SLIMGRIP

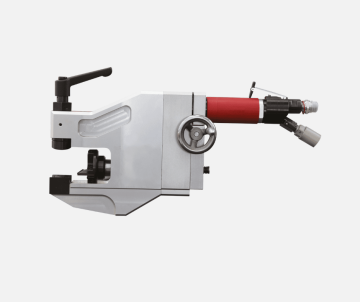

Beveling machine model with external clamping is designed for pipes with an external diameter of up to 73 mm. Clamping is secured by a fixed and a movable clamping saddle, which adjusts to the external diameter of the pipes. The machine utilizes the principle of a rotating head, which can be equipped with shaped blades for various types of bevels, similar to bevelers with internal clamping. Thanks to the special geometry of the head, the beveler can also be effectively used in membrane walls with a minimum hole clearance of 60 mm. Furthermore, SLIMGRIP allows for precise calibration of pipe diameters, even when space is limited. The power unit can be installed either axially or perpendicular to the pipe being processed, ensuring safe and comfortable operation.
Optional accessories
Reduced head with a diameter of 50 mm
Special clamping jaw
Frontal blade
Calibration knife for internal bevel
Alternative products
FLATZ
➜ ID 20-39 mm (extention range 12,5-21 mm)
➜ bevelling in confined spaces
➜ Lightweight design
➜ Bevelling of membrane walls
LITEA
➜ ID 20-42 mm (extension 12,5-21mm)
➜ Two easily interchangeable shafts
➜ Bevelling of membrane walls
➜ Available with automatic clamping
LITEAMAT
➜ ID 20-42 mm (extension 12,5-21 mm)
➜ Designed for serial beveling
➜ Automatic operation
➜ Easy pedal control
