Handmill / hANDMILL INOX

Adjustable bevel angle in the range of 0°–90°
Powerful motor with electronic speed control in the range of 1,800–5,850 rpm
Overload protection prevents damage to the motor
Continuous adjustment of milling depth

The face milling head offers:

Lower resistance during milling
Reduced physical effort for the operator
Extended bevel width range up to 25 mm

Technical parameters

Maximum bevel width:	25 mm
Bevelling angle:	0°–90° (15°–75° recommended)
Plate thickness:	from 2 mm
Motor Power:	2200 W
Speed of the milling head (without load):	1800–5850 rpm
Voltage:	1~ 220–240 V, 50–60 Hz
Bevelling method:	milling head - 5 replaceable inserts
Required temperature:	0–40 °C
Net weight of the machine:	12,5 kg

HANDMILL

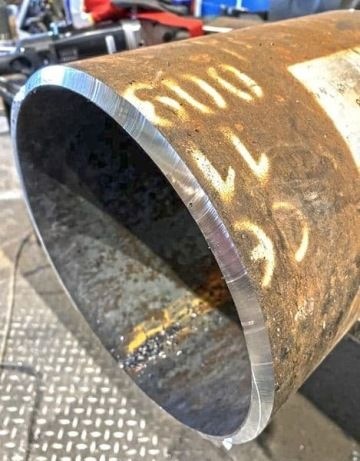

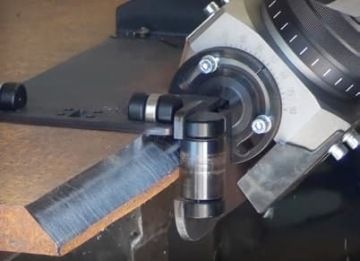

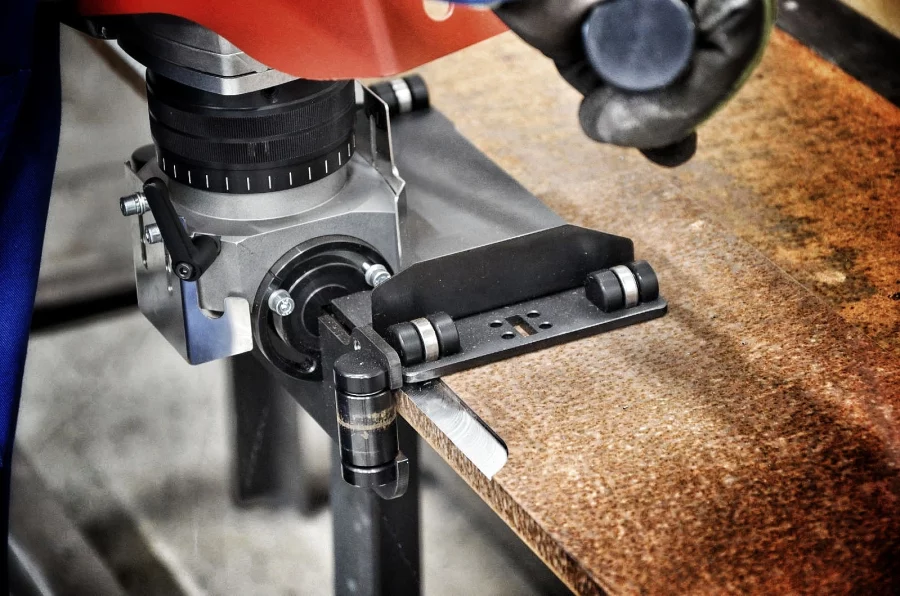

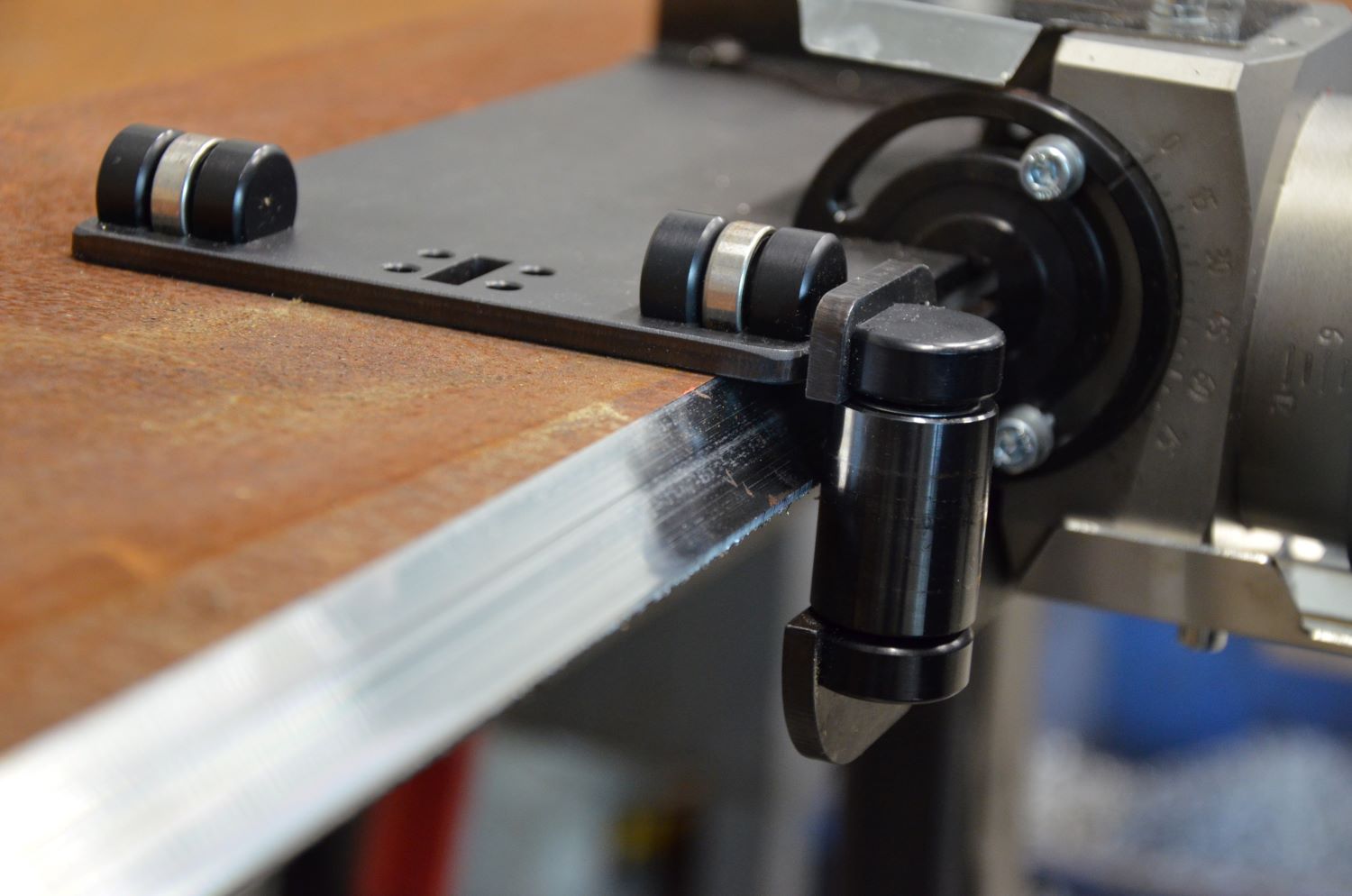

HANDMILL INOX is an easy-to-use, portable, and robust edge-beveling machine designed for chamfering straight edges and pipes up to a bevel width of 25 mm.

This handheld beveling machine is equipped with a powerful motor and a face milling cutter, ensuring smooth operation and high efficiency. HANDMILL INOX allows precise machining of straight surfaces as well as the outer edges of pipes, with minimal resistance and without unnecessary effort for the operator.

The variable speed control (1,800–5,850 rpm) enables easy adjustment of cutting conditions to suit different materials.
The continuously adjustable cutting depth and bevel angle (0–90°) can be set without the use of tools, significantly reducing setup time and increasing overall productivity.
