CB-01
CB-02
CBR-03
Pneumatic drive
Long insert life
For bevelling straight and curved edges (shapes)
Deburring holes from 6.8 mm
Pneumatic drive
Unique ergonomic design
Suitable for plates, profiles, and pipes
Radius R2
Pneumatic drive
Radius R3
Easy and quick insert change
Technical parameters
Minimum workpiece thickness: | 1.5 mm |
|---|---|
Bevel angle: | 45° |
Motor power: | 0.45 kW |
Speed (no load): | 28,000 rpm |
Minimum hole diameter: | 6.8 mm |
Air consumption: | 0.15 m³/min |
Air pressure: | 0.6 MPa |
Net weight of the machine: | 0.5 kg |
Bevel size: | 0–3 mm, R2–R3 |
Bevel angle: | 45° |
Bevelling speed: | Up to 1.8 m/min |
Motor power: | 0.45 kW |
Speed (no load): | 13,000 rpm |
Minimum hole diameter: | 6.8 mm |
Air consumption: | 0.4 m³/min |
Air pressure: | 0.59 MPa |
Noise level: | 86.5 dB |
Net weight of the machine: | 1.8 kg |
Radius size: | R3 |
Maximum workpiece thickness: | 6 mm |
Motor power: | 0.45 kW |
Speed (no load): | 12,000 rpm |
Minimum hole diameter: | 22 mm |
Air consumption: | 0.65 m³/min |
Air pressure: | 0.6 MPa |
Net weight of the machine: | 2.3 kg |

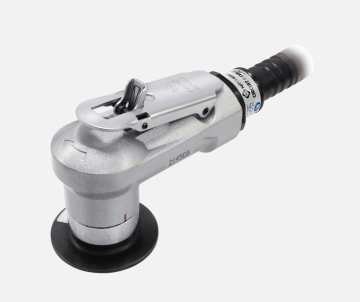

CB-01
Pneumatic deburring tool for straight and curved edges, suitable for thin sheets from 1.5 mm. Operates on a milling principle with a rotary head and a small guide plate, allowing easy use in confined spaces. The energy-efficient motor provides high performance with low air consumption. Produces a smooth finish, eliminating the need for further processing.

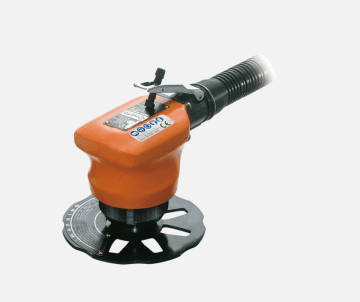

CB-02
Ergonomic pneumatic deburring tool with a rotary head and one four-sided insert. Ideal for straight and curved edges as well as pipes with a minimum radius of 6 mm. Versatile use for sheets, profiles, and edge rounding up to radius R2.

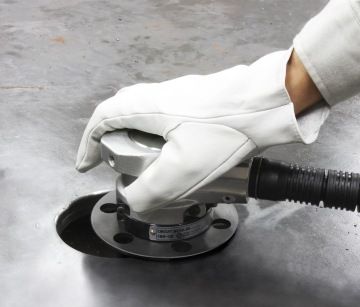

CBR-03
Unique pneumatic beveller designed for edge rounding with radius R3. Operates using a rotary head fitted with a pair of four-sided inserts. Especially suitable for processing steel components in ballast tanks, shipbuilding, and bridge construction.
Optional Accessories
