swifturn

Plate and pipe bevelling machine

  • In variants for pipes with diameters ranging from 254–812 mm and from 610 mm without limitations up to flat plates

  • Adjustment within 3 minutes

  • Beveling at speeds of up to 1 meter per minute -> reduces the working cycle

  • Adjustable beveling angle from 0°–45°

  • Adapts to pipe irregularities, ensuring a constant value and beveling angle

Technical parameters

SWIFTURN 21

Range:

39–104 mm

Range:

from 610 mm

Max. bevel width:

21 mm

Max. bevel width:

21 mm

Bevel angle:

0°–45°

Bevel angle:

0°–45°

Idle speed:

1800–5850 rpm

Idle speed:

1800–5850 rpm

Motor power:

2200 W

Motor power:

2200 W

Voltage:

220–230V (or 110V) 50/60Hz

Voltage:

220–230V (or 110V) 50/60Hz

Number of inserts:

12

Number of inserts:

12

Weight:

8.2 + 7.3 + 9.7 kg

Weight:

13.5 + 7.3 + 9.7 kg

SWIFTURN 42

Range:

39–104 mm

Range:

from 610 mm

Max. bevel width:

42 mm

Max. bevel width:

42 mm

Bevel angle:

0°–45°

Bevel angle:

0°–45°

Idle speed:

1800–5850 rpm

Idle speed:

1800–5850 rpm

Motor power:

2200 W

Motor power:

2200 W

Voltage:

220–230V (or 110V) 50/60Hz

Voltage:

220–230V (or 110V) 50/60Hz

Number of inserts:

24

Number of inserts:

24

Weight:

8.2 + 7.3 + 9.7 kg

Weight:

13.5 + 7.3 + 9.7 kg

swifturn

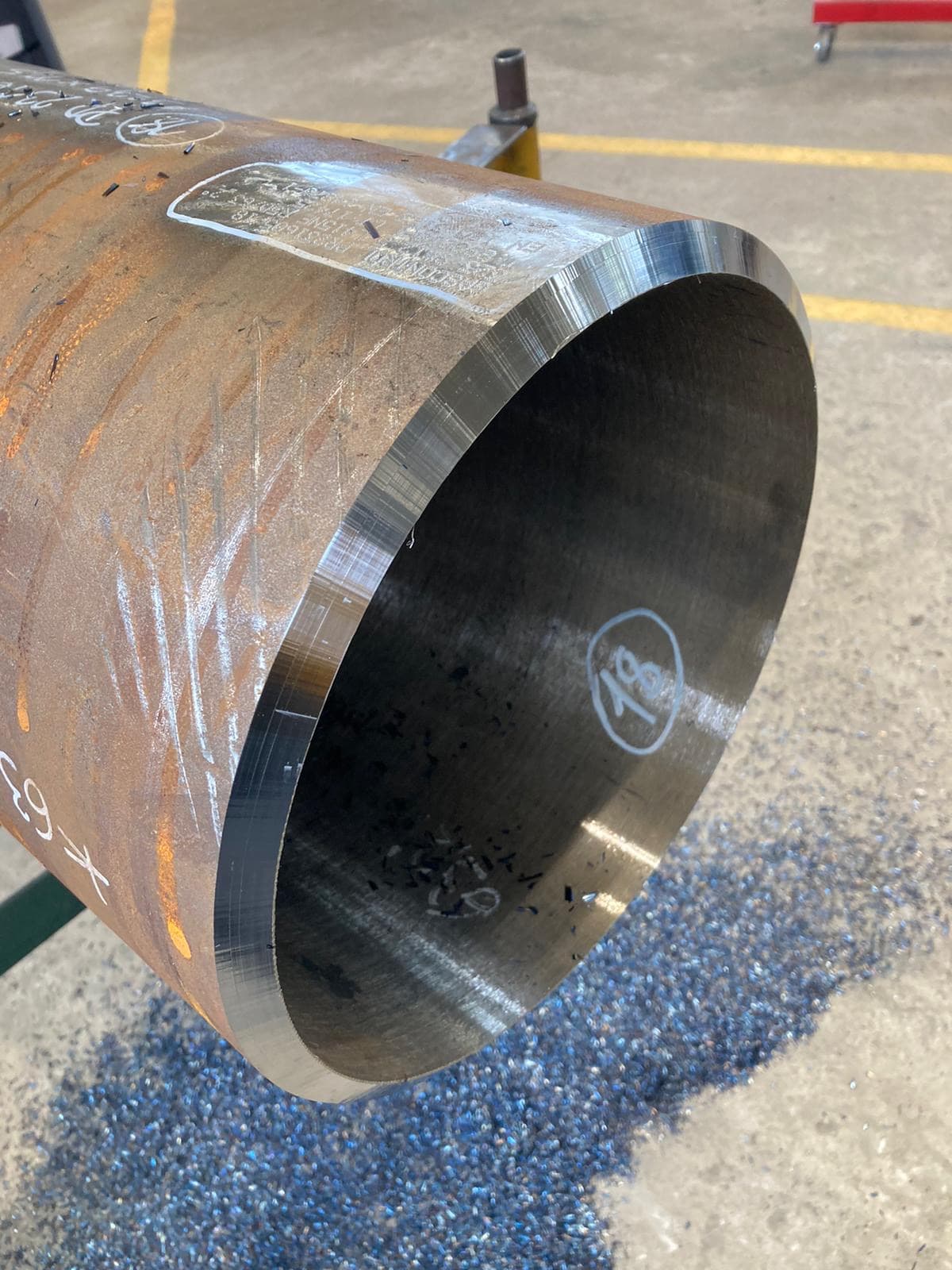

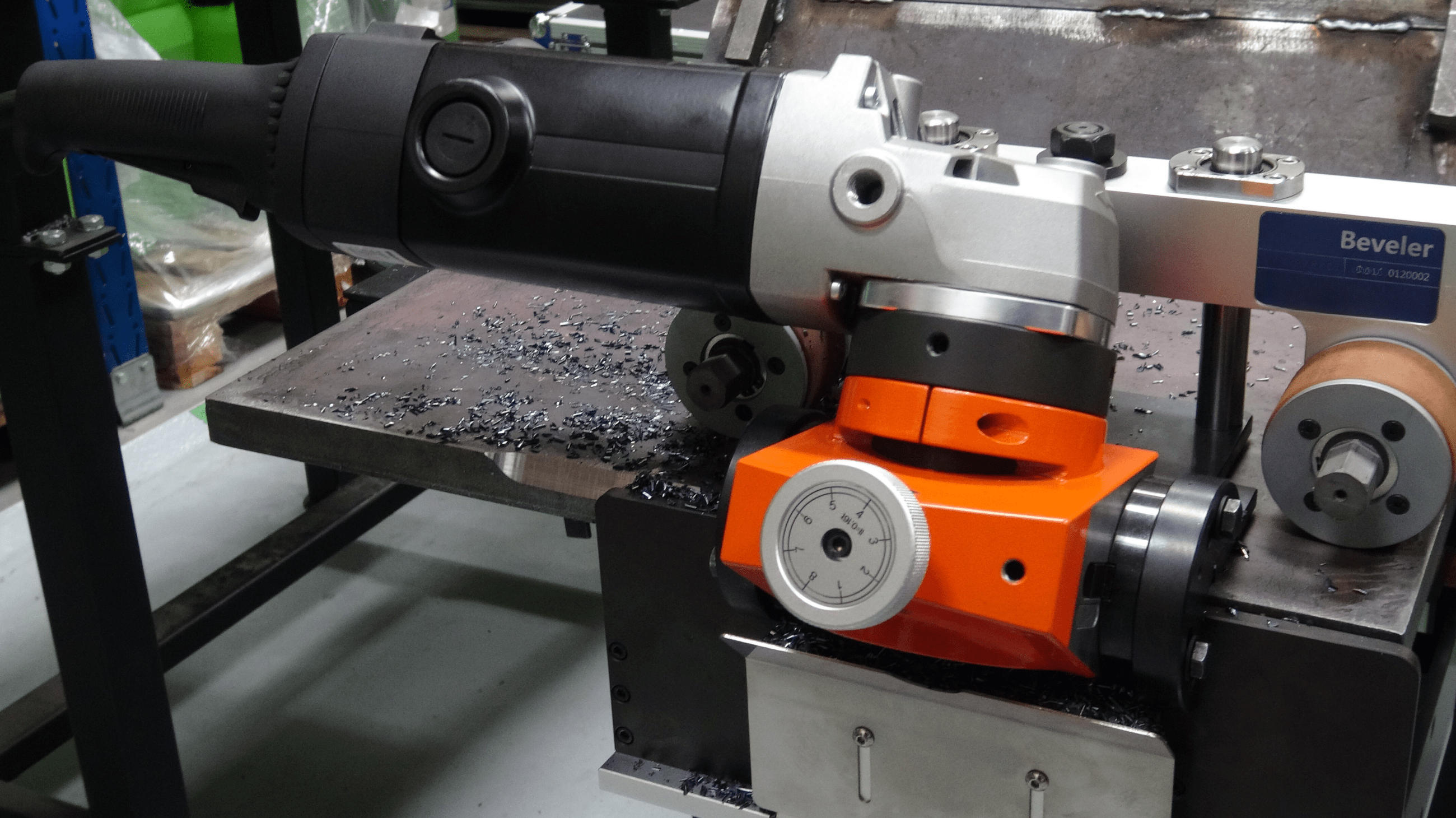

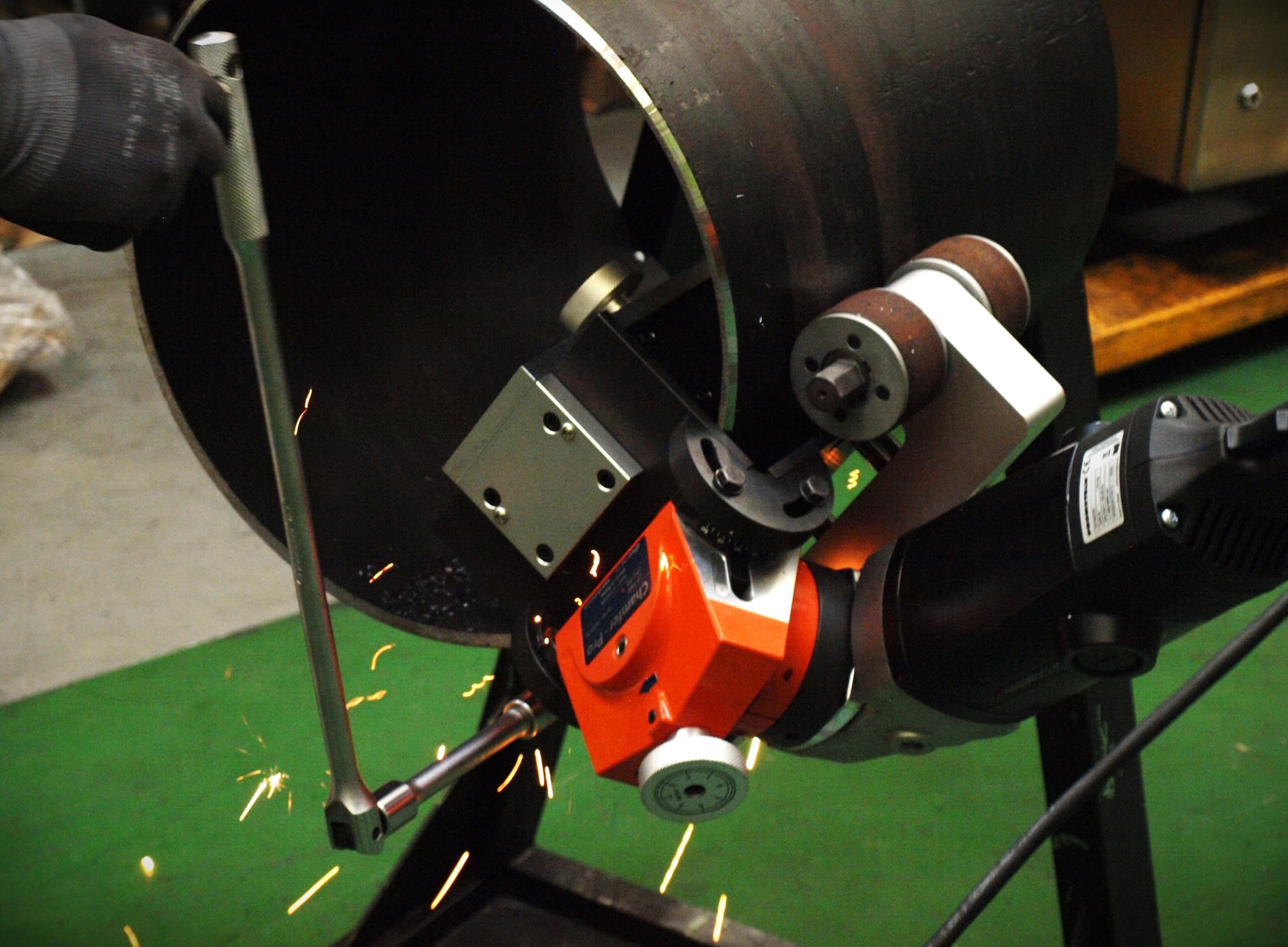

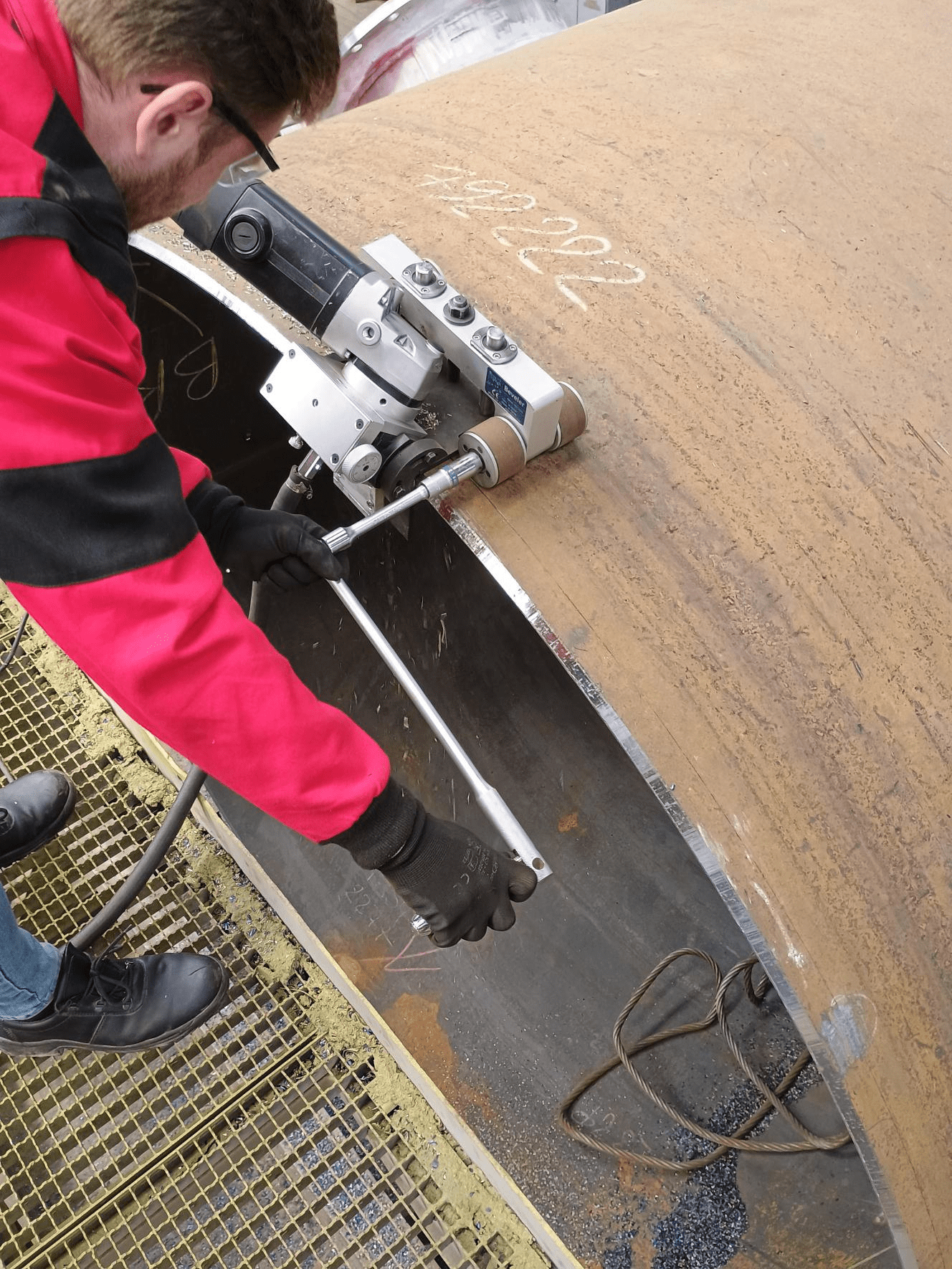

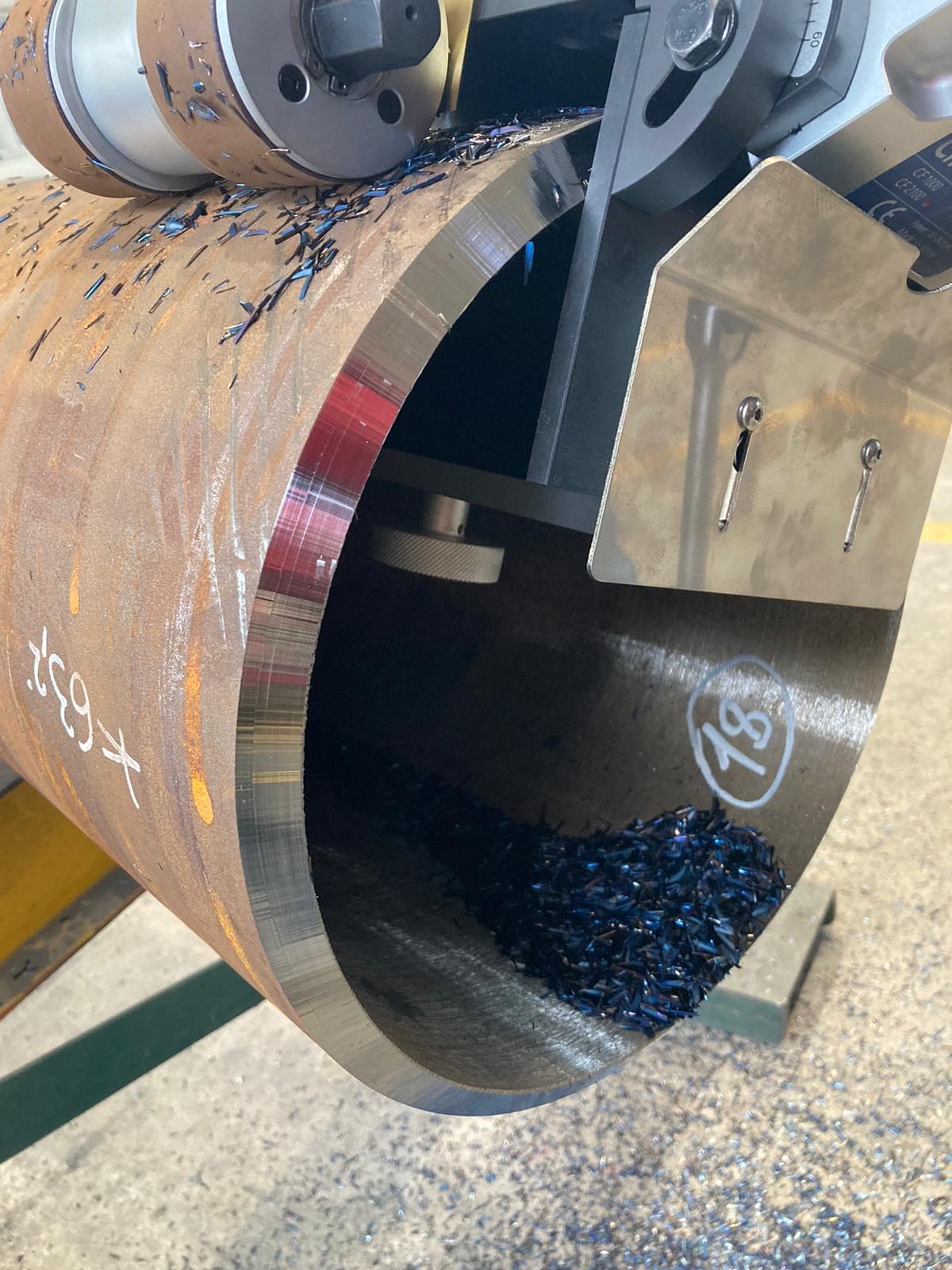

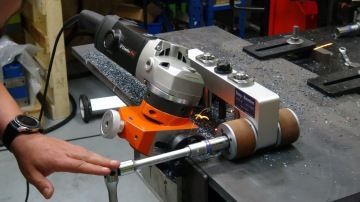

Swifturn is a pipe and plate beveling machine, ideal for very fast and precise beveling. It is available in two versions, one for pipes with diameters from 254 mm to 813 mm and the other for larger pipes from 610 mm and above, up to flat sheets. Swifturn allows for quick setup within 3 minutes and can bevel pipes at a speed of up to 1 m/min. Thanks to its easy and safe operation, it is the ideal solution for a wide range of tasks. The machine offers a continuously adjustable bevel angle and is equipped with a powerful motor, ensuring efficient and precise beveling.
