Easy bevelling angle adjustment
Capability to bevel the bottom side of the plate
High bevelling speed
Bevelling of curved plates
Possibility of beveling pipes
Maximum bevel width:
22.5°, 30°, 37.5°, 45°, 55°
1,5 m/min a 3 m/min
Minimum width of bevelled sheet:
400 V/50 Hz, 3-phase
Slow-running rotary cut
Net weight of the machine:
SPEDANGLE operates on the principle of a slow-speed rotary cutting tool and performs bevels at angles of 22.5°, 30°, 37.5°, 45°, and 55° on plates with a thickness of 6 to 40 mm. The bevel angle can be easily adjusted without the need for additional accessories. Depending on the angle, the maximum bevel width on carbon steel is 18 mm, while on stainless steel, it is 15 mm. The machine operates quietly.

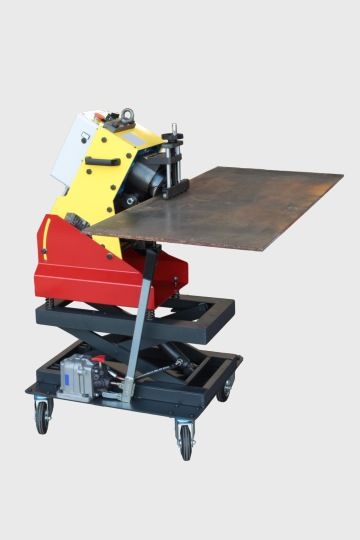

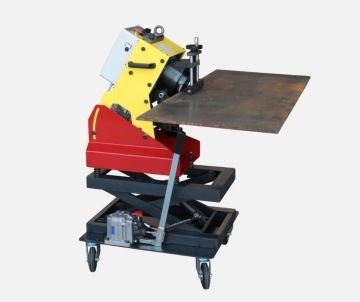

The self-locking clamping system allows for beveling both large plate sheets and smaller parts. For smaller plates, the machine automatically feeds the plate through the beveling unit during the process. For larger plates, the machine moves along the beveled edge. The beveling speed can be set to 1.5 m/min or 3 m/min as needed. SPEDANGLE can be used for beveling some convex or concave curved edges of plates, and it can also bevel pipes with an internal diameter of 125 mm.

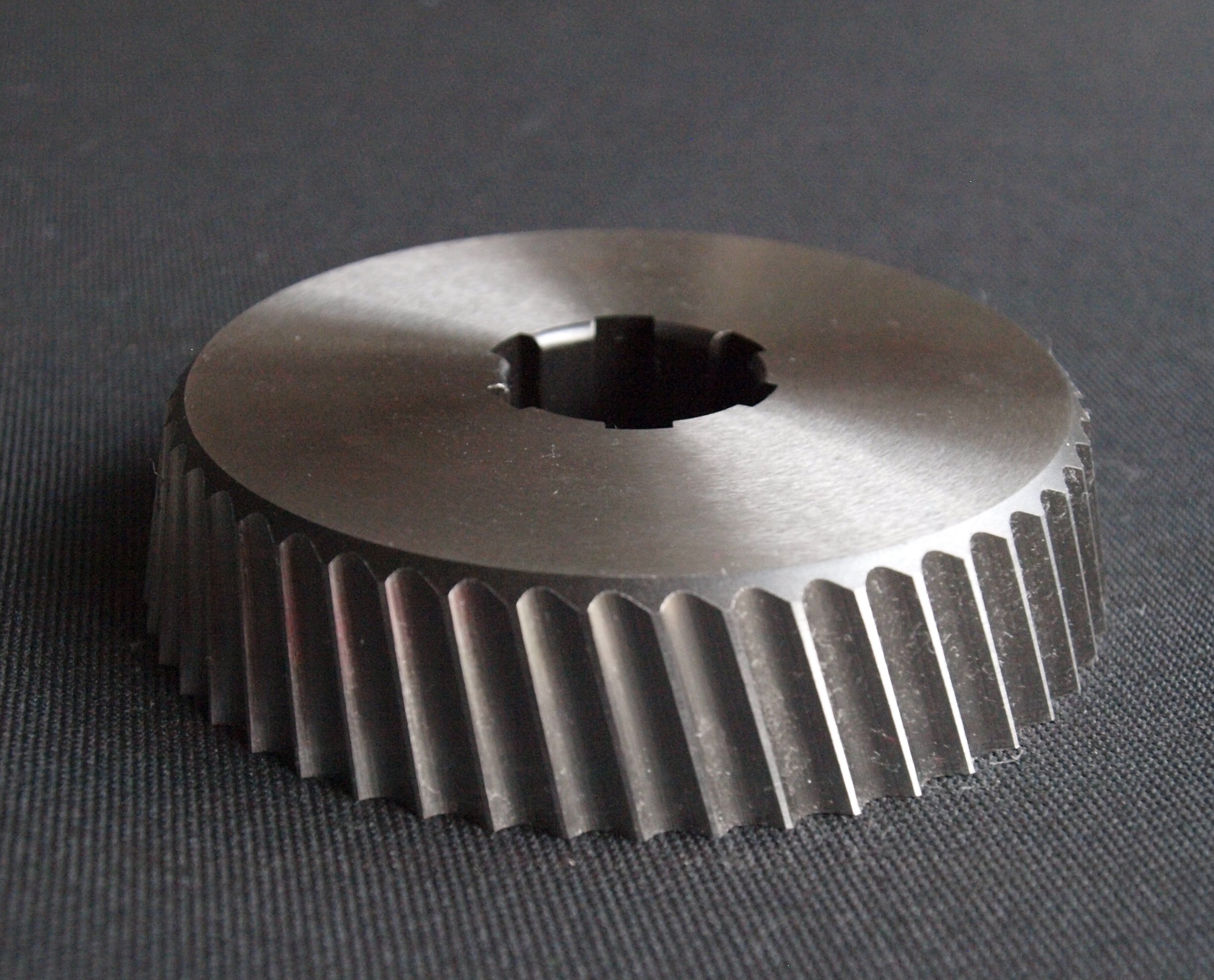

The tool has a conical shape and can be repeatedly sharpened flat. The lifespan of the cutter depends on the hardness of the material being processed and the length of the workpieces. With a tensile strength of 40 kg/mm², the cutter's lifespan (based on practical experience) is around 1000-2000 m, depending on the average length of the workpieces. When processing longer workpieces, the lifespan of the cutter is significantly higher.

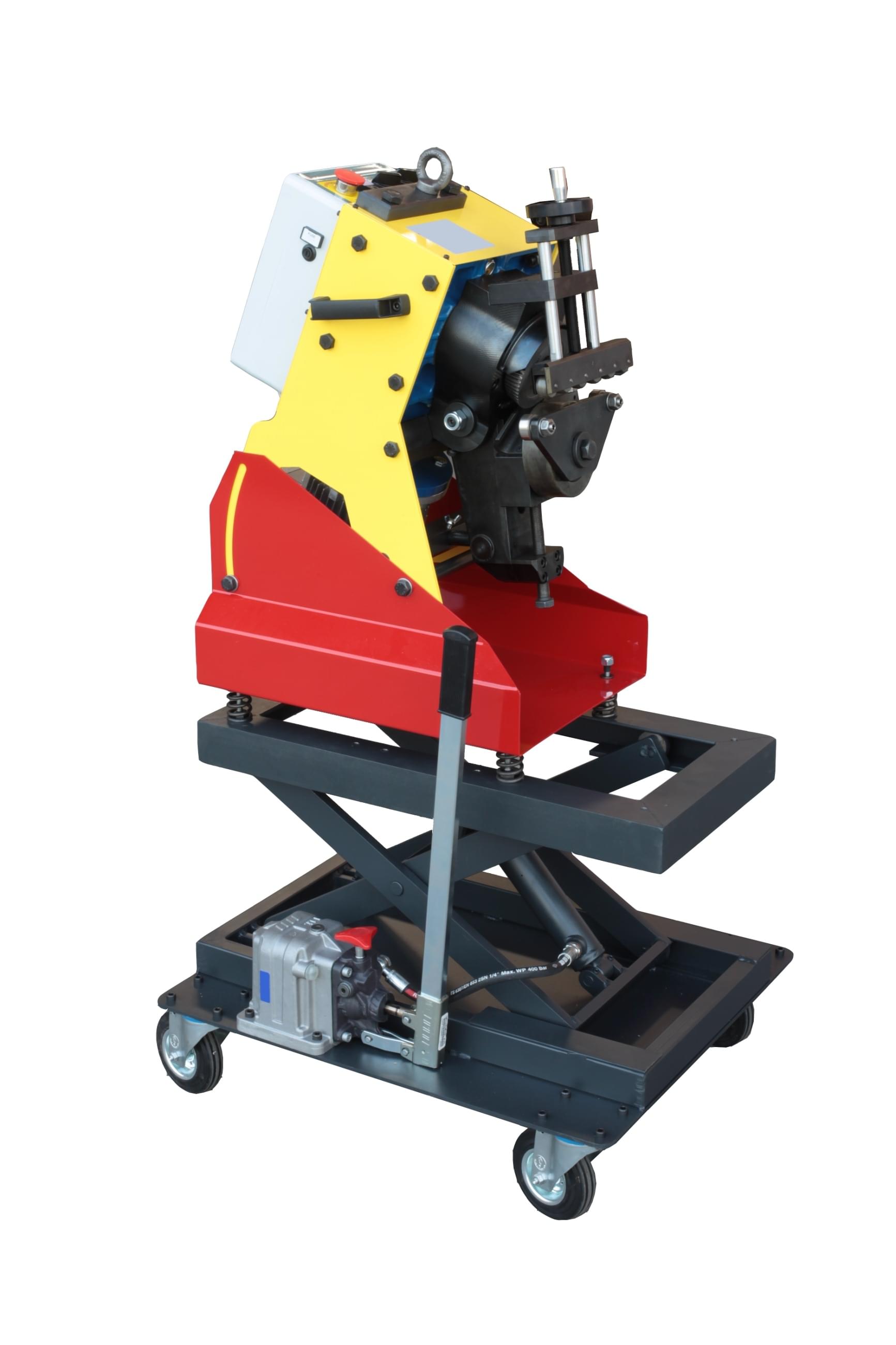

Another version of the machine is SPEDANGLE with a rotator. When using the rotator, a single machine can be used for beveling the upper and then the lower side of the plate, and the working height of the machine can also be adjusted.
