gredger
Powerful, Portable & Versatile: Engineered for a wide range of grinding tasks, while ensuring easy transport and setup
Back Gouging: Efficient removal of welding root for cleaner welds
Welding Seam Preparation: Quick removal of excess material from welding seams
Surface Preparation: Ideal for preparing the welding area through grinding for better weld quality
Polishing Capability: Equipped with a grinding belt unit for smooth polishing of vessels and other surfaces
Technical parameters
Power Supply Voltage: | 400 V |
|---|---|
Main Motor Power: | 9 kW |
Push Motor Power: | 0.37 kW |
Horizontal Motor Power: | 3200 rpm |
Total Power: | 10 kW |
Head Horizontal Stroke: | 160 mm |
Head Push Stroke: | 140 mm |
Grinding Disc Speed : | 3200 rpm |
Grinding disc maximum diameter: | 410 mm |
Grinding Disc Flange Seat : | 60 mm |
Grinding Disc Peripheral Speed: | 65 m/s |
Grinding Disc Available Thickness: | 12/14/16 mm |
Cutting Depth: | 0–120 mm |
Plate Feeding Speed: | 500–2000 mm/min (optimal speed between 1000 and 2000 mm/min) |
Continuous Sound Level at 2 Meters: | 80/85 db |
Peak Sound Level at 2 Meters | 110/120 db |
Machine weight: | 180 kg |
Weight including trolley: | 500 kg |
GREDGER - Back Gouging Grinder
Back gouging is the process of removing excess weld material from the back side of a weld joint. Properly executed back gouging ensures complete weld fusion at the root side of the weld.

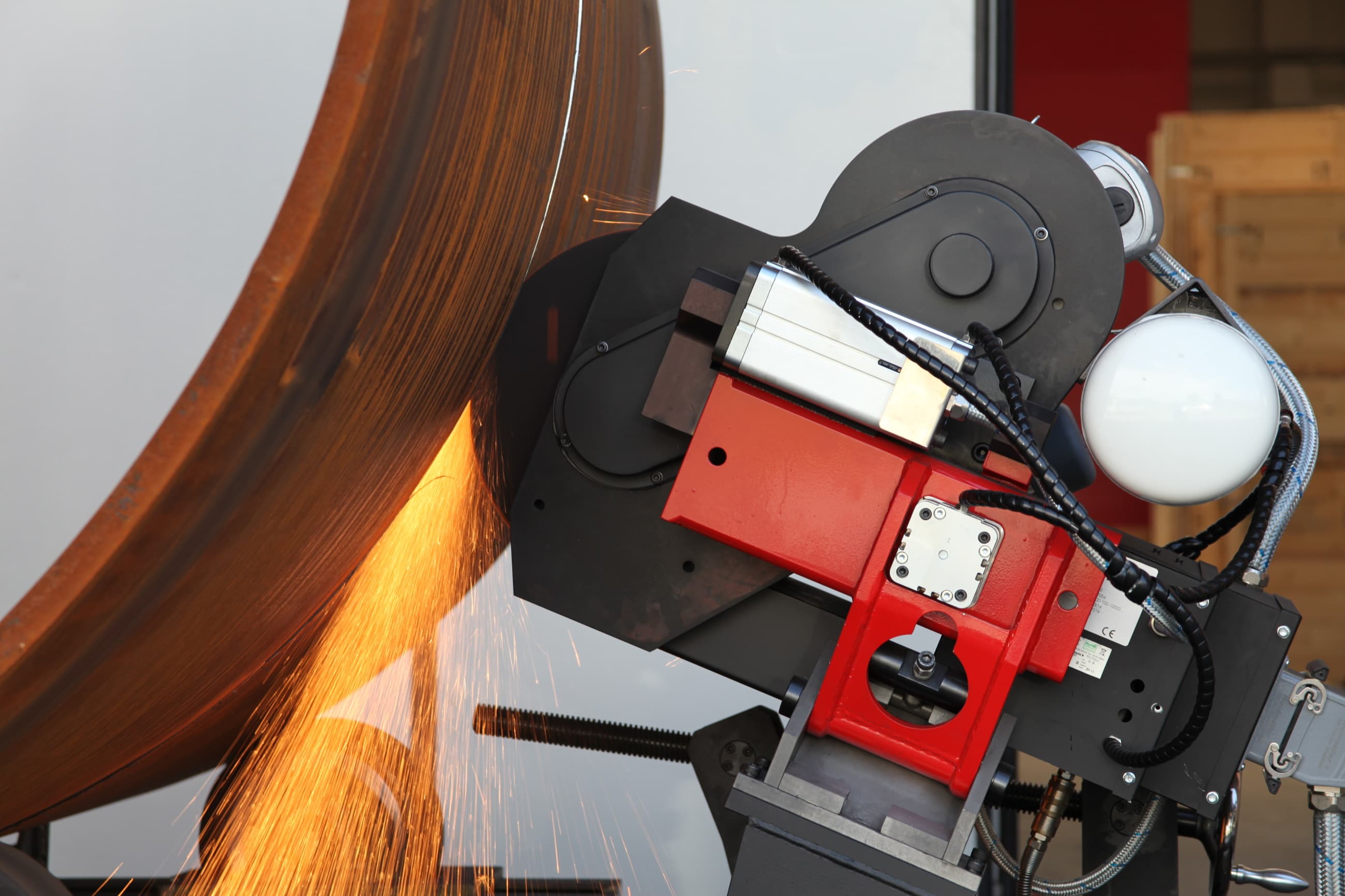

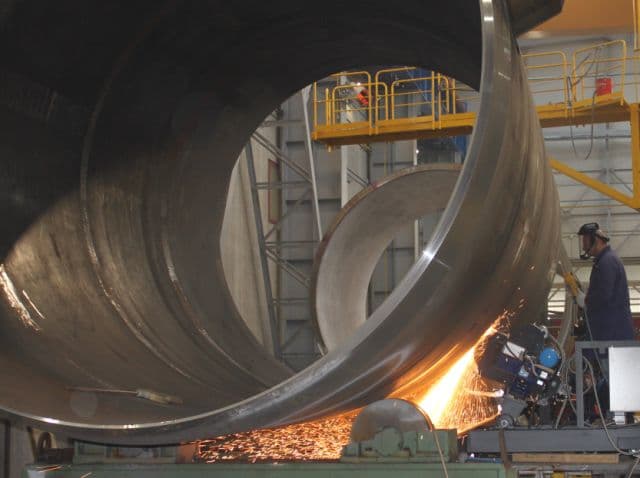

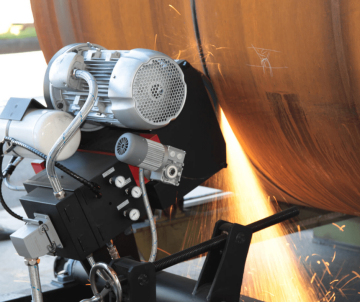

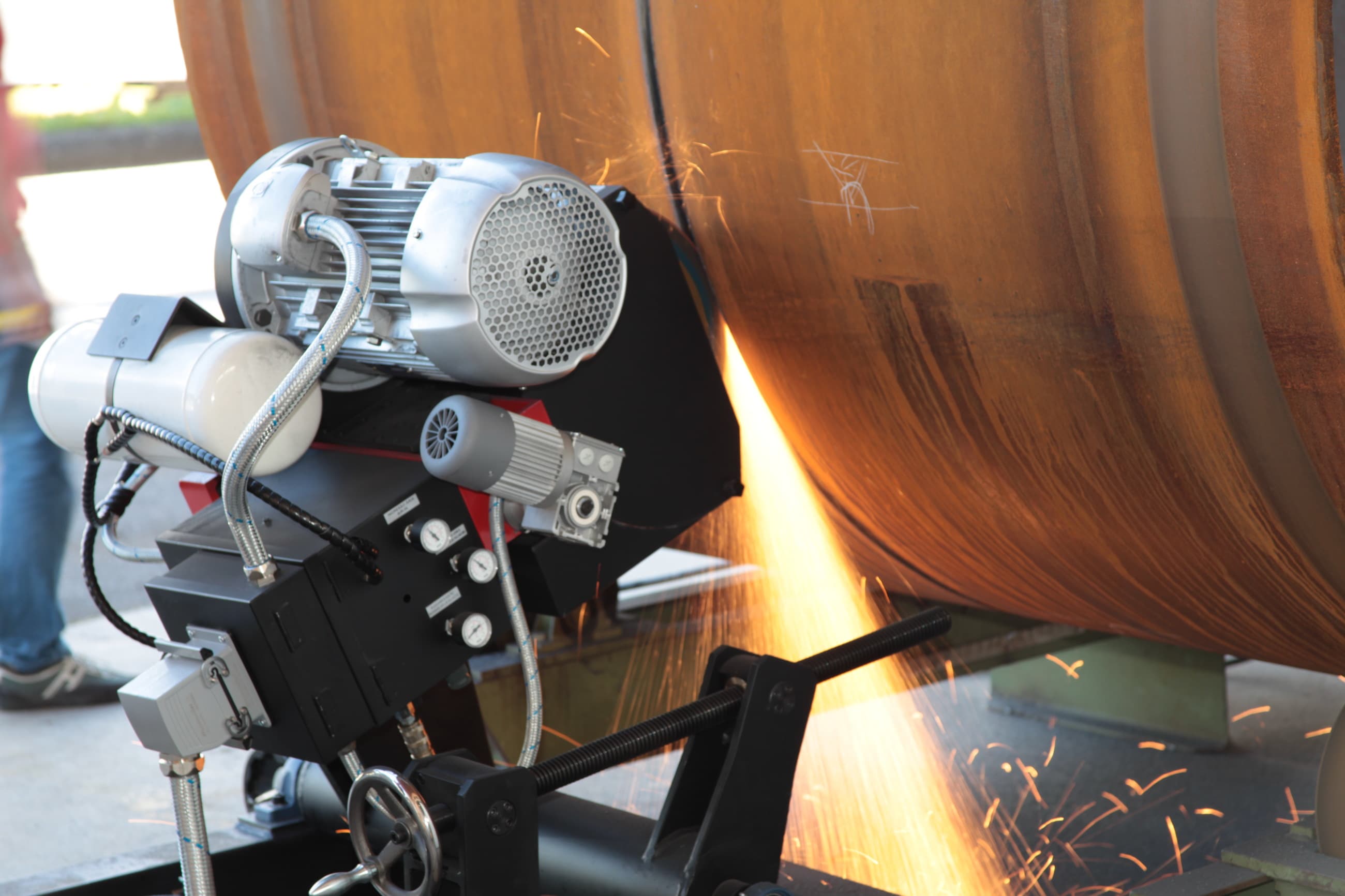

The GREDGER Back Gouging Grinder delivers precise back gouging, cleaning the weld area without the hazardous toxic fumes often generated by other methods. At the same time, it significantly reduces the physical strain on operators compared to manual grinding, while greatly increasing productivity.
Intelligent Floating System for Consistent Depth and Accuracy
The GREDGER grinder is equipped with an advanced Intelligent Floating System, electronically controlled to guarantee a consistent gouging depth along the entire weld. This smart system adapts to vessel ovality, maintaining gouging accuracy and ensuring uniform results. In addition, the automatic lateral movement keeps the gouging groove perfectly aligned and the weld seam precisely tracked. This high level of automation not only boosts productivity but also enhances the quality and consistency of weld preparation.
OPtional Accessories

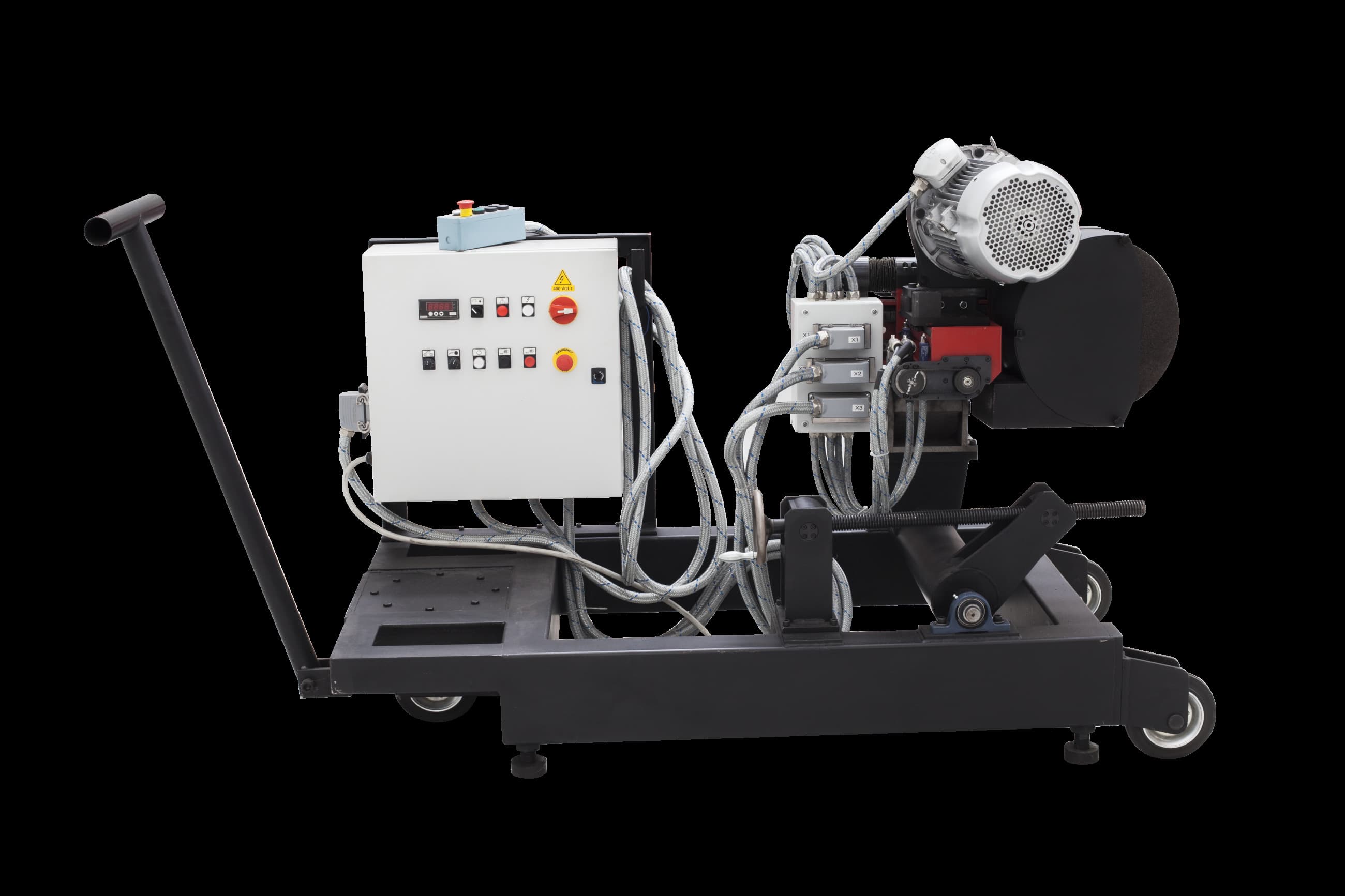

Trolley
Equipment for Longitudinal Back Gouging: setup for manipulator, chain assembly for manipulator
Onboard video camera
Platform with monitor and remote controls
